Installation Procedure

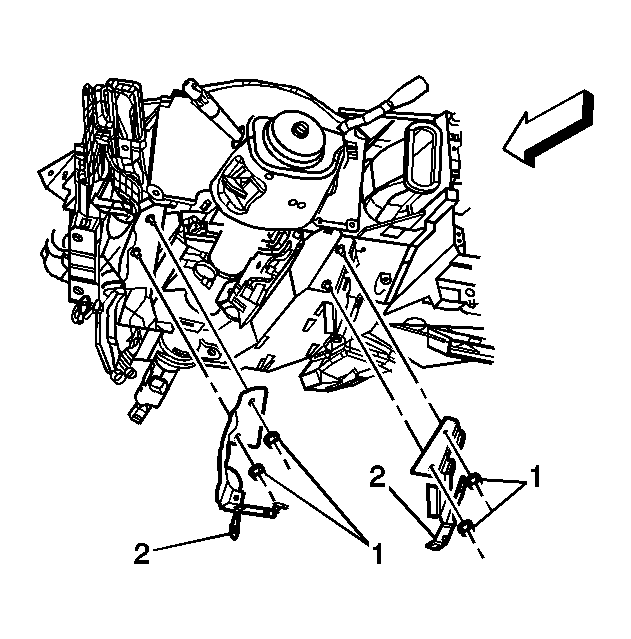

    Fig 1: Left Knee Bolster Bracket & Nuts
    GM859498Courtesy of GENERAL MOTORS CORP.
  1. Align the inner and outer knee bolster brackets (2) to the I/P.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the nuts (1).

    Tighten:  Tighten the nuts to 10 N.m (88 lb in).

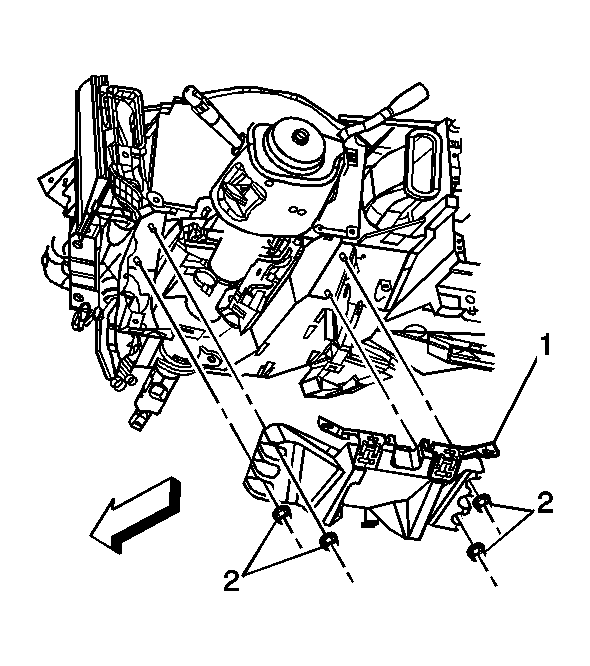

    3. Fig 2: Left Knee Bolster & Nuts
    GM859489Courtesy of GENERAL MOTORS CORP.
  3. Install the knee bolster (1) to the knee bolster brackets.
  4. Install the nuts (2).

    Tighten:  Tighten the nuts to 10 N.m (88 lb in).

  5. Install the knee bolster trim panel. Refer to Knee Bolster Replacement - Left .
