Instrument Panel, Gages, and Console Component Views

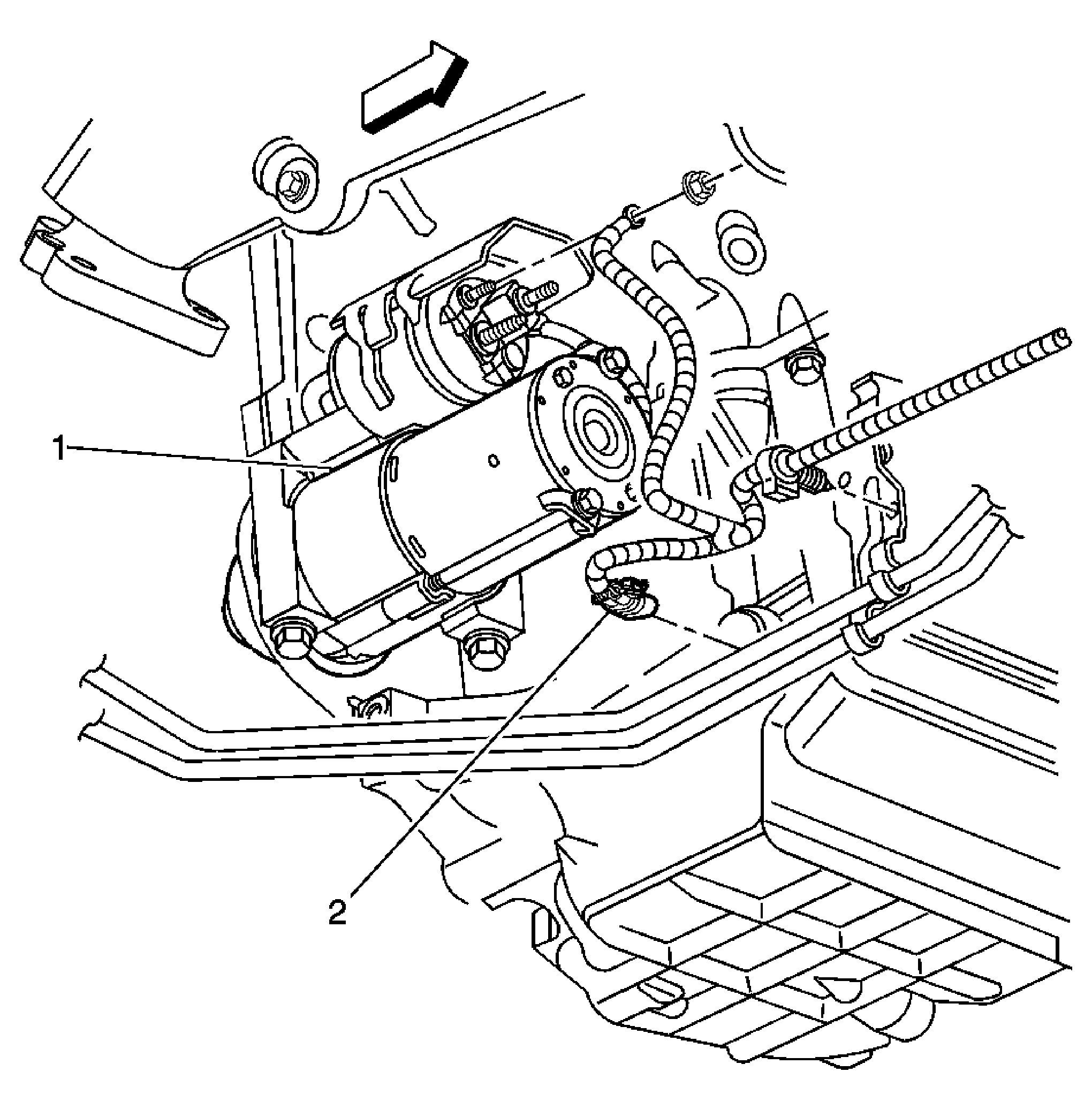

Fig 1: Component View - Right Side Of Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter Motor
2	Engine Oil Level Switch Connector (4.8L/5.3L/6.0L)

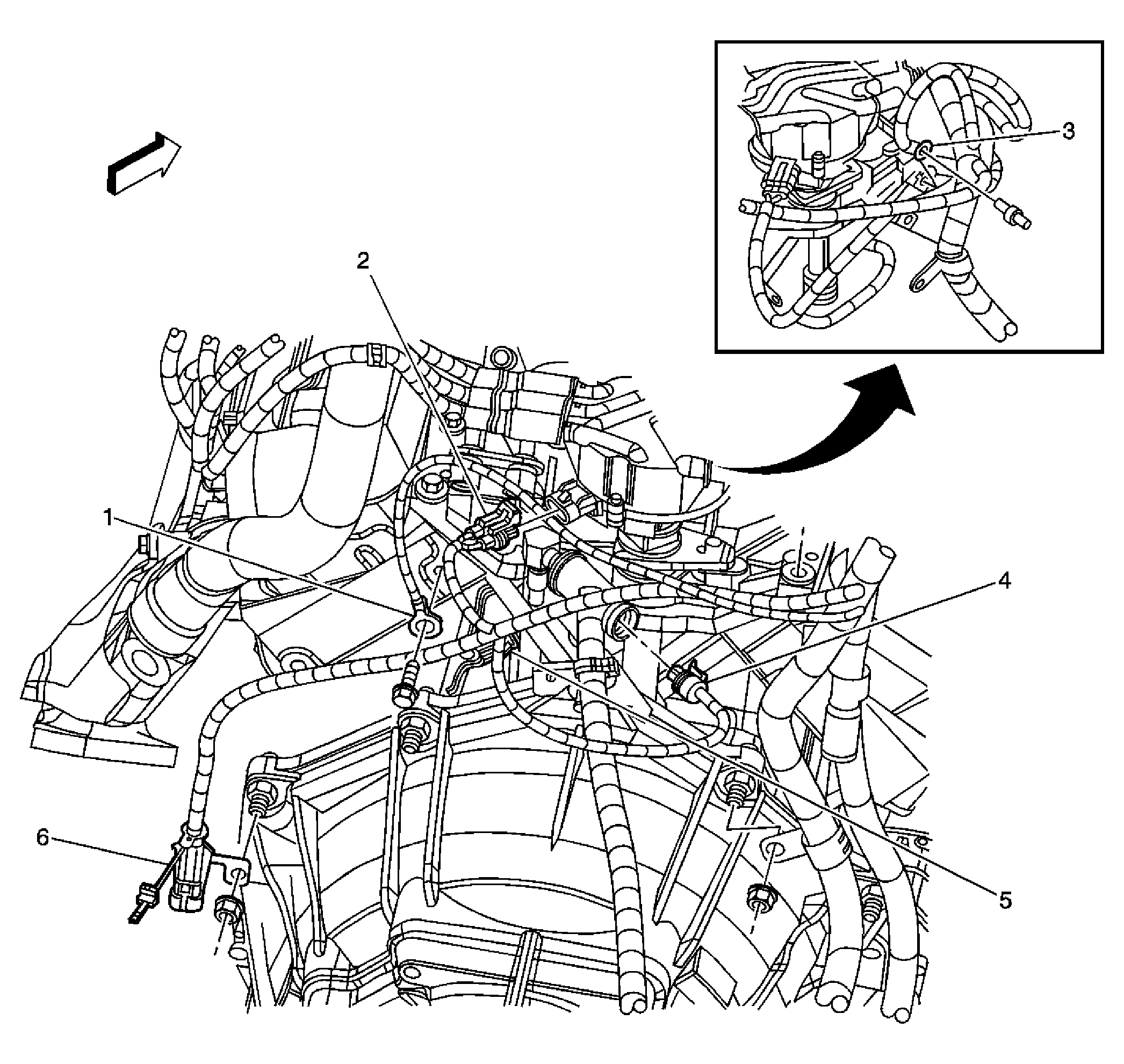

Fig 2: Component View - Engine Harness - Back Of Engine (4.3L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G102
2	Camshaft Position (CMP) Sensor Connector
3	G103
4	Engine Oil Pressure (EOP) Sensor Connector
5	Knock Sensor (KS) Connector
6	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 Connector

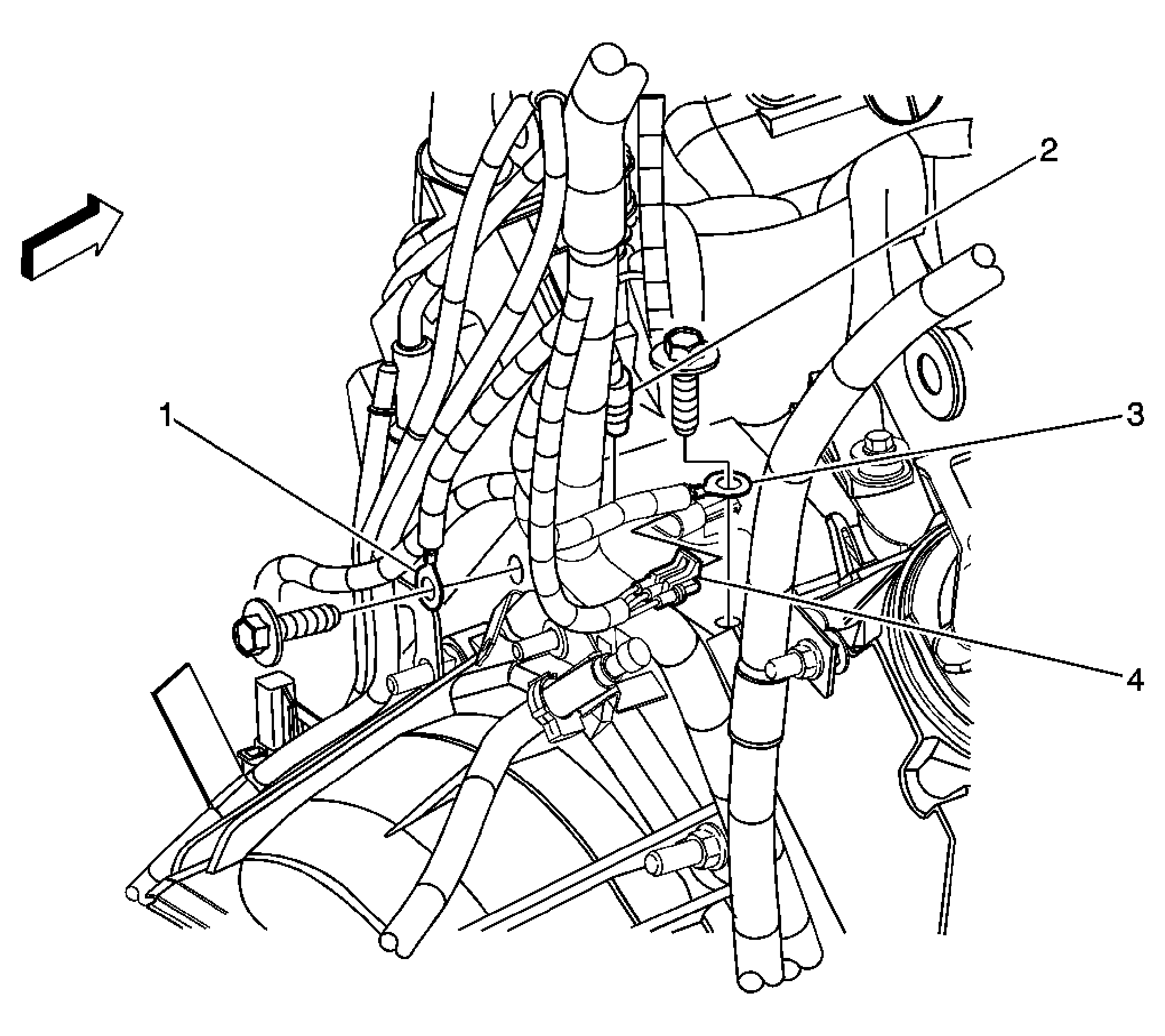

Fig 3: Component View - Engine Harness - Back Of Engine (4.8L/5.3L/6.0L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G102
2	Engine Oil Pressure (EOP) Sensor Connector
3	G103
4	Camshaft Position (CMP) Sensor Connector

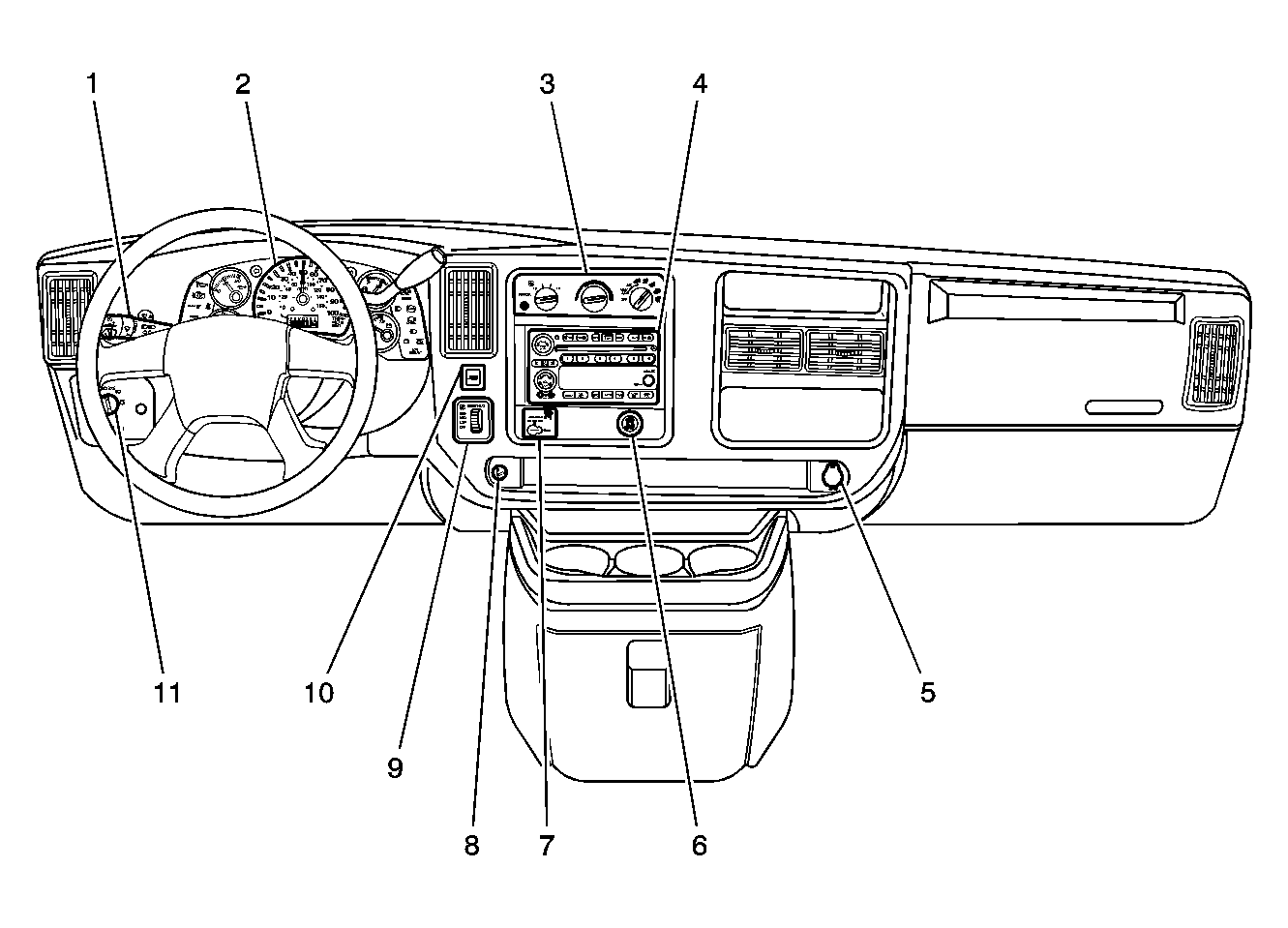

Fig 4: Component View - Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Instrument Panel Cluster (IPC)
3	HVAC Control Assembly
4	Radio
5	Auxiliary Power Outlet 2
6	Traction Control Switch (JL4)
7	Inflatable Restraint I/P Disable Switch (Heavy Duty)
8	Cigar Lighter (DT4)/Auxiliary Power Outlet 1 (w/o DT4)
9	Blower Motor Switch - Auxiliary (C36)
10	Tow/Haul Switch
11	Headlamp and Panel Dimmer Switch

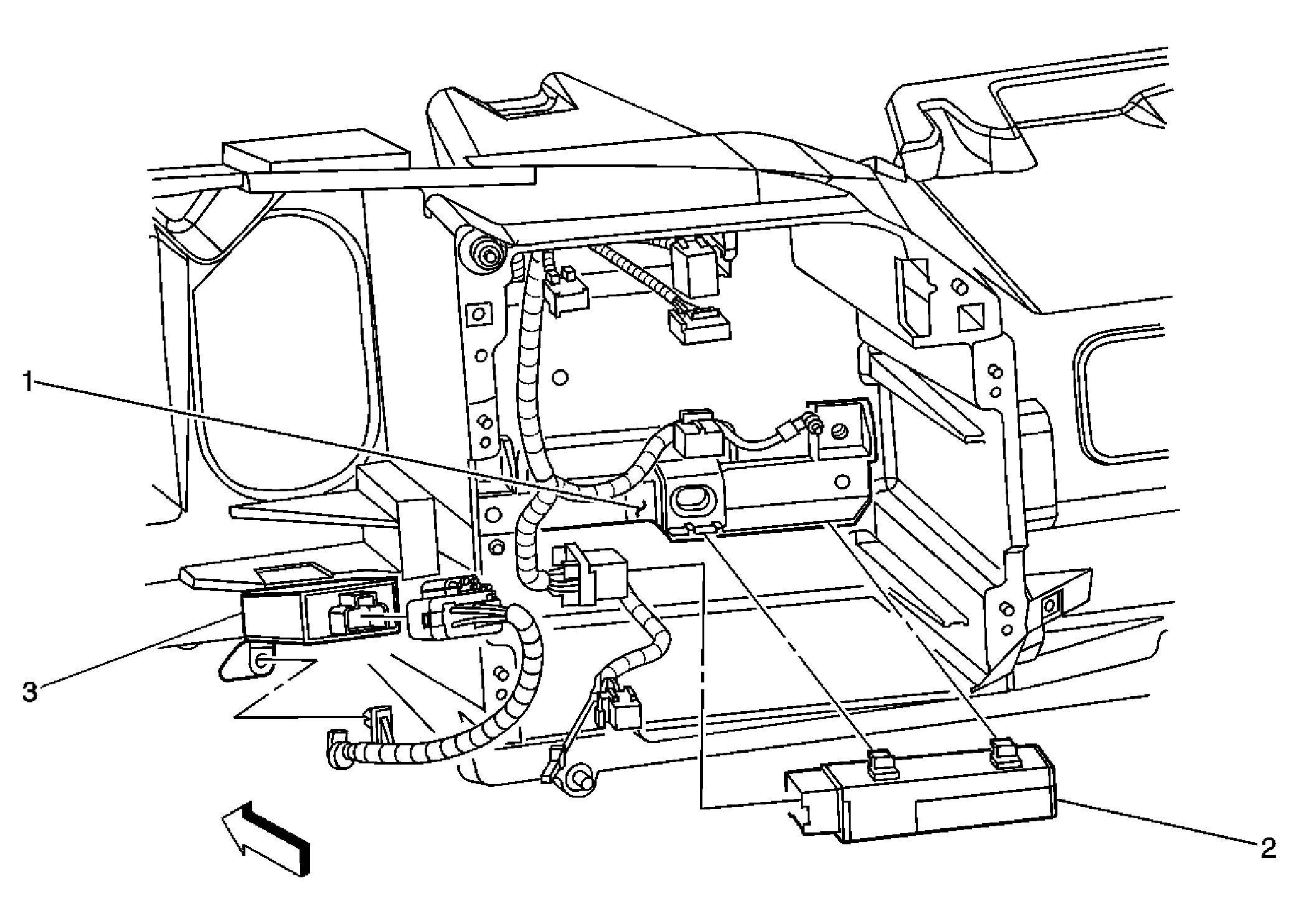

Fig 5: Component View - Center Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Carrier
2	Chime Module (UL5)
3	Turn Signal/Hazard Flasher Module

Fig 6: Component Views - Upper Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passlock Sensor
2	Ignition Key Alarm Switch
3	Ignition Lock Cylinder Control Actuator
4	Ignition Switch
5	Ignition Key Cylinder
6	Horn Switch
7	Inflatable Restraint Steering Wheel Module
8	Turn Signal/Multifunction Switch
9	Hazard Switch

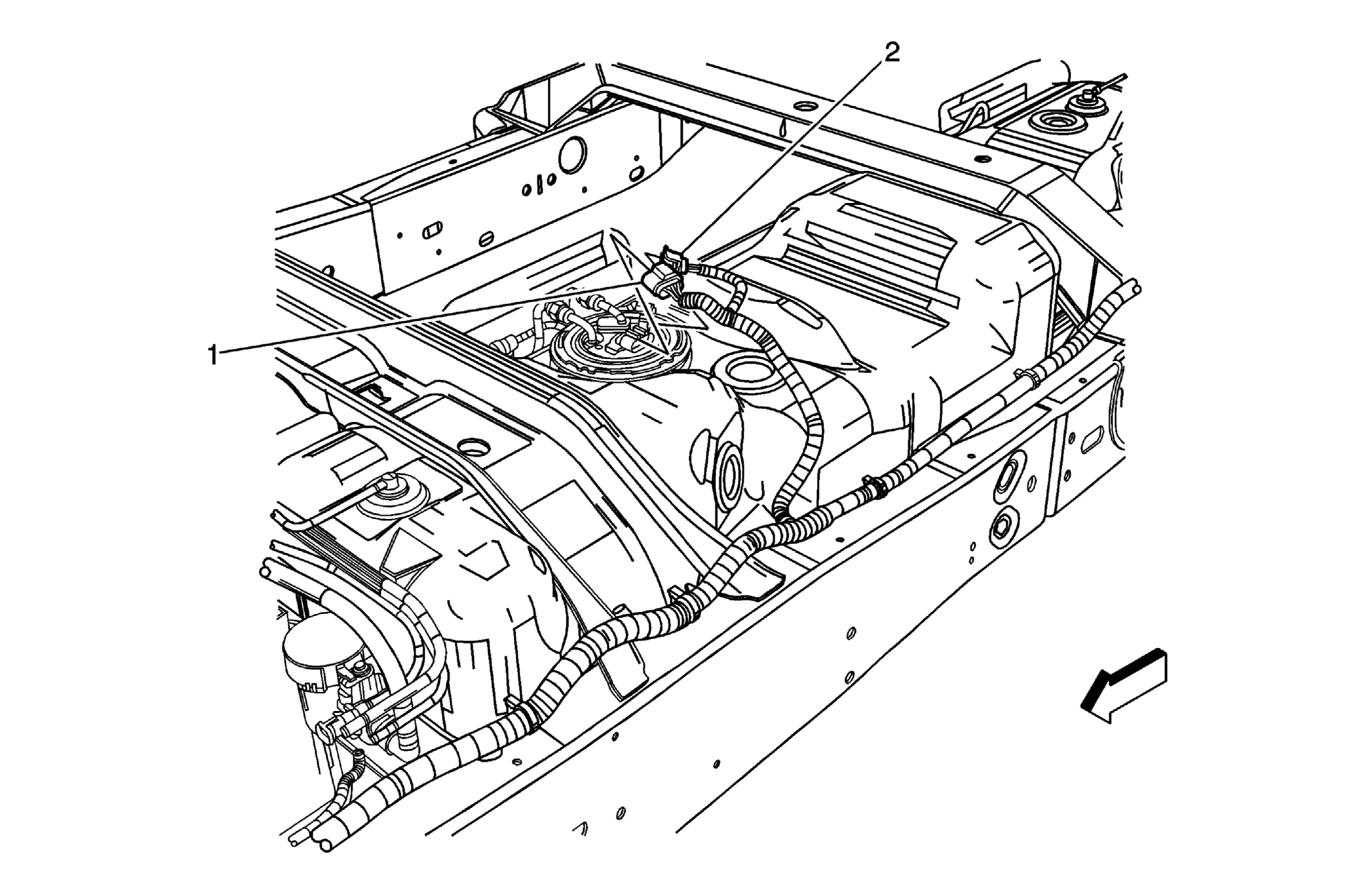

Fig 7: Component View - Fuel Tank (w/o NE7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump and Sender Assembly Connector
2	Fuel Tank Pressure (FTP) Sensor Connector

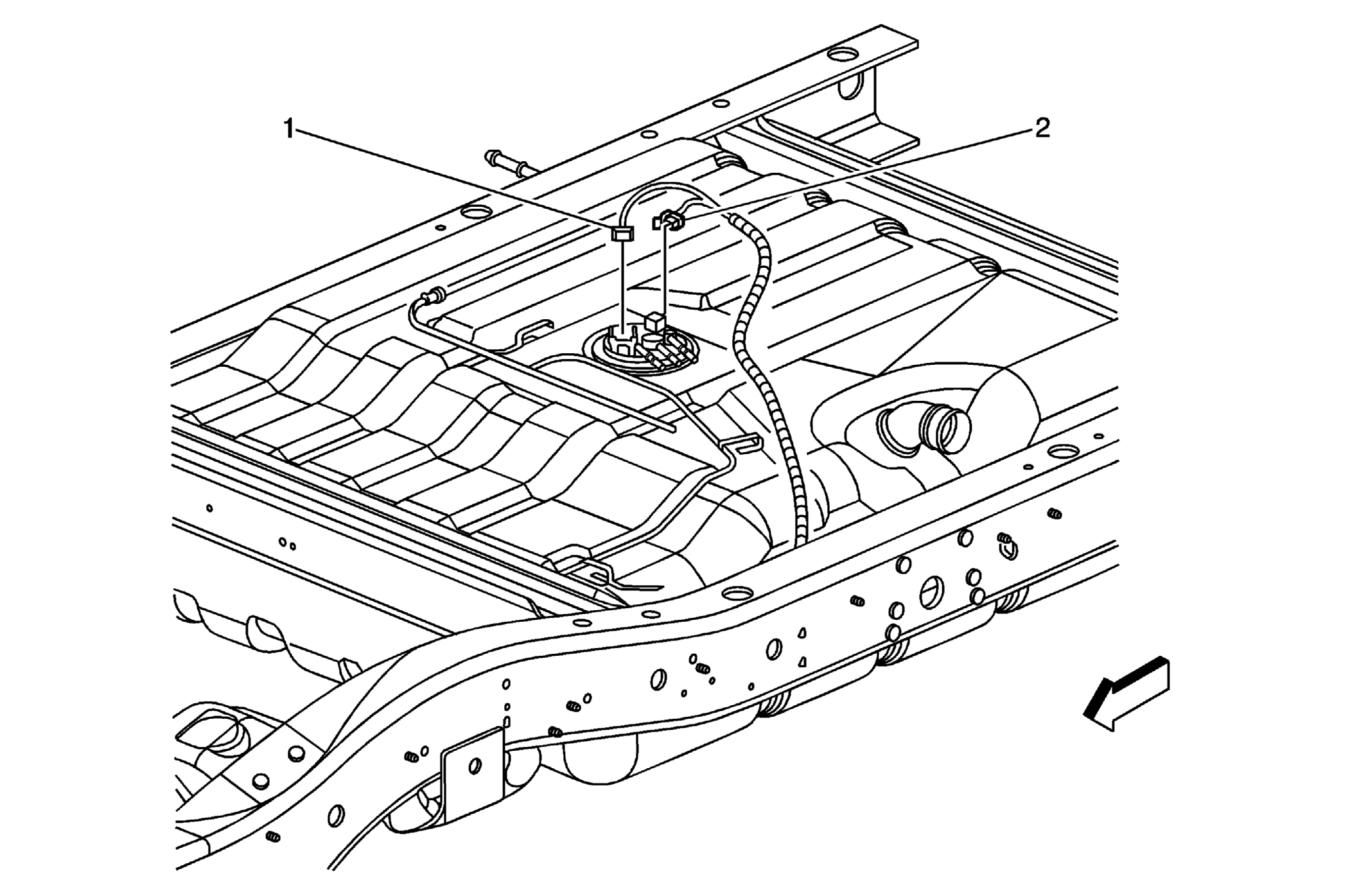

Fig 8: Component View - Fuel Tank (NE7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Pressure (FTP) Sensor Connector
2	Fuel Pump and Sender Assembly Connector
