Chevy Express H1500, Van Passenger
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Schematic and Routing Diagrams
>>
Cruise Control Schematics
Cruise Control Schematics

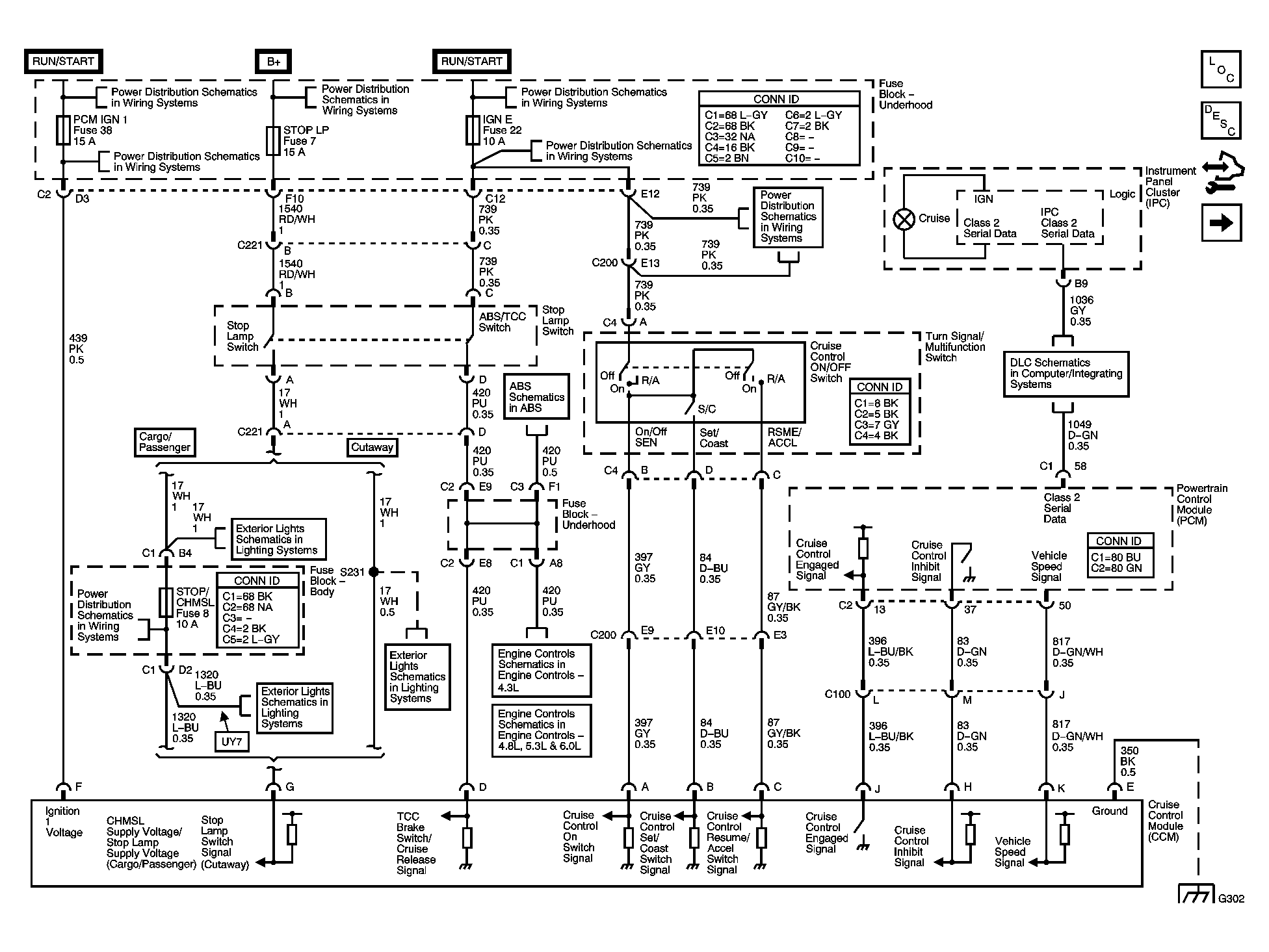

Fig 1: Cruise Control Schematics w/o JL4
Courtesy of GENERAL MOTORS CORP.

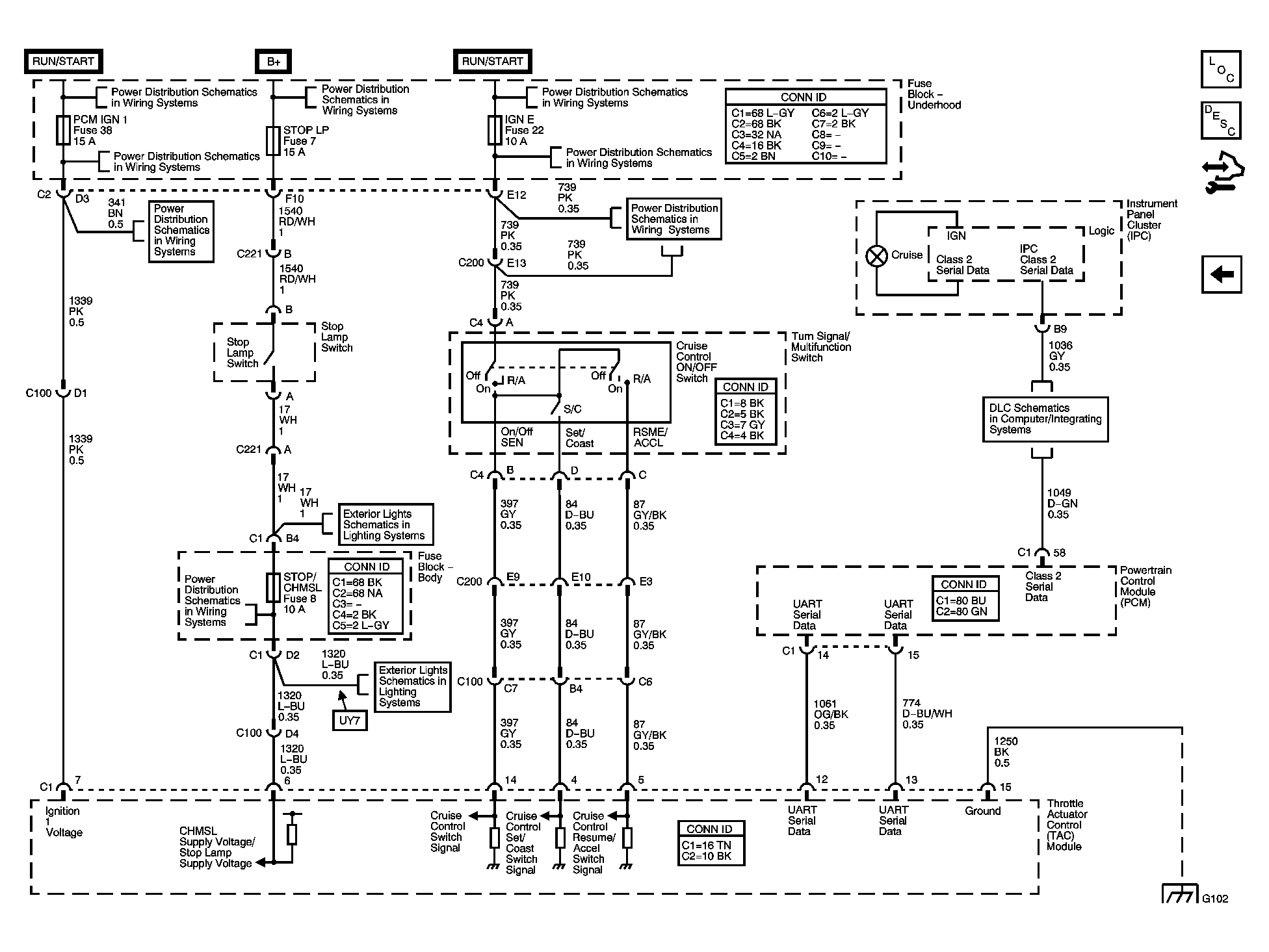

Fig 2: Cruise Control Schematics JL4
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
