Removal Procedure

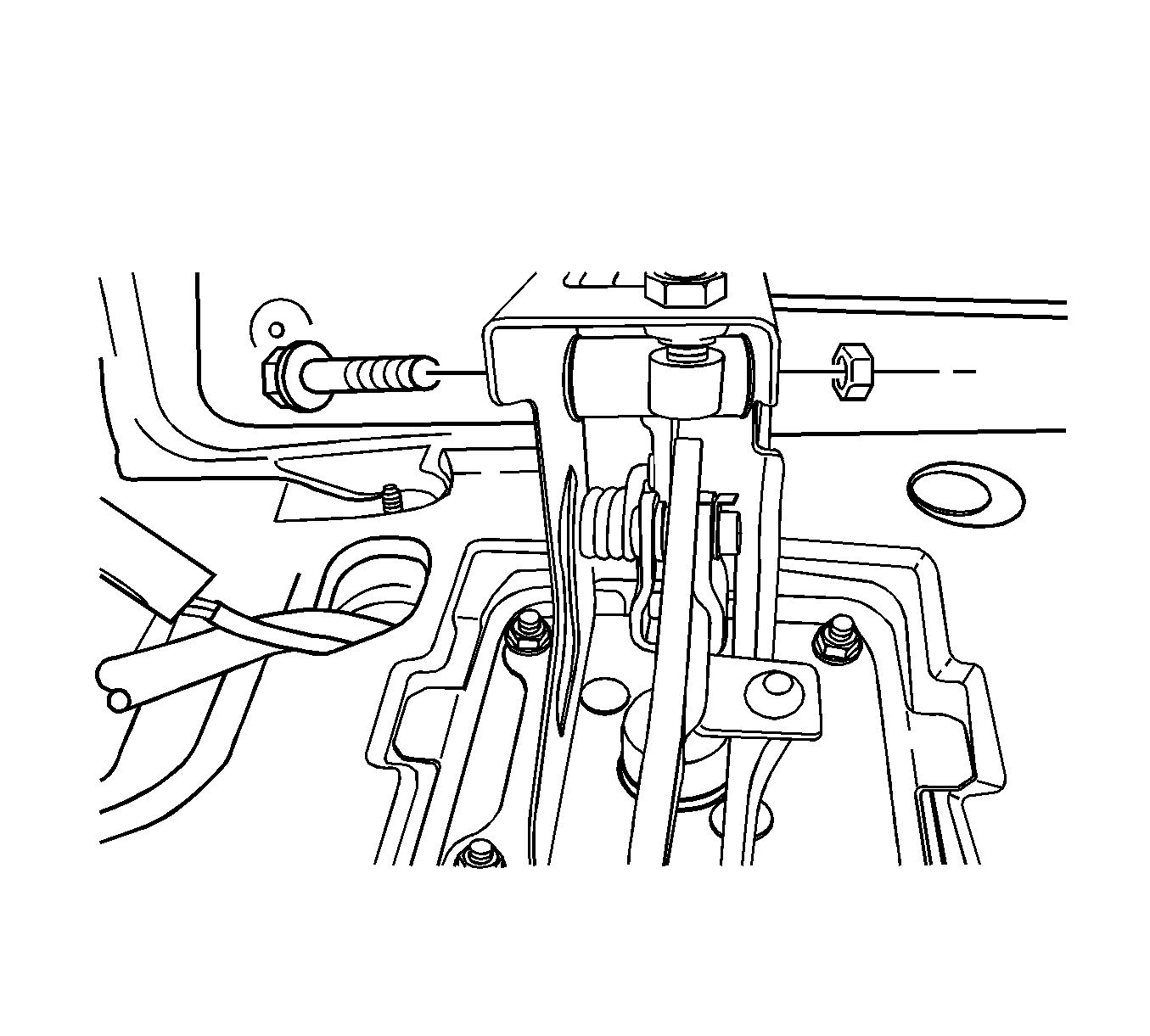

    Fig 1: Pedal Mounting Shaft, Nut & Washer
    GM1251784Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Disconnect the return spring from the clutch pedal.
  3. Remove the nut, the washer, and the pedal mounting shaft.
    4. Fig 2: Push Rod & Clutch Pedal
    GM1251785Courtesy of GENERAL MOTORS CORP.
  4. Remove the locking clip and push rod fixing pin
  5. Remove the push rod from the clutch pedal.
  6. Remove the clutch pedal.
