Installation Procedure

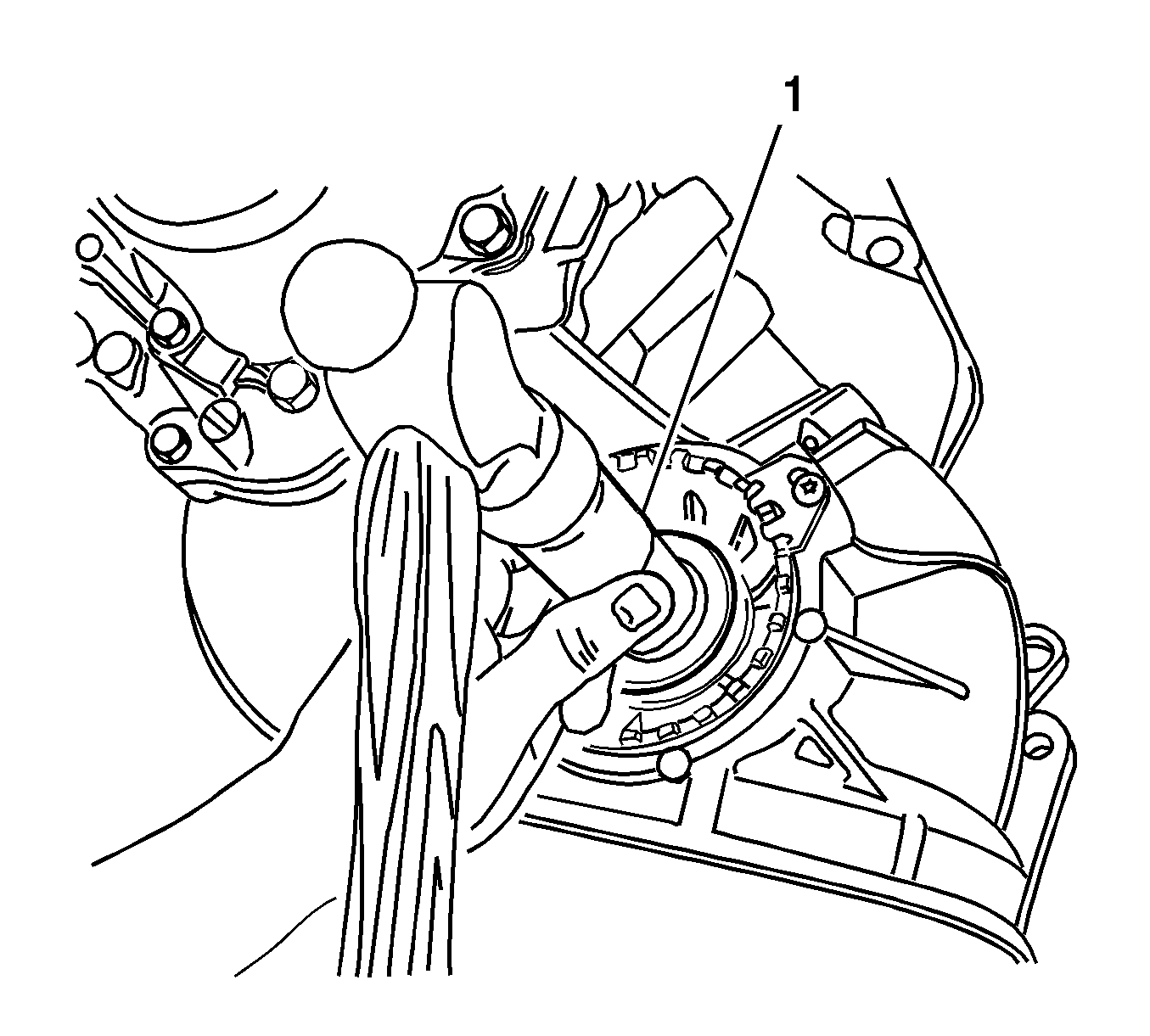

    Fig 1: Installing Drive Axle Seal Using A Hammer & KM-519
    GM1248183Courtesy of GENERAL MOTORS CORP.
  1. Install the new drive axle seal using the KM-519  (1) and a hammer. See Special Tools .
  2. Coat the seal lip with the transaxle fluid.
  3. Install the drive. Refer to Inner Axle Shaft Replacement - Front Drive Axle in Front Drive Axle.
