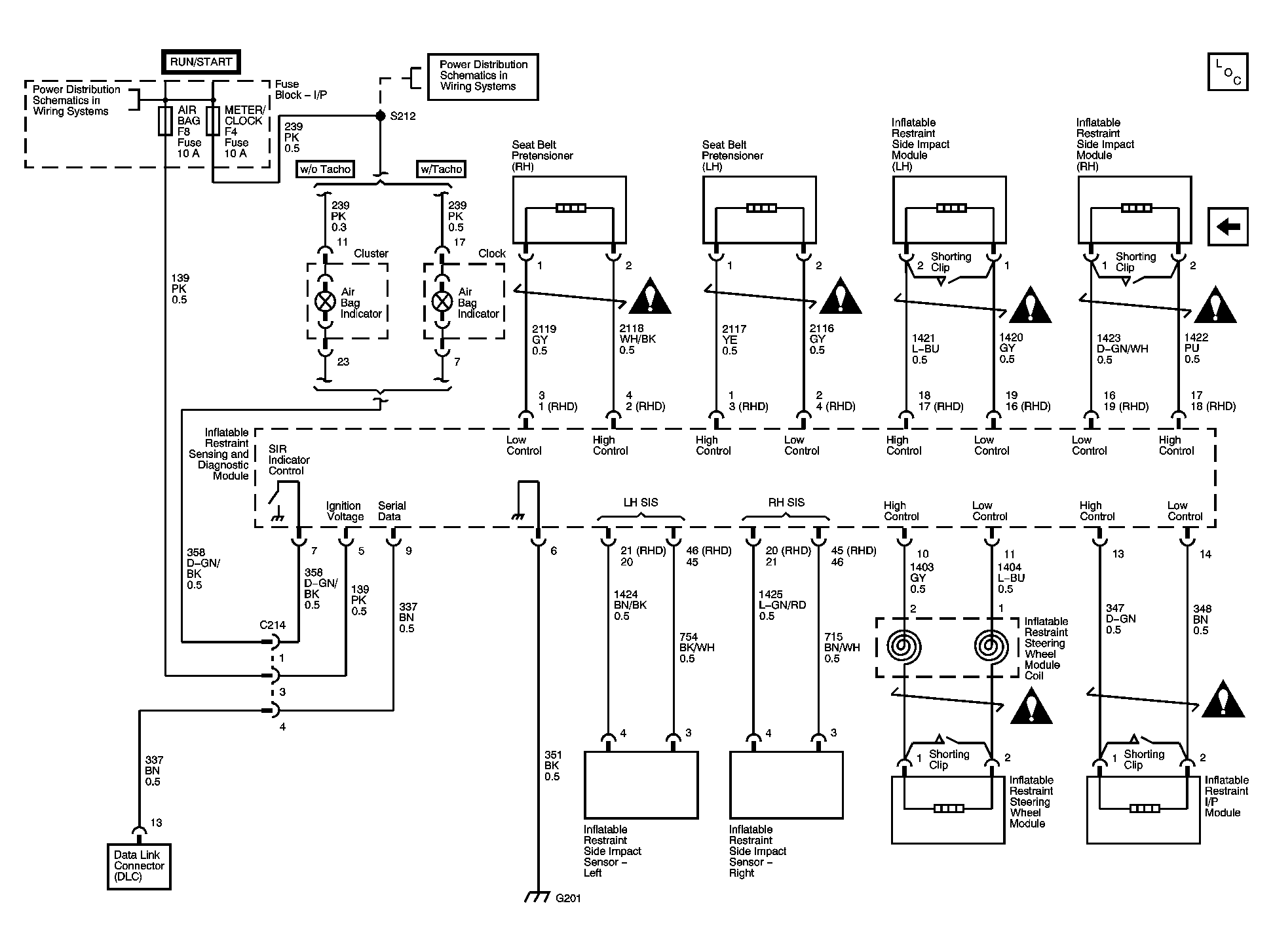

Home >> Chevrolet >> 2005 >> Aveo Base, 4D Hatchback >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Inflatable Restraint System >> Schematic and Routing Diagrams >> SIR Schematics
