Removal Procedure

    Fig 1: Liquid Evaporator Pipe Connector Block & Retaining Nut
    GM1251935Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  3. Remove the liquid evaporator pipe connector block retaining nut at the cowl.
    4. Fig 2: Expansion Valve Connector Block & Retaining Bolts
    GM1251937Courtesy of GENERAL MOTORS CORP.
  4. Remove the expansion valve connector block retaining bolts.
  5. Remove the expansion valve.

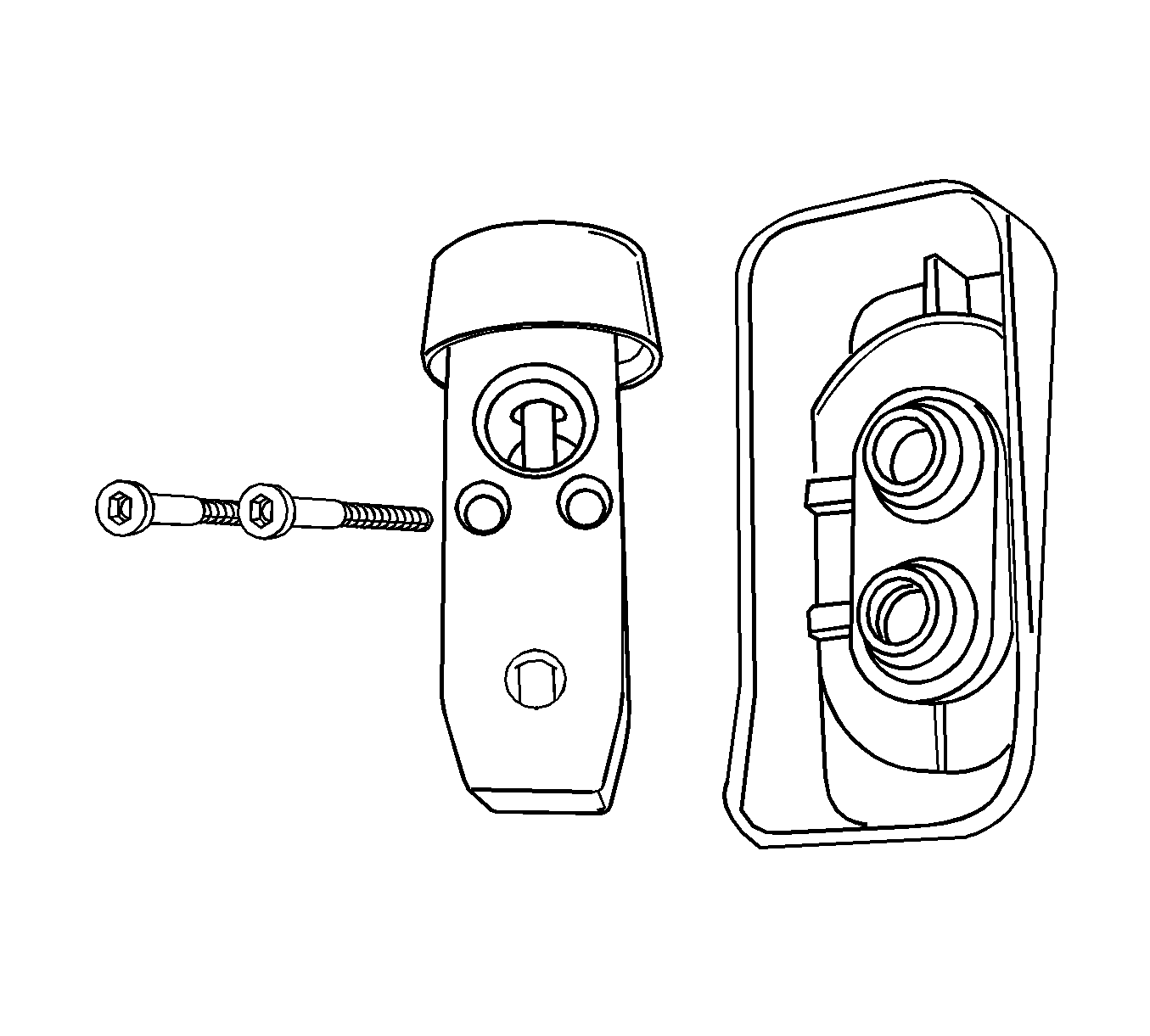

    6. Fig 3: O-Rings & Bolts
    GM1251938Courtesy of GENERAL MOTORS CORP.
  6. Discard the O-rings.
