Clutch Rotor and/or Bearing Install

Tools Required

J 33017  Pulley Rotor and Bearing Assembly Installer. See Special Tools .

J 33019  Bearing Staking Guide/Bearing Staking Pin. See Special Tools .

J 33023-A  Puller Pilot. See Special Tools .

J 42428  Compressor Holding Fixture. See Special Tools .

J 6083 Snap Ring Pliers

J 8092  Driver Handle. See Special Tools .

J 8433-1  Puller Crossbar. See Special Tools .

J 8433-3  Forcing Screw. See Special Tools .

J 9481-A  Bearing Installer. See Special Tools .

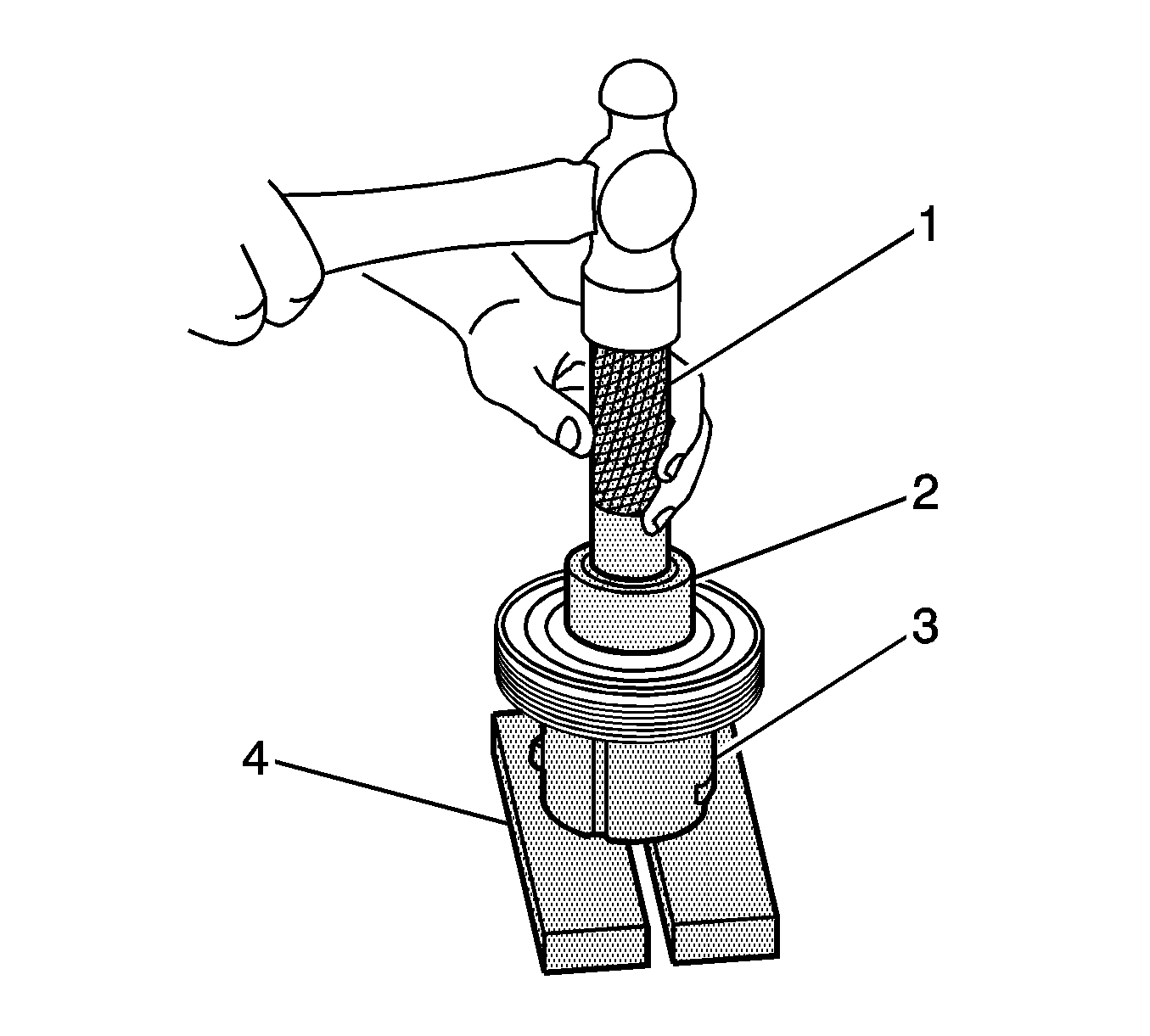

    Fig 1: Driving The Bearing Fully Into Pulley Bore Using J 9481-A & J 8092
    GM1251992Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not support the rotor by resting the pulley rim on a flat surface during the bearing installation or the rotor face could be damaged.
  1. Invert the pulley rotor and place it on a support block to fully support the rotor hub during bearing installation.
  2. Align the new bearing squarely in the pulley bore. Use the J 9481-A  (2) and the J 8092  (1), drive the bearing fully into the pulley bore. See Special Tools .

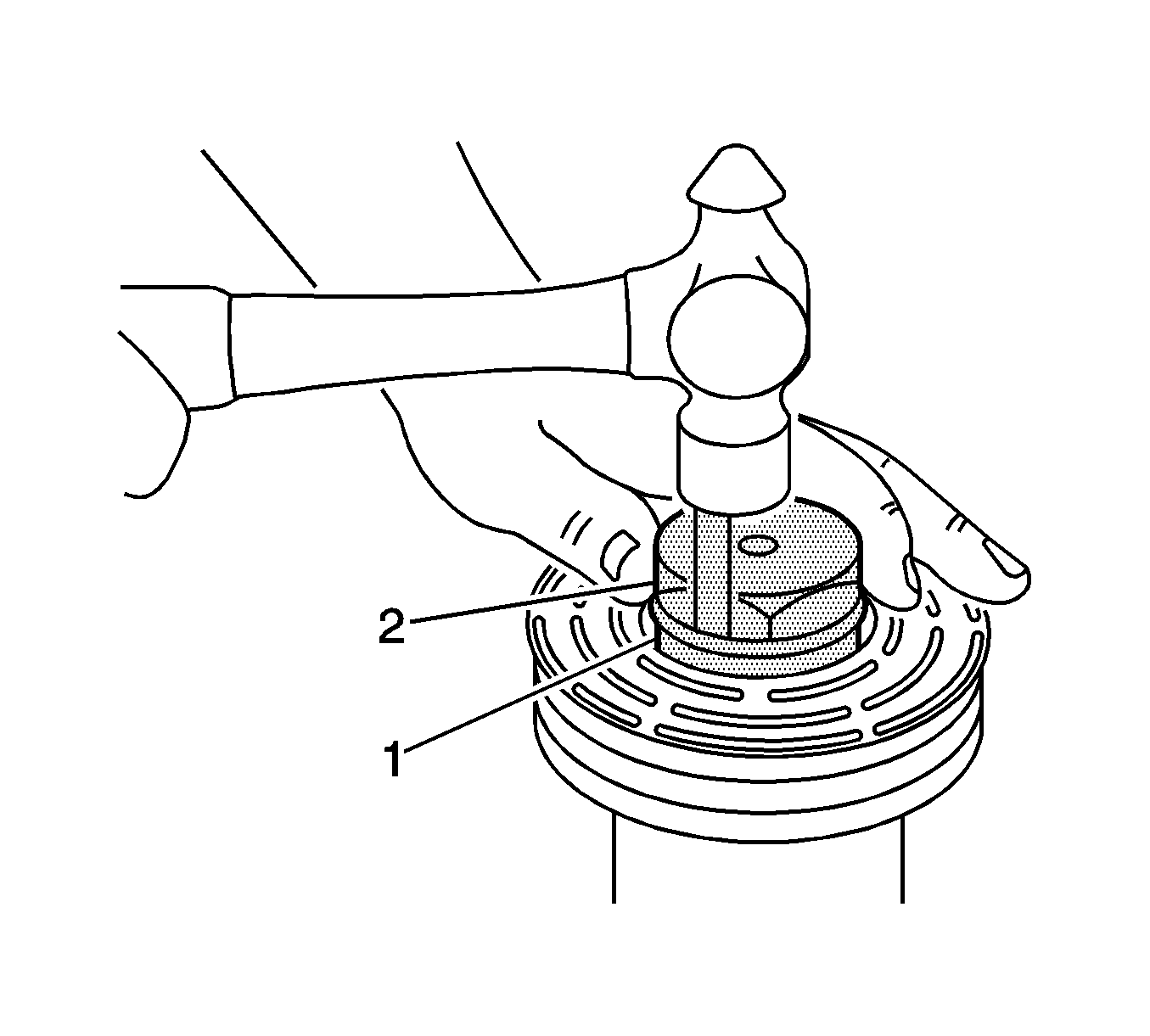

    3. Fig 2: Placing J 33019 In The Rotor Hub Core
    GM1251993Courtesy of GENERAL MOTORS CORP.
  3. Place the J 33019  (1) and the J 33019  (2) in the rotor hub core. See Special Tools . Shift the rotor and bearing assembly on the block to give full support to the hub under the staking pin location. A heavy-duty rubber band may be used to hold the staking tool pin in the guide. The pin should be properly positioned in the guide after each impact on the pin.

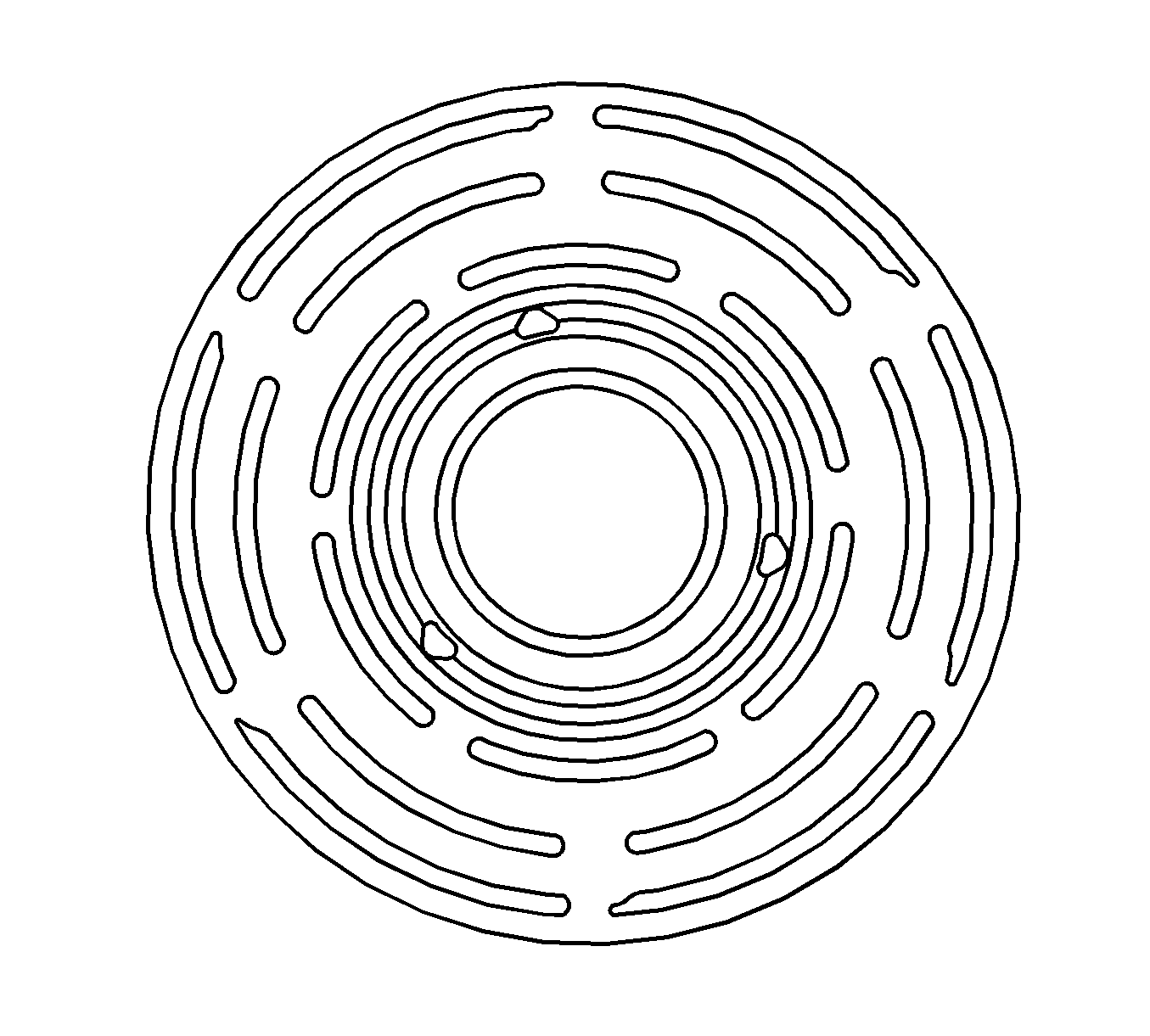

    4. Fig 3: Staking Rotor In 3 Places 120Degrees Apart
    GM1251995Courtesy of GENERAL MOTORS CORP.
    CAUTION: When striking the pin with a hammer, take care to avoid personal injury.
    NOTE: Make sure the metal stake does not contact the outer race of the bearing. Otherwise the outer race may become distorted.
  4. Strike the pin with a hammer until a metal stake, similar to the original, is formed down to, but not touching, the bearing. The metal stake should not contact the outer race of the bearing to avoid the possibility of distorting the outer race. Stake in 3 places 120° apart.

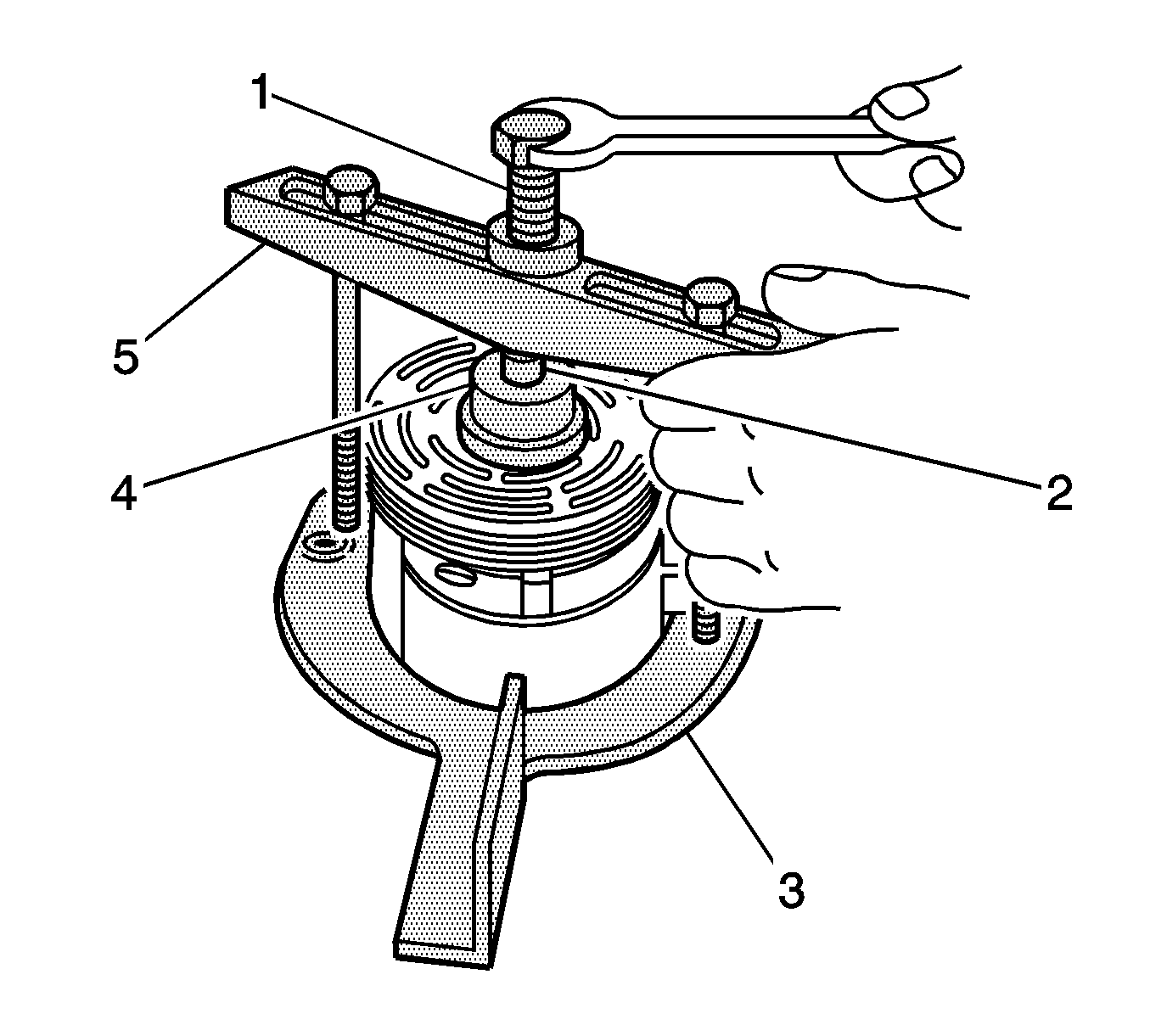

    5. Fig 4: View Of J 42428, J 33017, J 33023-A, J 8433-1 & J 8433-3 Installed On Compressor
    GM1251996Courtesy of GENERAL MOTORS CORP.
  5. With the compressor mounted to the J 42428  (3), position the rotor and the bearing assembly on the compressor housing. See Special Tools .
  6. Position the J 33017  (4) and the J 33023-A  (2) directly over the inner race of the bearing. See Special Tools .
  7. Position the J 8433-1  (5) center forcing bolt on the J 33023-A  (2) and assemble the 2 through-bolts and the washers through the J 8433-1  (5) slots. See Special Tools . Thread them into the J 42428  (3). See Special Tools . The thread of the through-bolts should engage the full thickness of the fixture.
  8. Tighten the center J 8433-3  (1) in the J 8433-1  (5) to force the pulley rotor and the bearing assembly onto the compressor housing. See Special Tools .

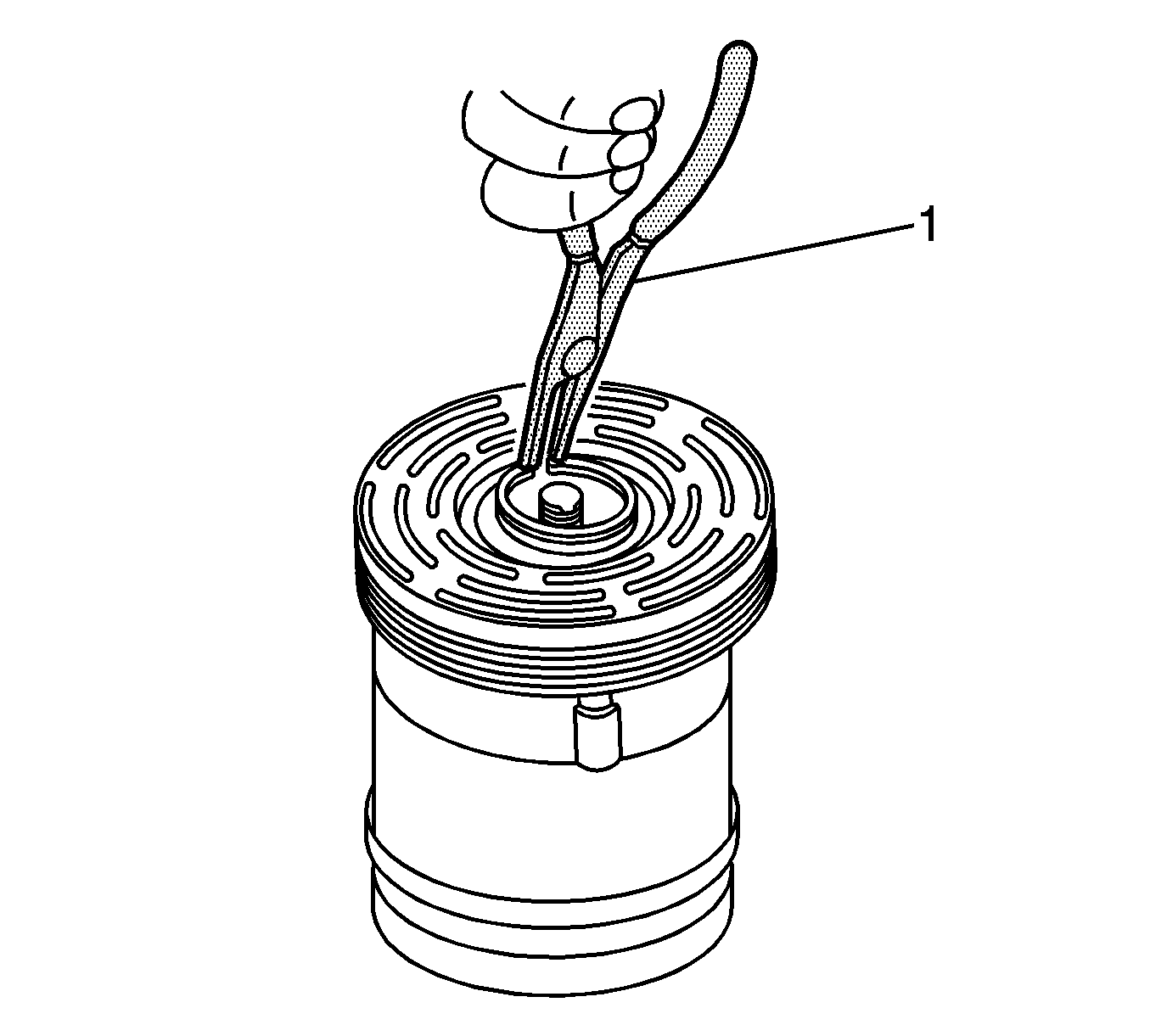

    9. Fig 5: Removing Pulley Rotor And The Bearing Assembly Retaining Ring
    GM1251988Courtesy of GENERAL MOTORS CORP.
  9. Install the rotor and the bearing assembly retainer ring using the J 6083 (1).
  10. Reinstall the clutch drive plate and the hub assembly. Refer to Compressor Clutch Plate/Hub Assembly Install .
  11. Install the compressor. Refer to Compressor Replacement .
  12. Connect the negative battery cable.
  13. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
