HVAC Schematics

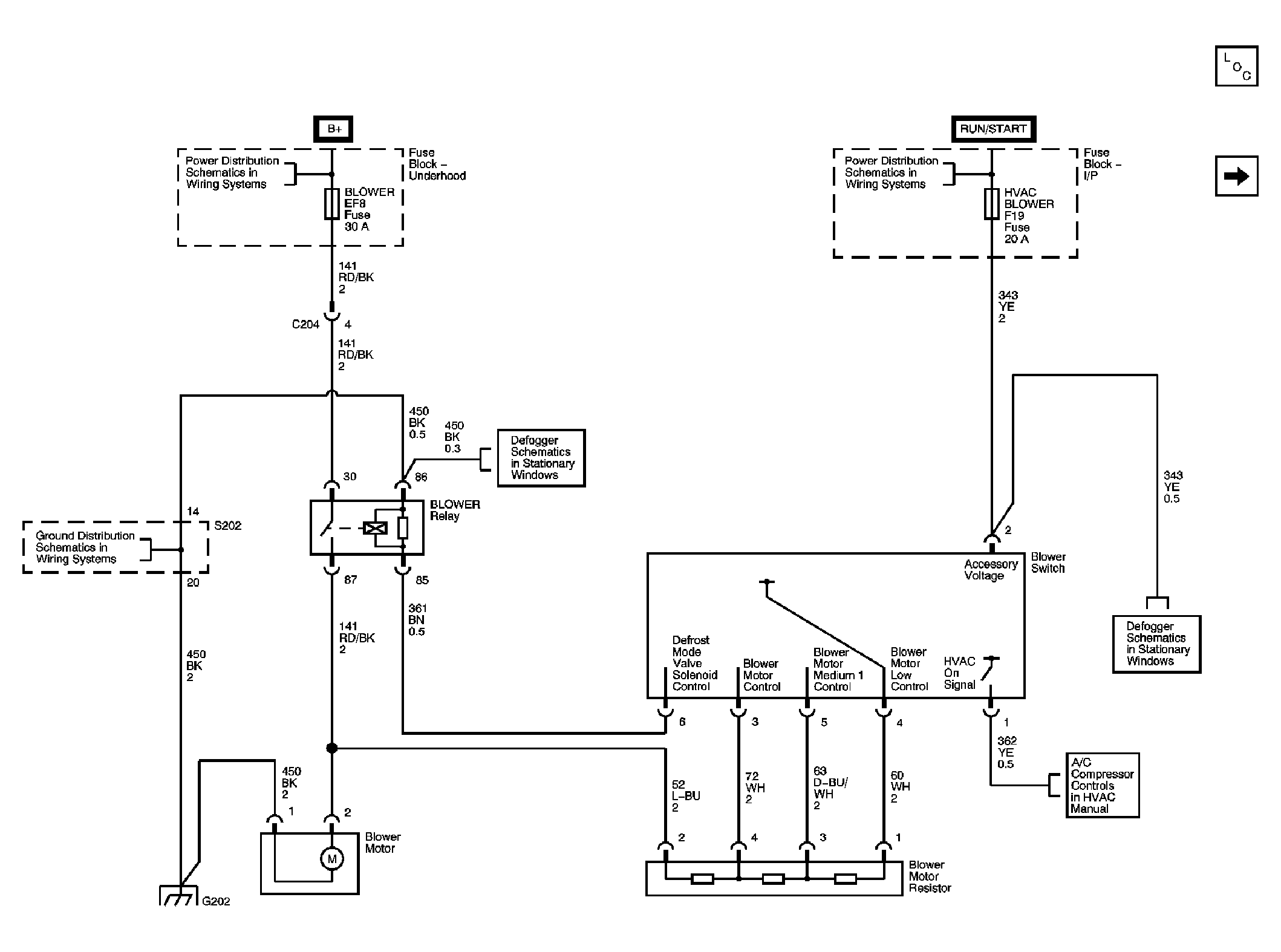

Fig 1: HVAC Manual - Blower Controls Schematic
GM1257896Courtesy of GENERAL MOTORS CORP.

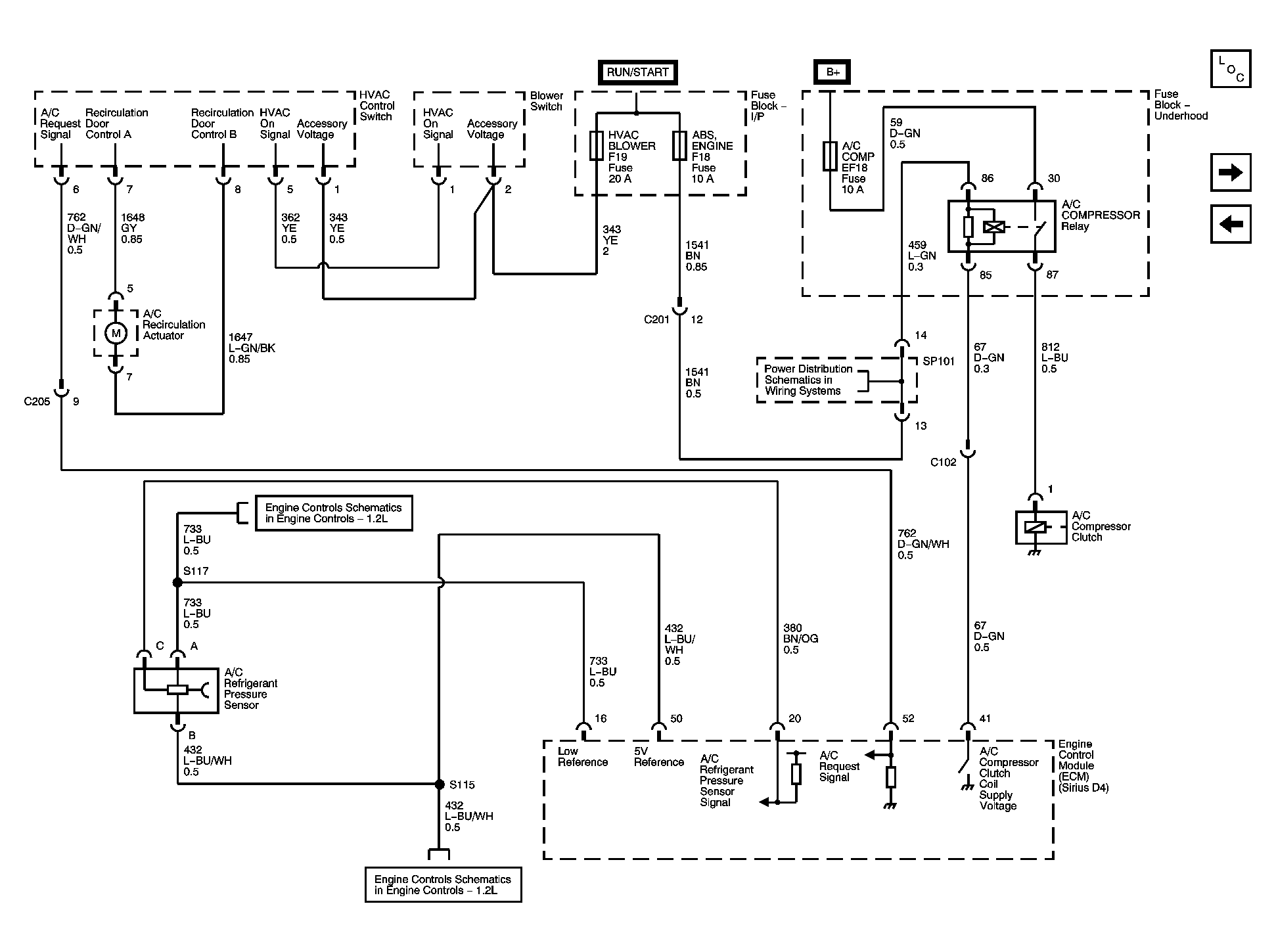

Fig 2: HVAC Manual - Compressor Controls (Sirius D4) Schematic
GM1456583Courtesy of GENERAL MOTORS CORP.

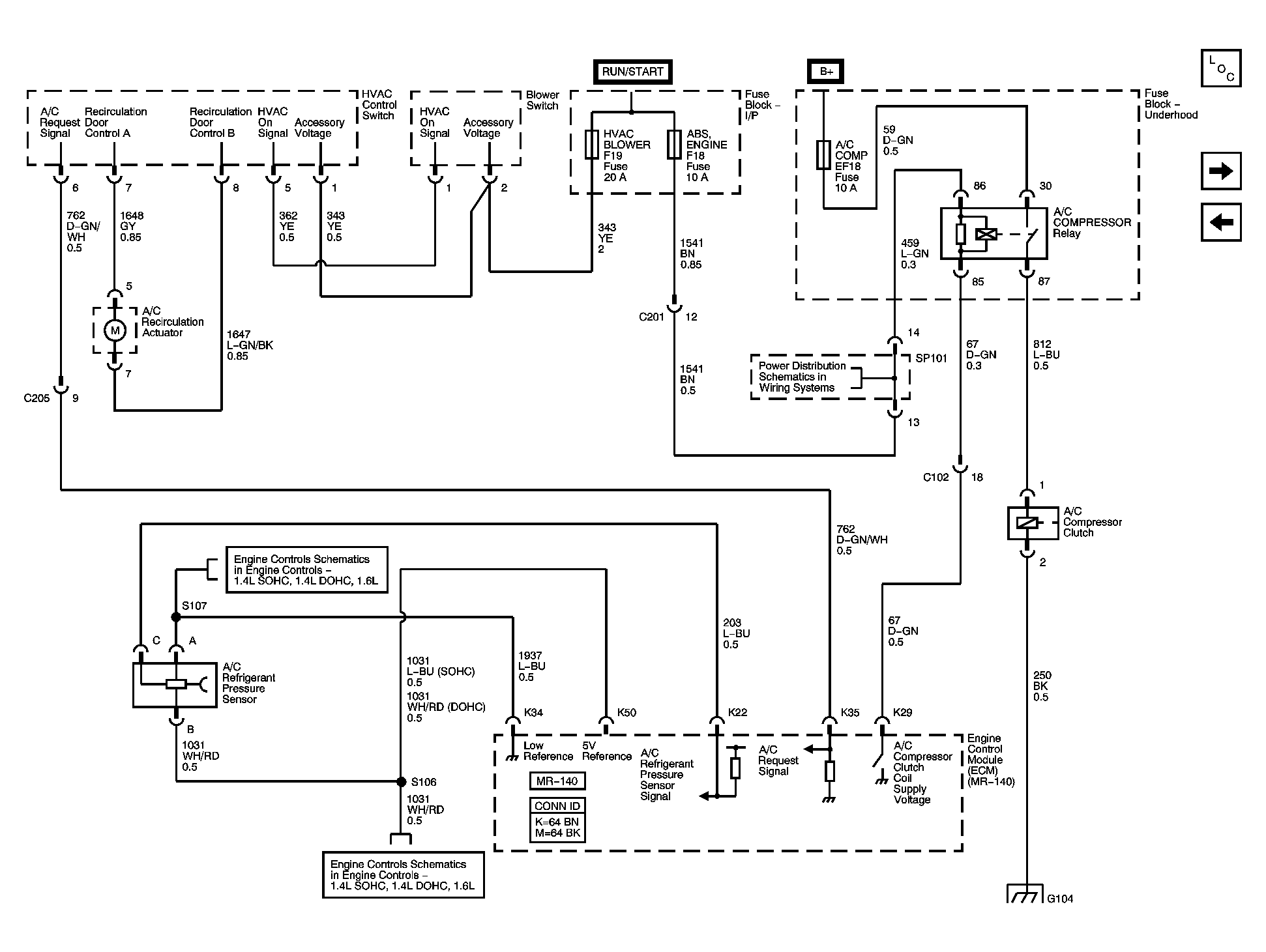

Fig 3: HVAC Manual - Compressor Controls (MR-140) Schematic
GM1257897Courtesy of GENERAL MOTORS CORP.

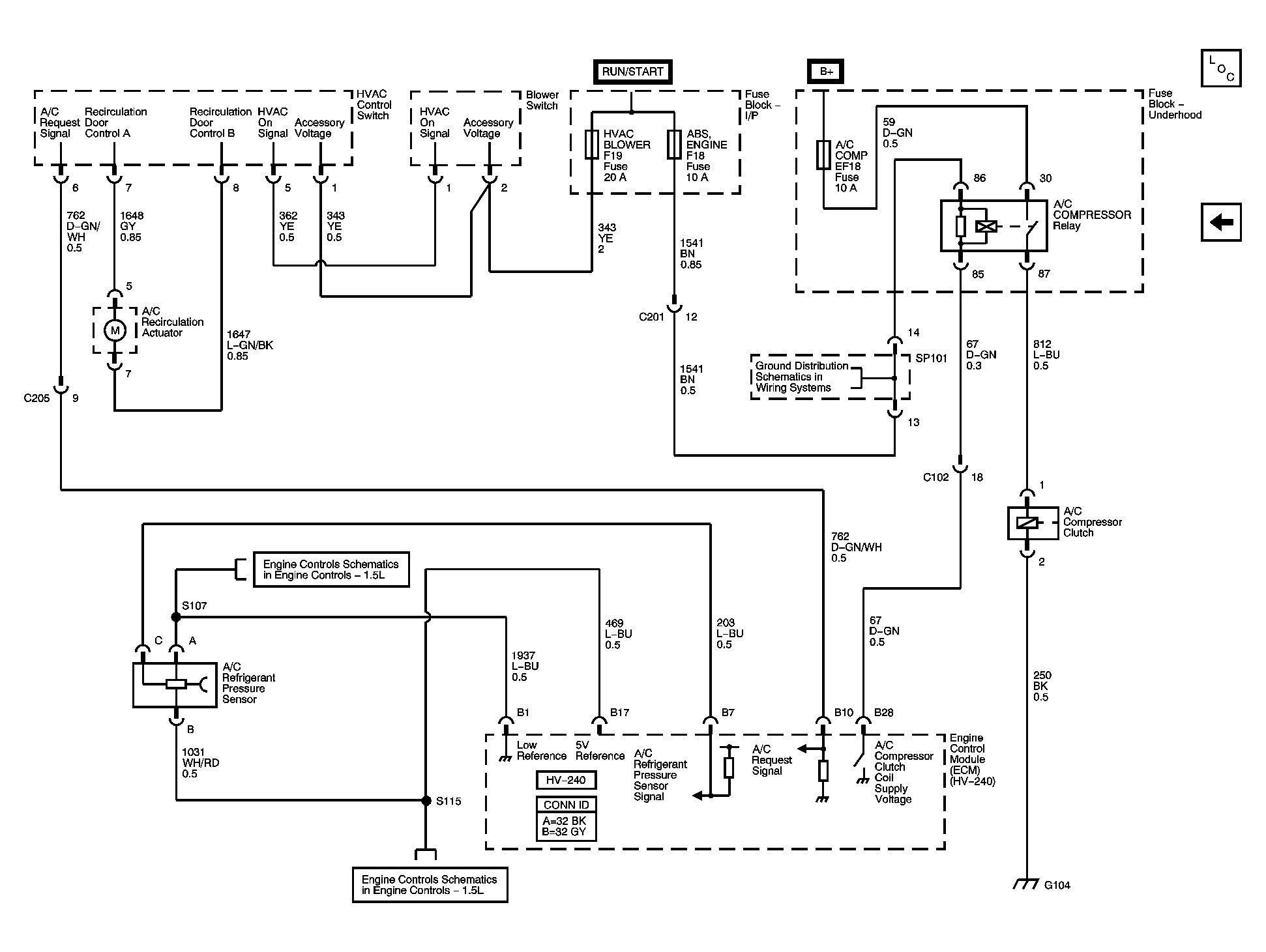

Fig 4: HVAC Manual - Compressor Controls (HV-240) Schematic
GM1456582Courtesy of GENERAL MOTORS CORP.
