Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

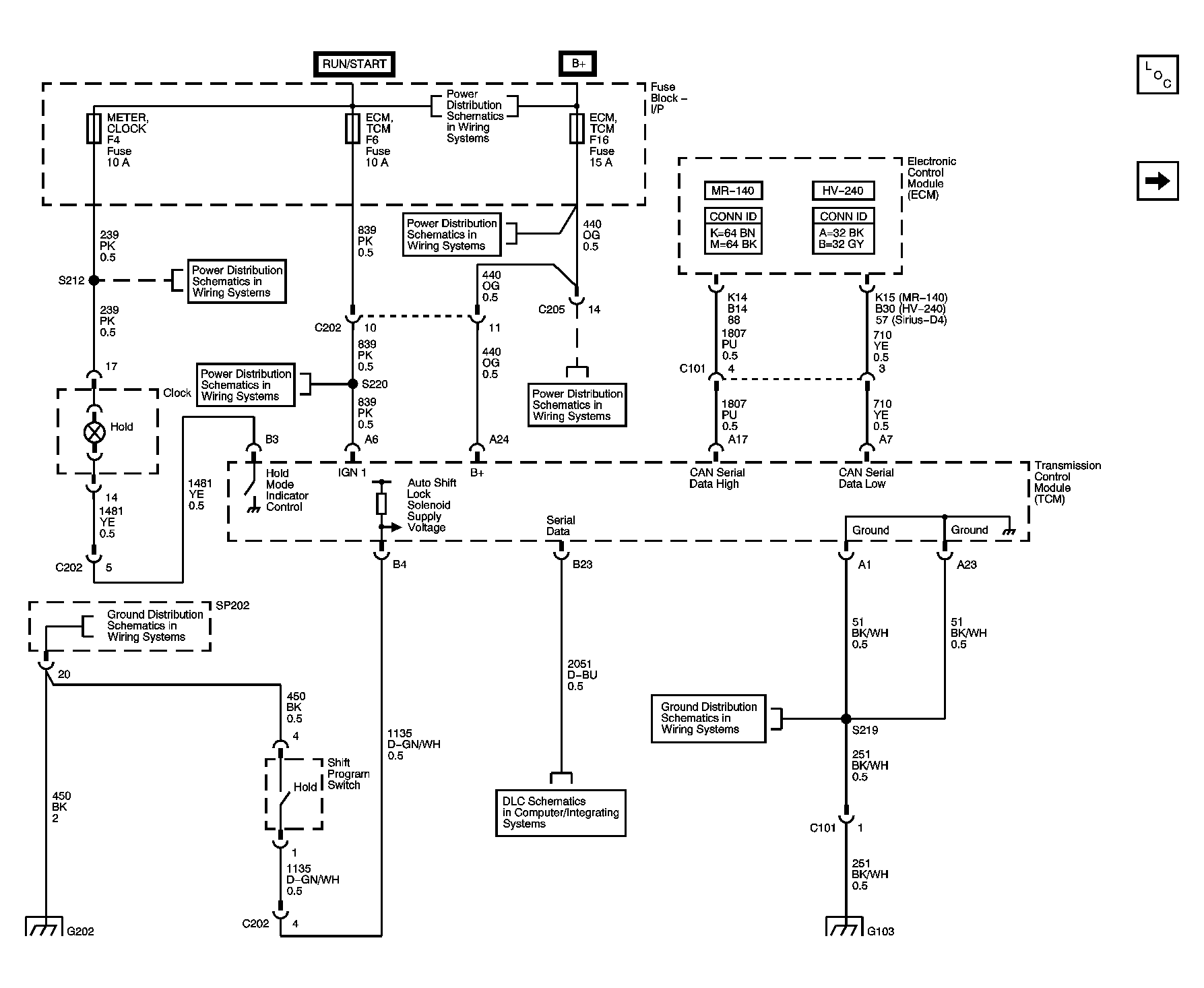

Fig 1: Module Power, Ground, Malfunction Indicator Lamp (MIL), Hold Lamp And Serial Data Schematics

Courtesy of GENERAL MOTORS CORP.

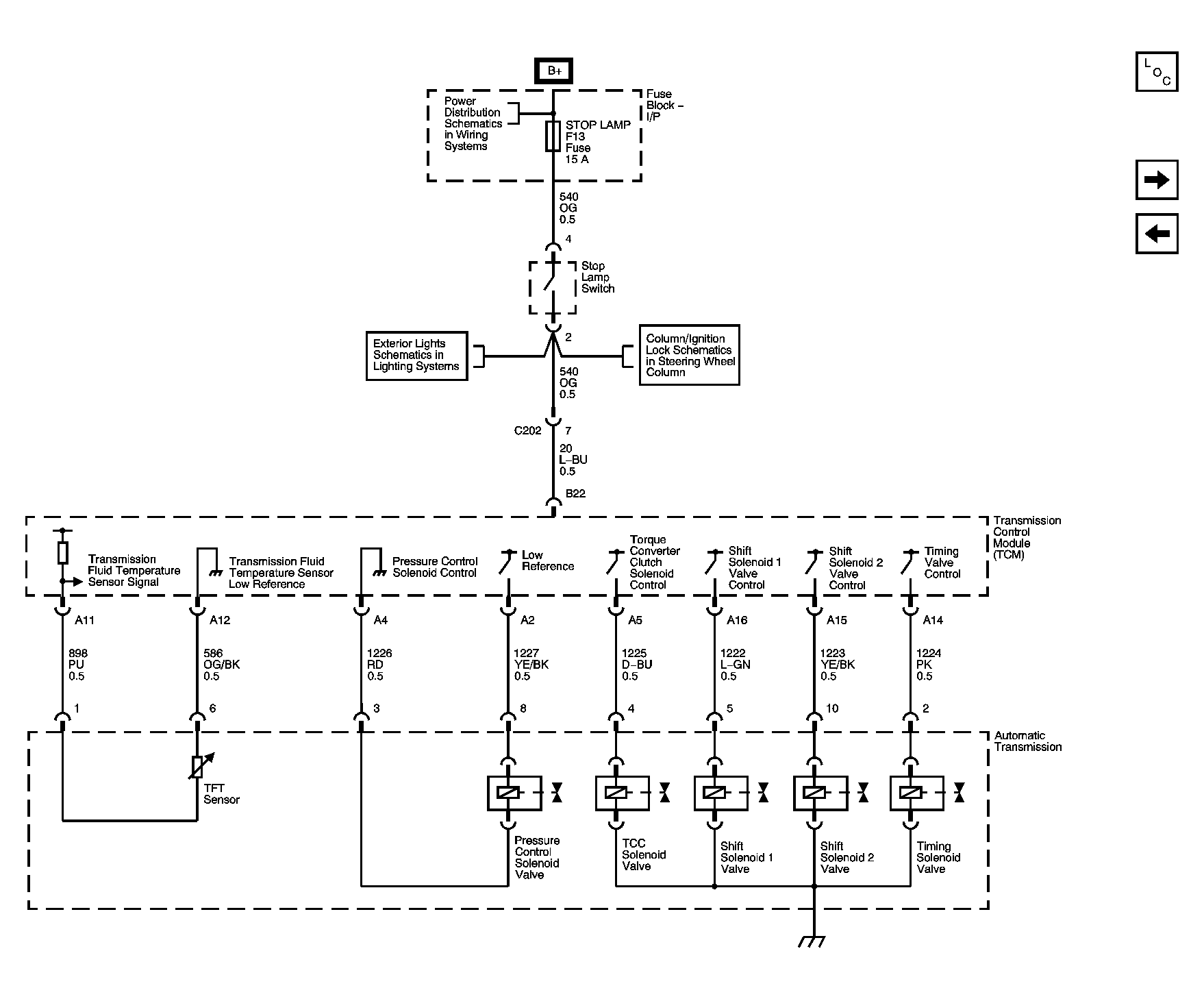

Fig 2: Torque Converter Clutch (TCC) And Transmission Solenoids Schematics

Courtesy of GENERAL MOTORS CORP.

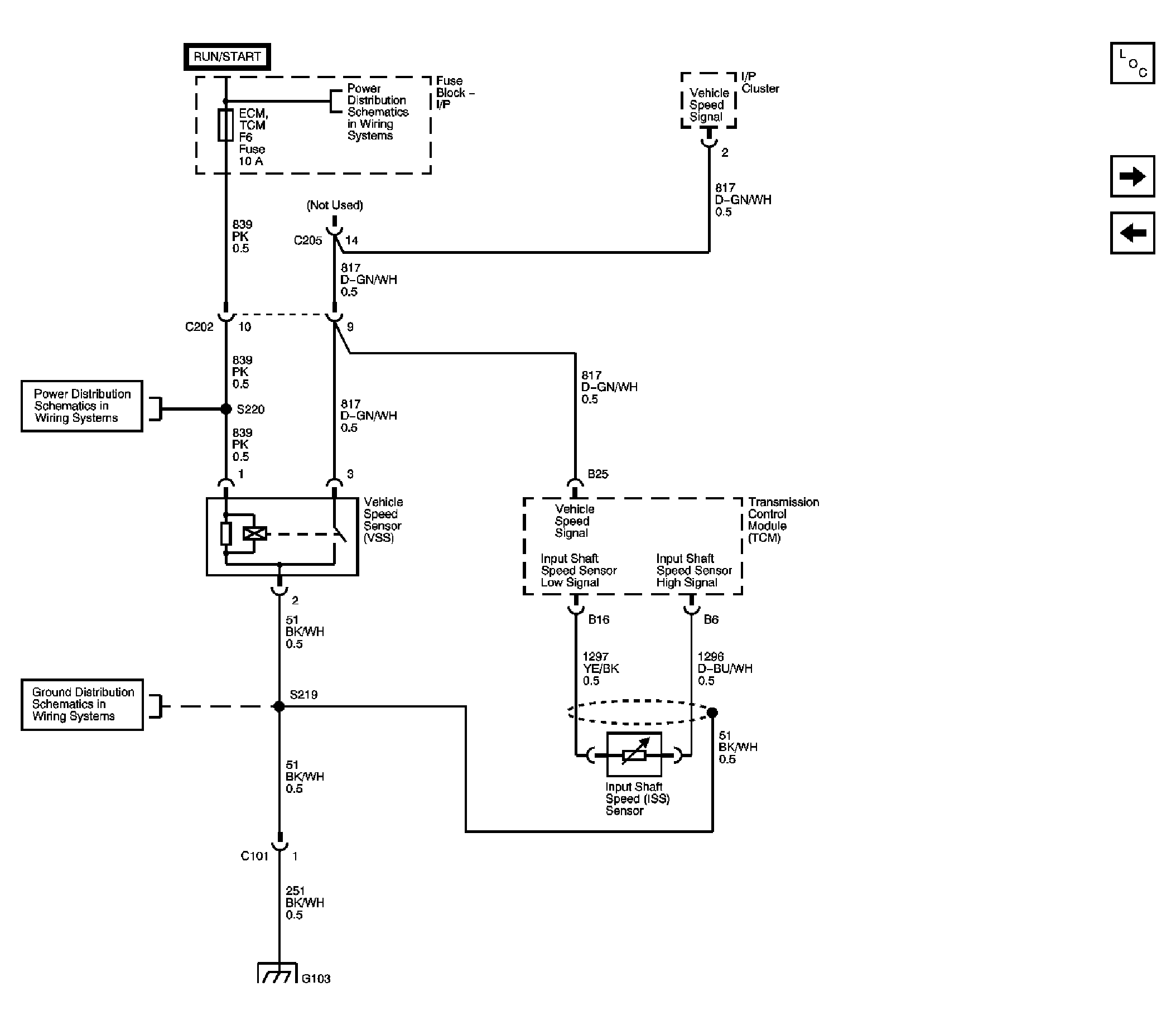

Fig 3: Vehicle Speed And Input Speed Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

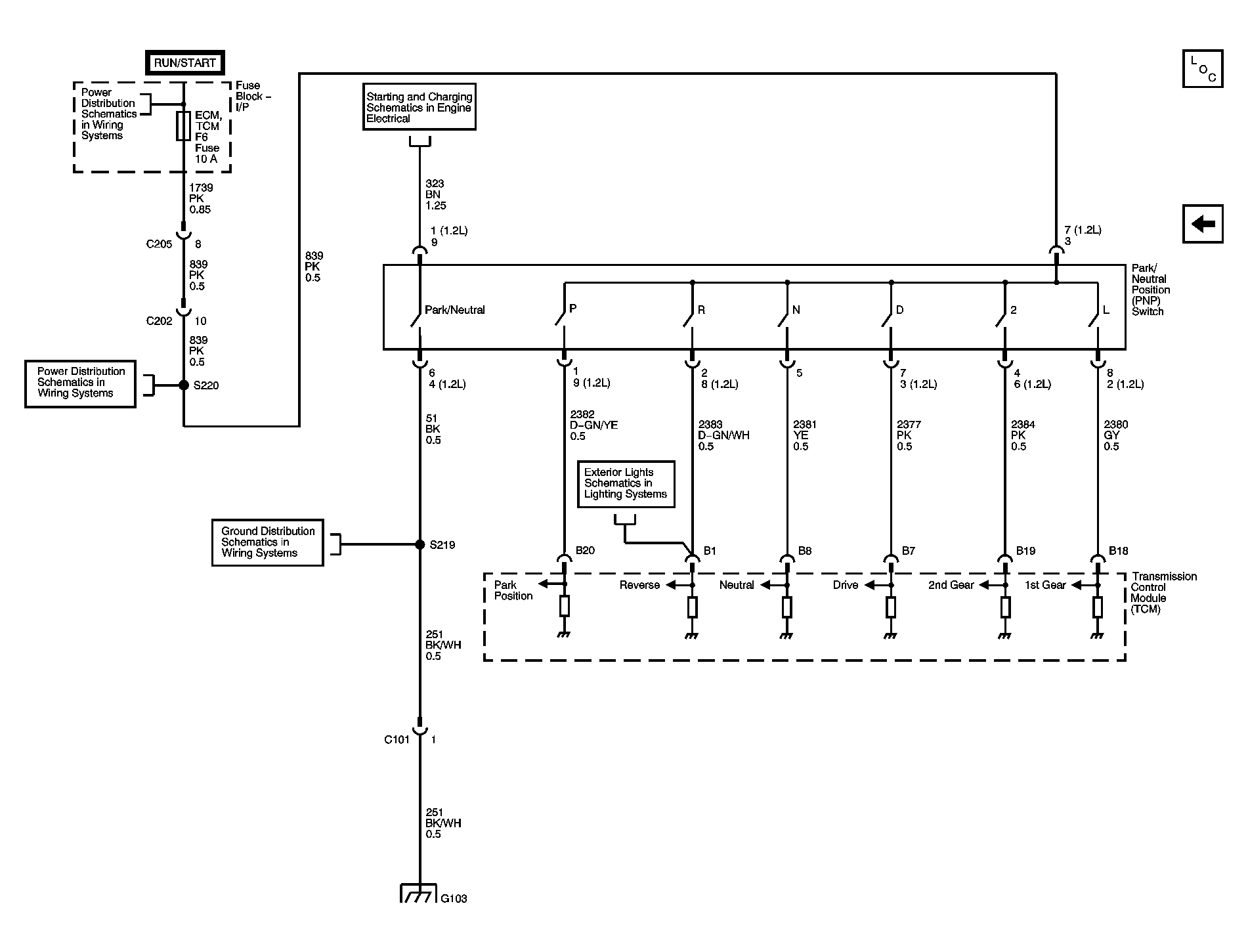

Fig 4: Park/Neutral Position (PNP) Switch Schematics

Courtesy of GENERAL MOTORS CORP.
