Installation Procedure

WARNING: This page is about a different variant/trim than selected.

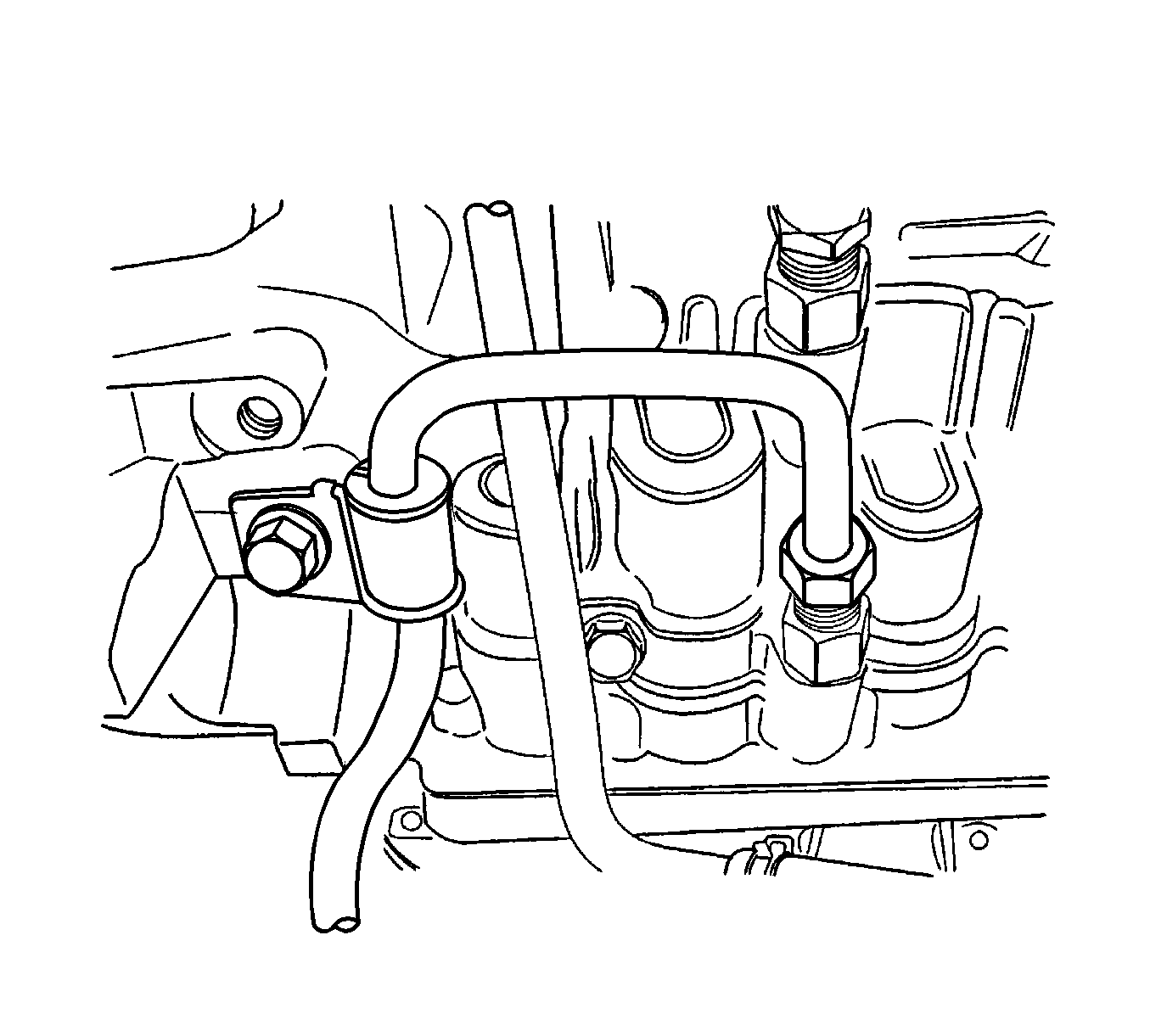

Fig 1: Fluid Cooler Rear Outlet Pipe

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the fluid cooler rear outlet pipe fitting nut.
Tighten: Tighten the fluid cooler rear outlet pipe fitting nut to 35 N.m (26 lb ft).
Install the fluid cooler rear outlet pipe clip bolt.
Tighten: Tighten the fluid cooler rear outlet pipe clip bolt to 9 N.m (80 lb in).

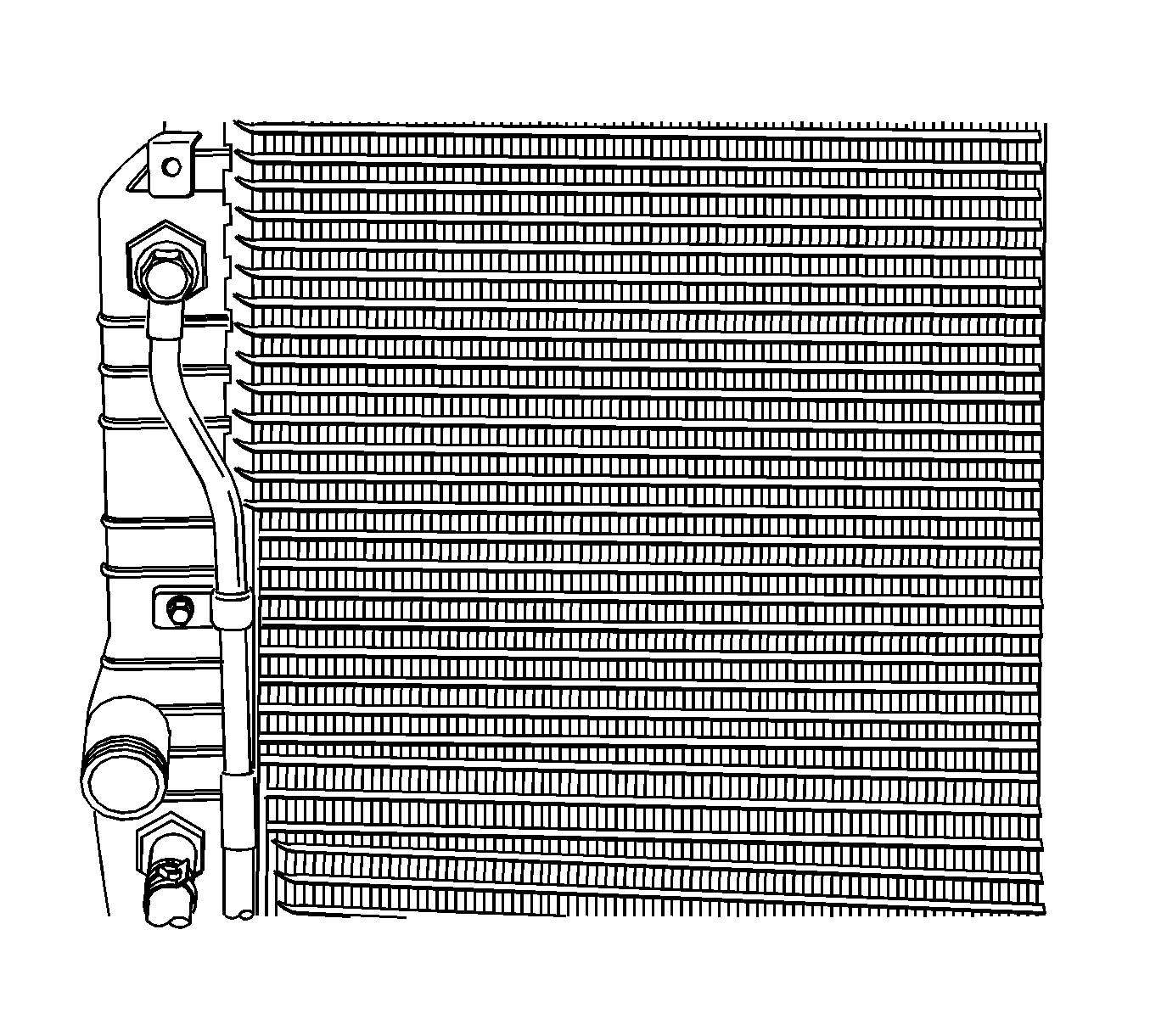

Fig 2: Front Outlet Pipe, Union Bolt & Radiator

Courtesy of GENERAL MOTORS CORP.

Install the front outlet pipe union bolt into the radiator.
Tighten: Tighten the front outlet pipe union bolt to 35 N.m (26 lb ft).
Install the front outlet pipe clip bolt into the radiator.
Tighten: Tighten the front outlet pipe clip bolt to 9 N.m (80 lb in).
Fill the transaxle with the fluid.
