Installation Procedure

WARNING: This page is about a different variant/trim than selected.

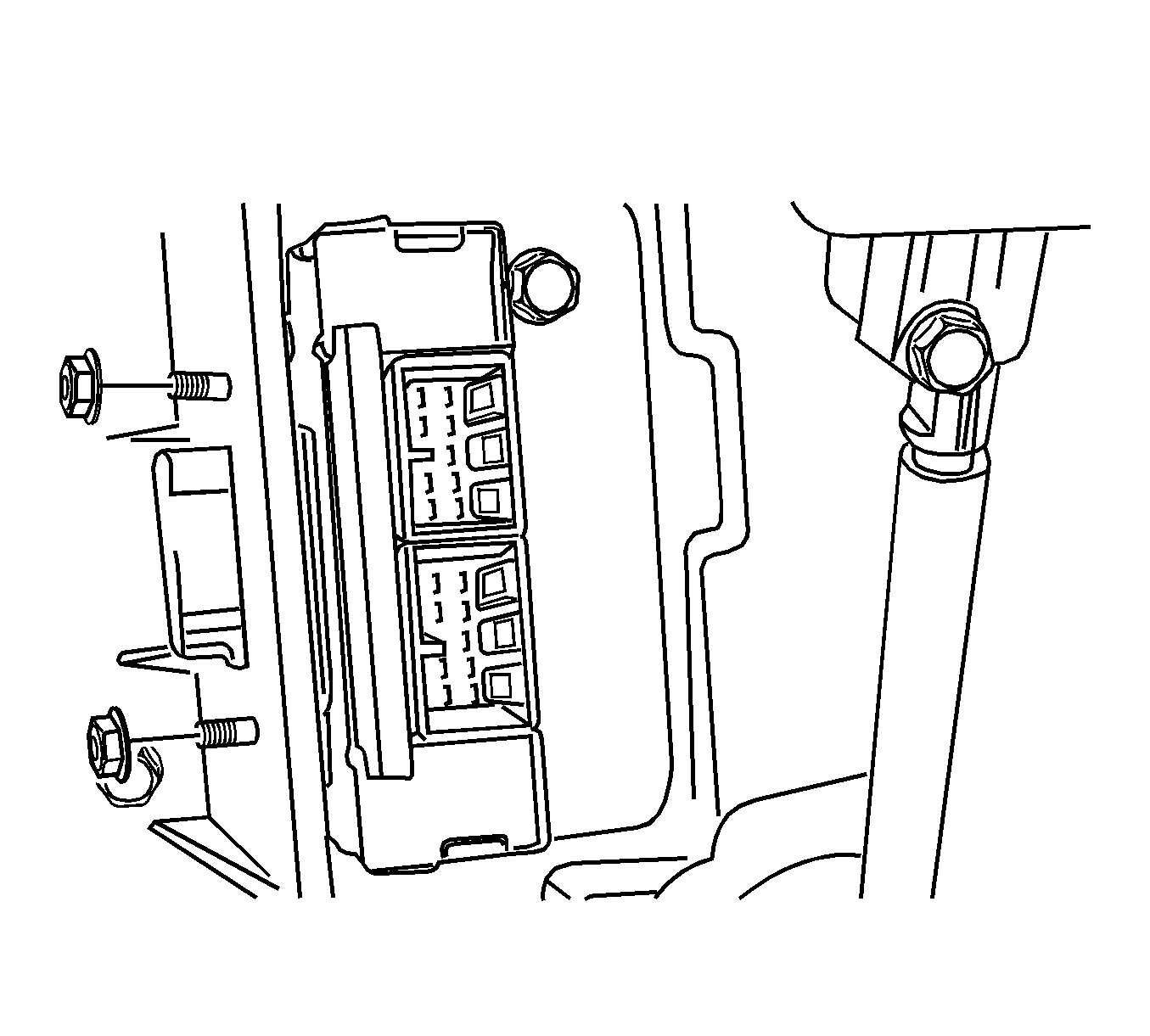

    Fig 1: TCM Retaining Bolts
    GM1245837Courtesy of GENERAL MOTORS CORP.
  1. Connect the negative battery cable.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the TCM and retaining bolts.

    Tighten:  Tighten the TCM retaining bolts to 5 N.m (44 lb in).

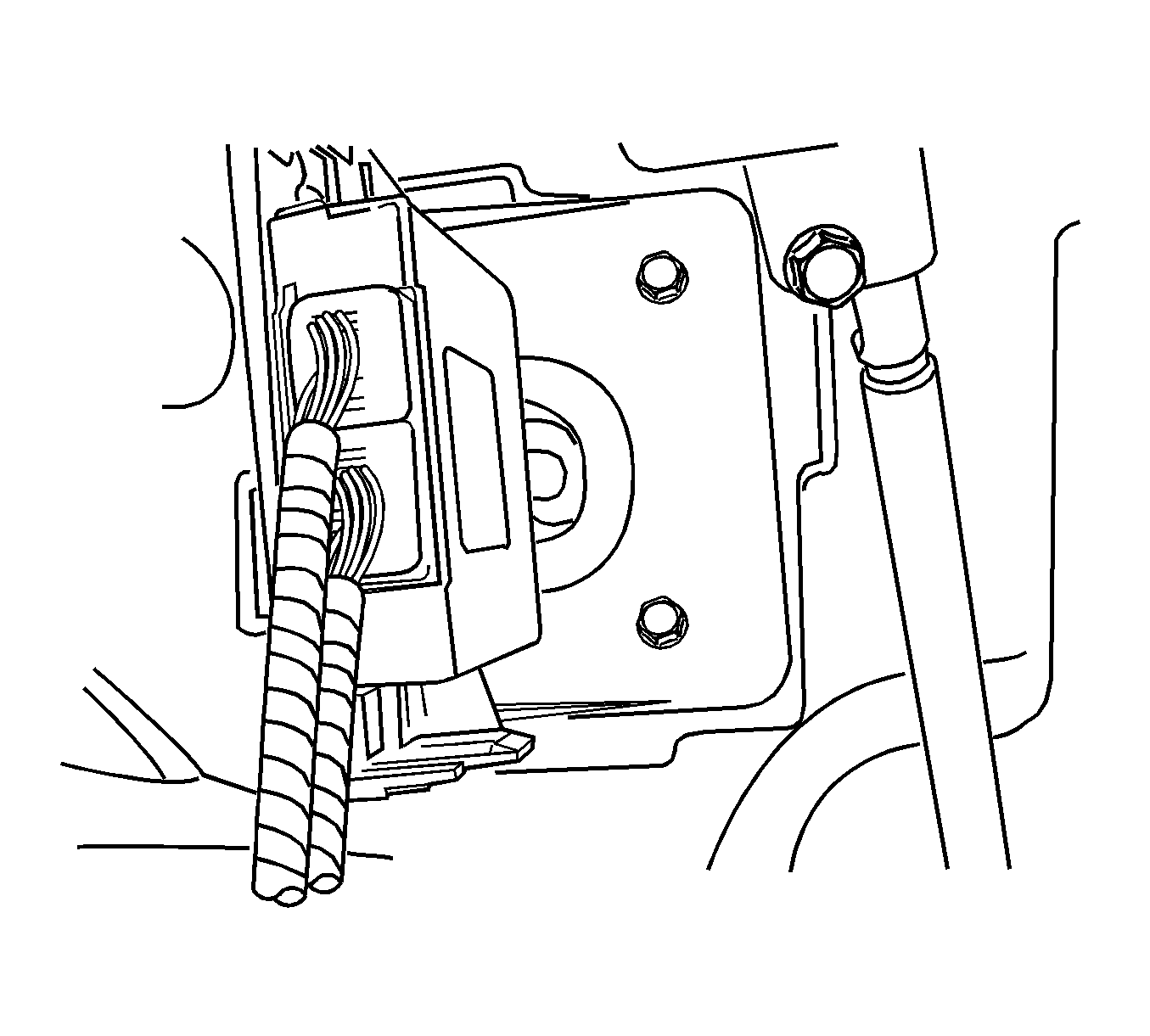

    3. Fig 2: TCM Electrical Connector
    GM1245836Courtesy of GENERAL MOTORS CORP.
  3. Connect the TCM electrical connector.
  4. Connect the negative battery cable.
