Planetary Ring Gear Disassemble

WARNING: This page is about a different variant/trim than selected.

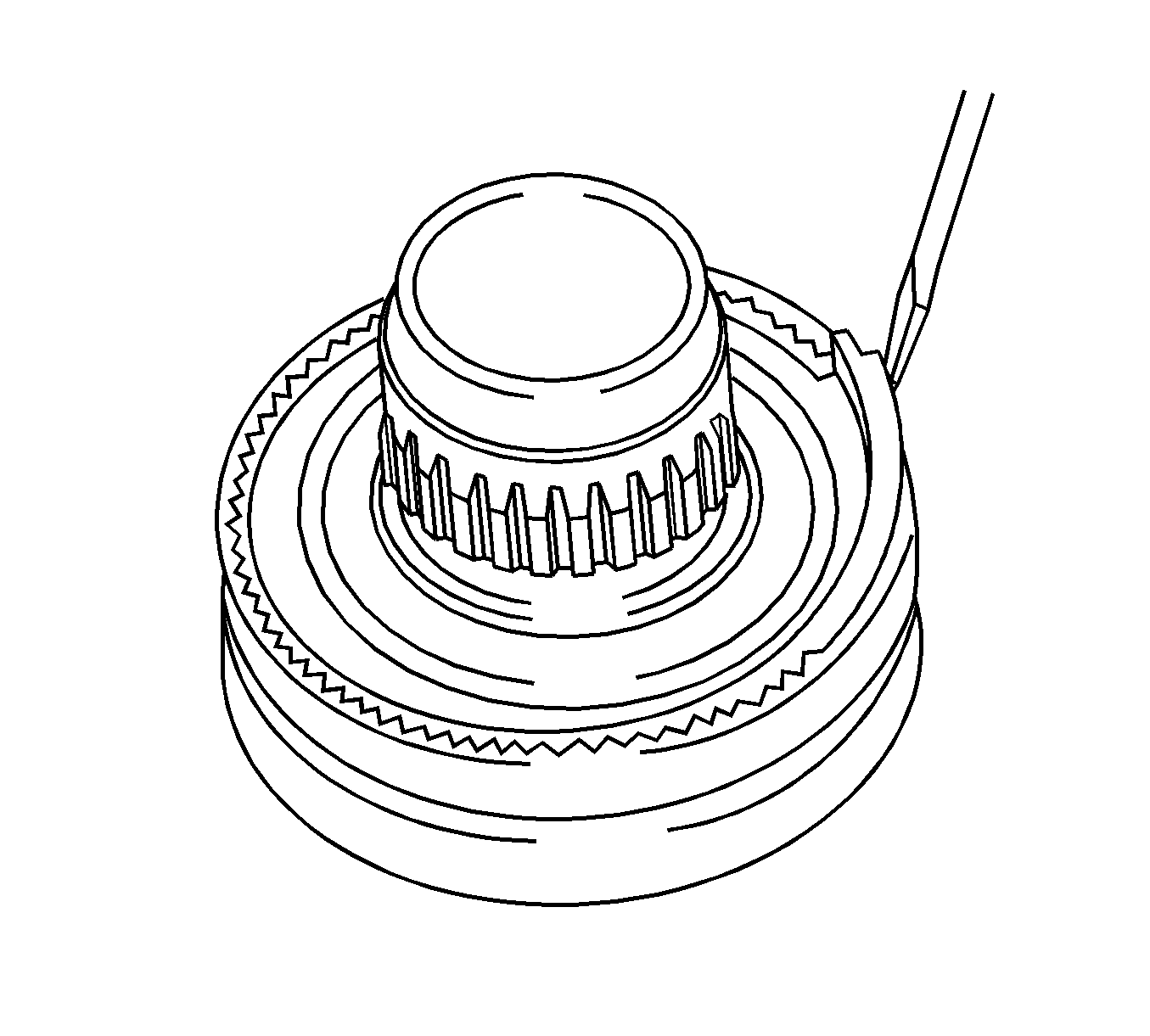

Fig 1: Removing Snap Ring Planetary Ring Gear Using A Screwdriver

GM1246032

Courtesy of GENERAL MOTORS CORP.

Using a screwdriver, remove the snap ring.

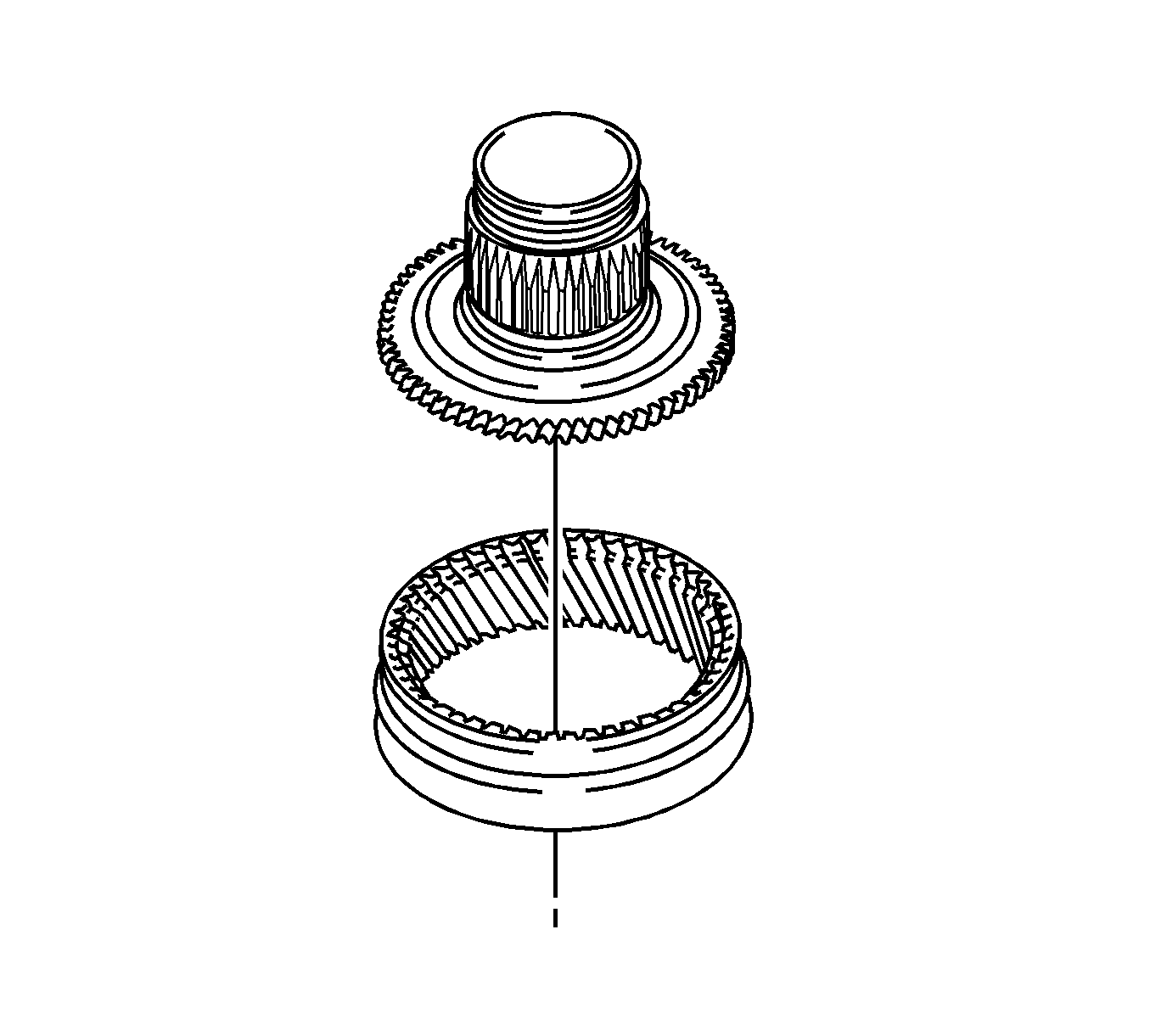

Fig 2: Planetary Ring Gear & Flange

GM1246033

Courtesy of GENERAL MOTORS CORP.

Remove the planetary ring gear flange from the planetary ring gear.
