Removal Procedure

WARNING: This page is about a different variant/trim than selected.

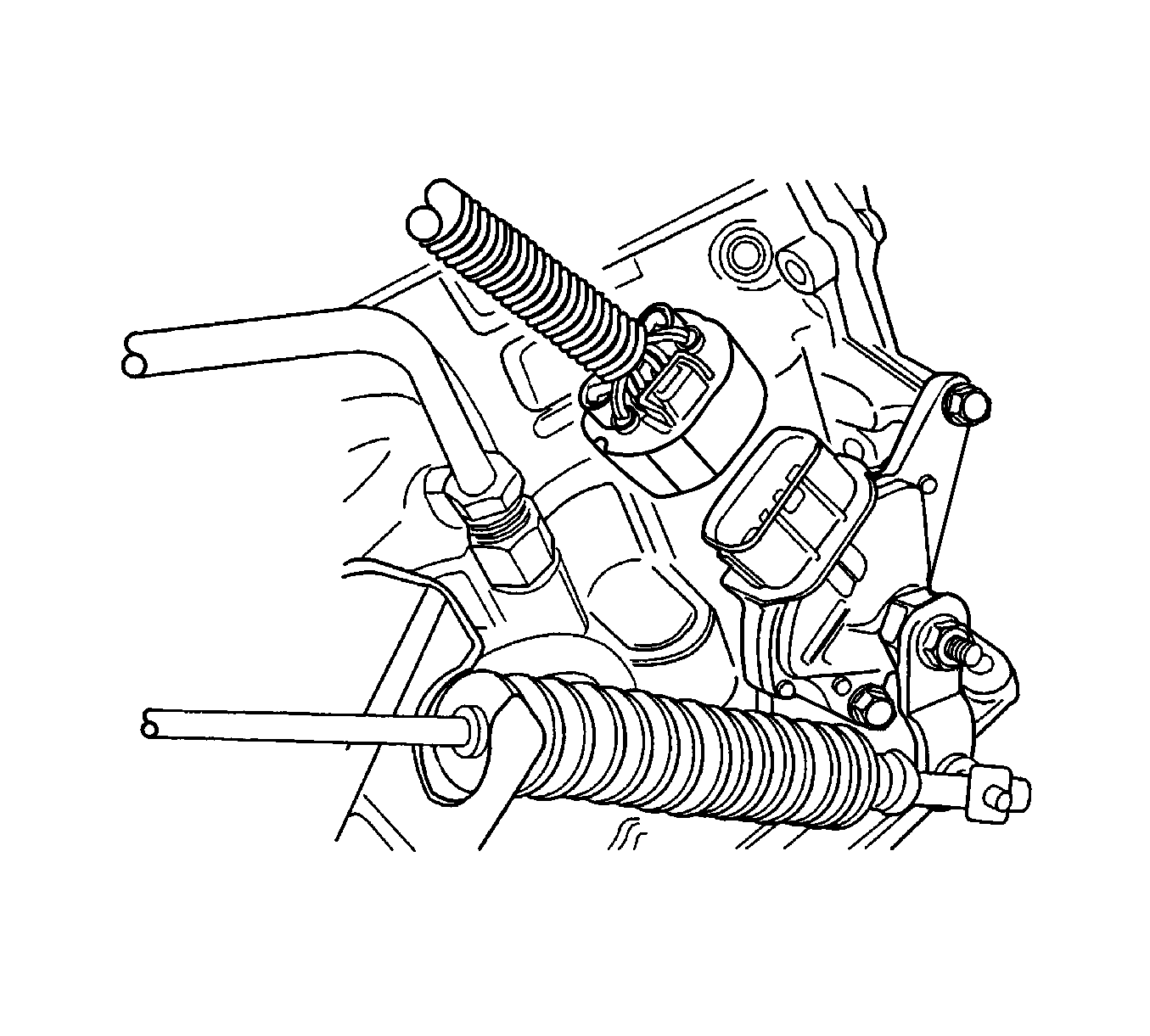

    Fig 1: PNP Switch Electrical Connector & Wiring Harness
    GM1245819Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Disconnect the park/neutral position (PNP) switch electrical connector from the wiring harness.
    3. Fig 2: Shift Control Cable & PNP Switch Lever
    GM1245820Courtesy of GENERAL MOTORS CORP.
  3. Remove the E-ring.
  4. Disconnect the shift control cable from the PNP switch lever.

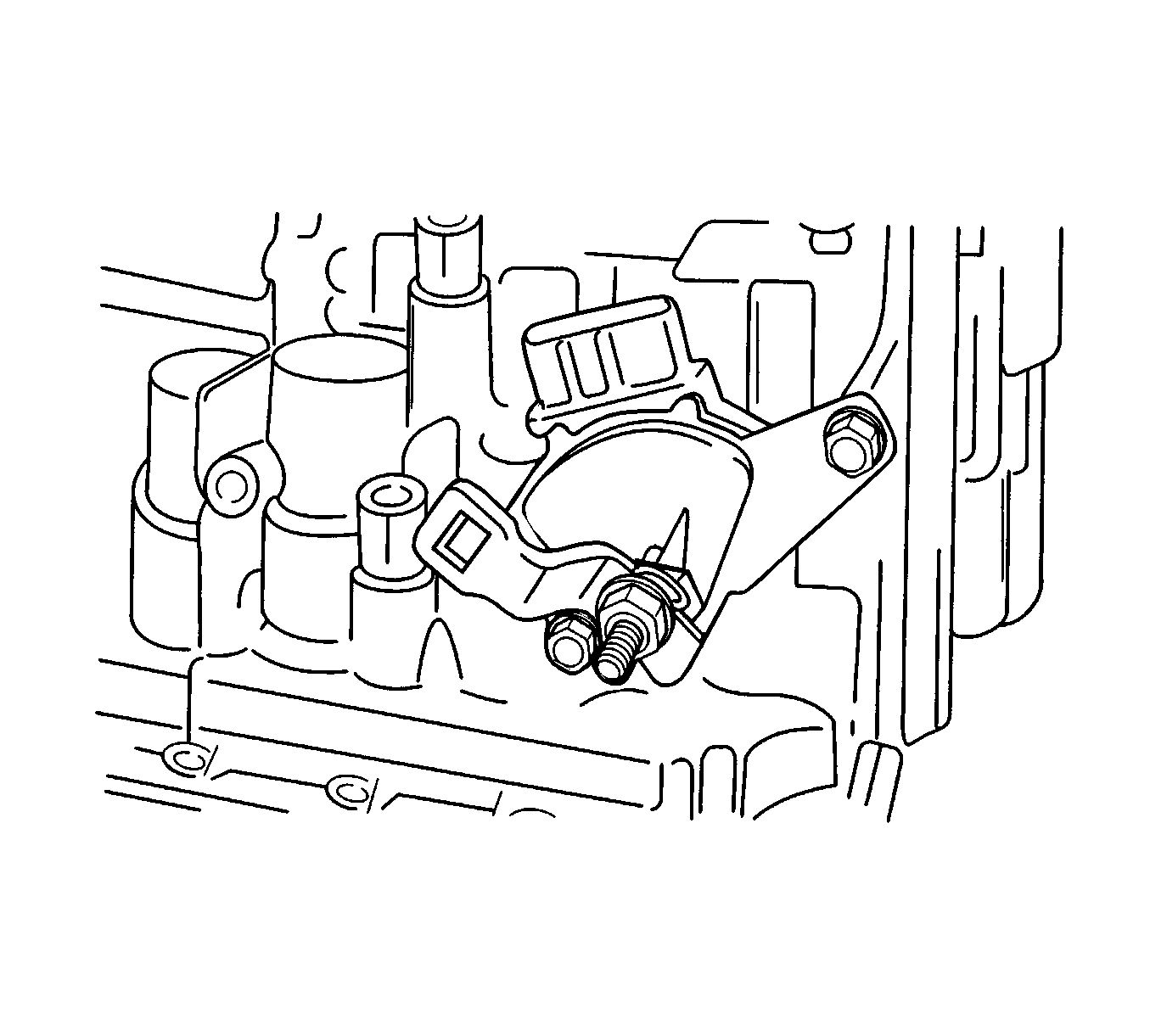

    5. Fig 3: Retaining Nut, Washer & Control Lever
    GM1245823Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Transmission Selector Shaft Abuse Notice in Cautions and Notices.
  5. Remove the retaining nut and then remove the washer and the control lever.
  6. Using a driver, unstake the lock washer and remove the nut.
