One Way Clutch Disassemble

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Turning Rear Planetary Sun Gear & One-Way Clutch
    GM1246037Courtesy of GENERAL MOTORS CORP.
  1. Install the one-way clutch and thrust washer to the rear planetary sun gear.
  2. Hold the rear planetary sun gear and turn the one-way clutch. The one-way clutch should turn freely clockwise and should lock counterclockwise.
    3. Fig 2: Removing Snap Ring From 2nd Brake Hub Using A Screwdriver
    GM1246036Courtesy of GENERAL MOTORS CORP.
  3. Using a screwdriver, remove the snap ring from the 2nd brake hub.
    4. Fig 3: One-Way Clutch & 2nd Brake Hub
    GM1246034Courtesy of GENERAL MOTORS CORP.
  4. Remove the one-way clutch from the 2nd brake hub.

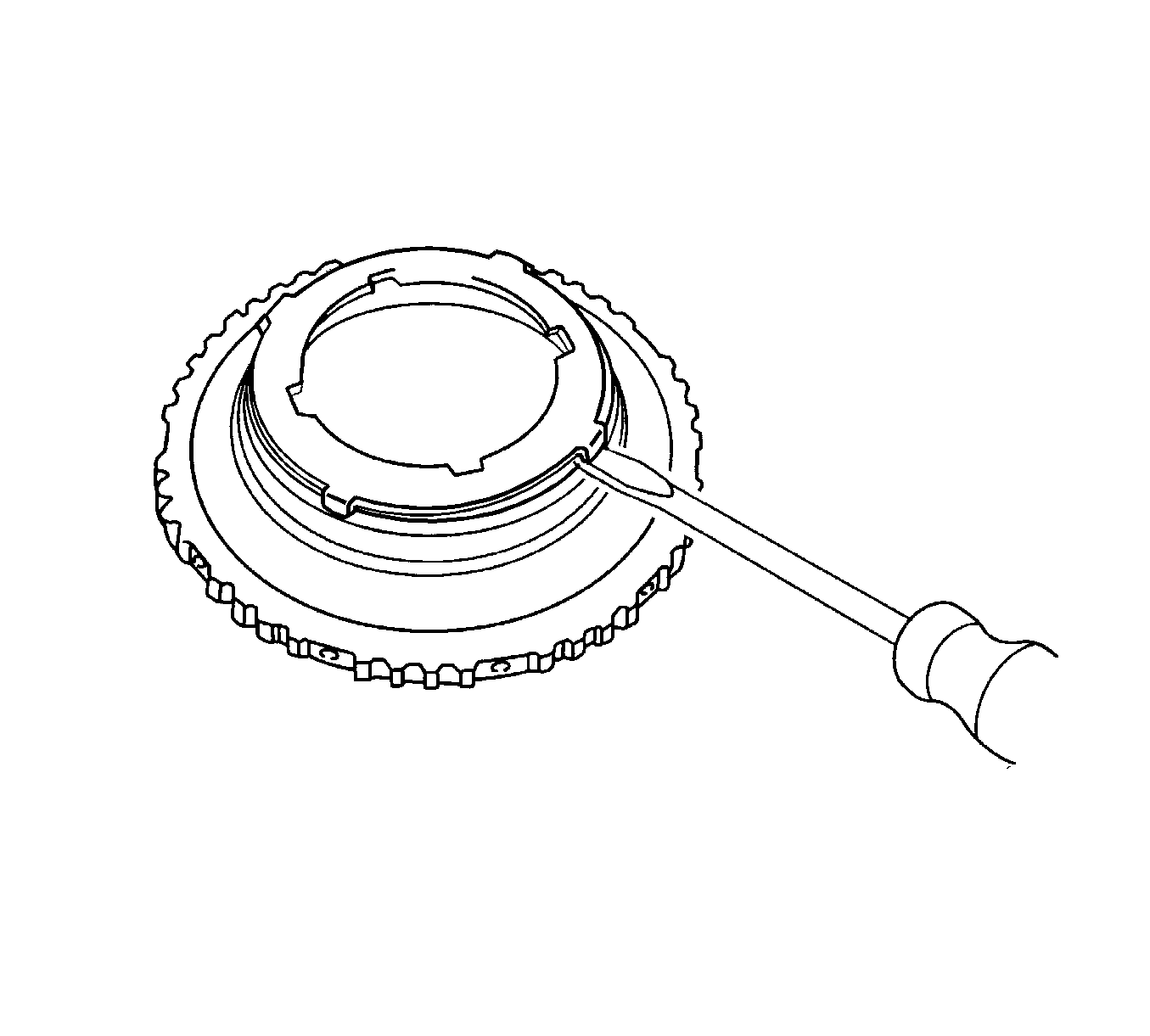

    5. Fig 4: Removing Retainer From 2nd Brake Hub Using A Screwdriver
    GM1246035Courtesy of GENERAL MOTORS CORP.
  5. Using a small screwdriver, remove the retainer from the 2nd brake hub.
