One Way Clutch Assemble

WARNING: This page is about a different variant/trim than selected.

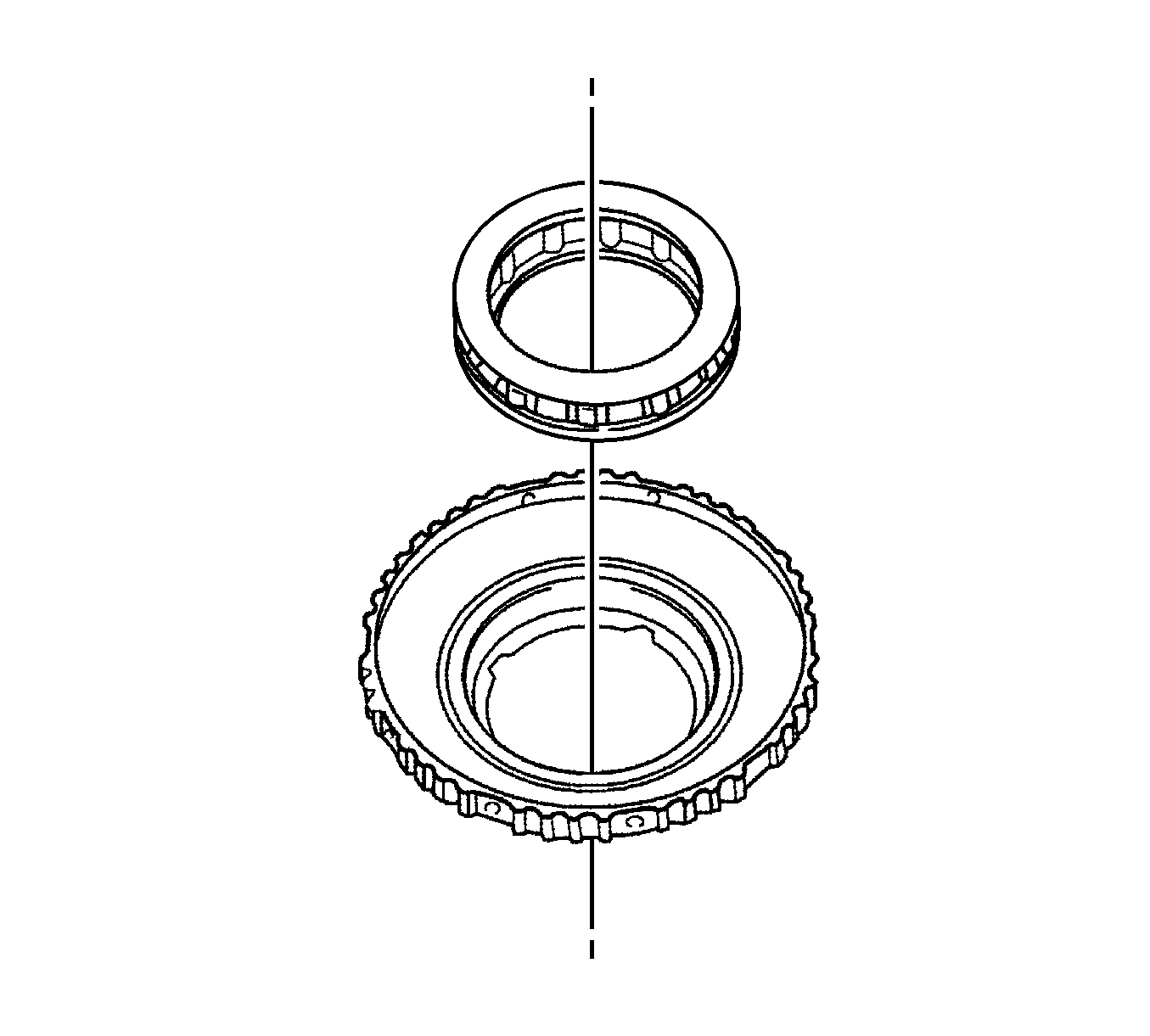

    Fig 1: One-Way Clutch & 2nd Brake Hub
    GM1246034Courtesy of GENERAL MOTORS CORP.
  1. Install the retainer to the 2nd brake hub.
  2. Install the one-way clutch.

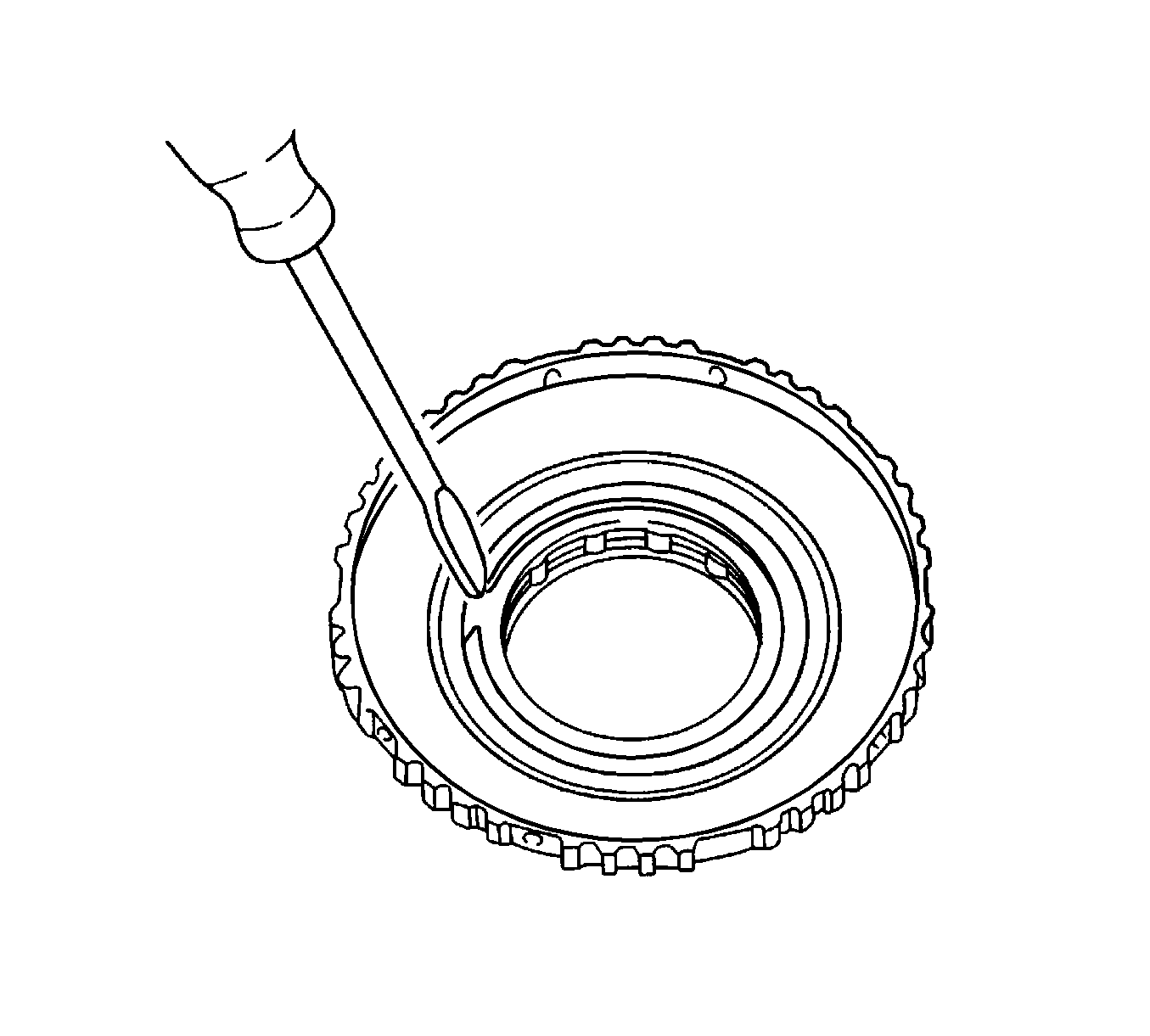

    3. Fig 2: Removing Snap Ring From 2nd Brake Hub Using A Screwdriver
    GM1246036Courtesy of GENERAL MOTORS CORP.
  3. Using a screwdriver, install the snap ring.

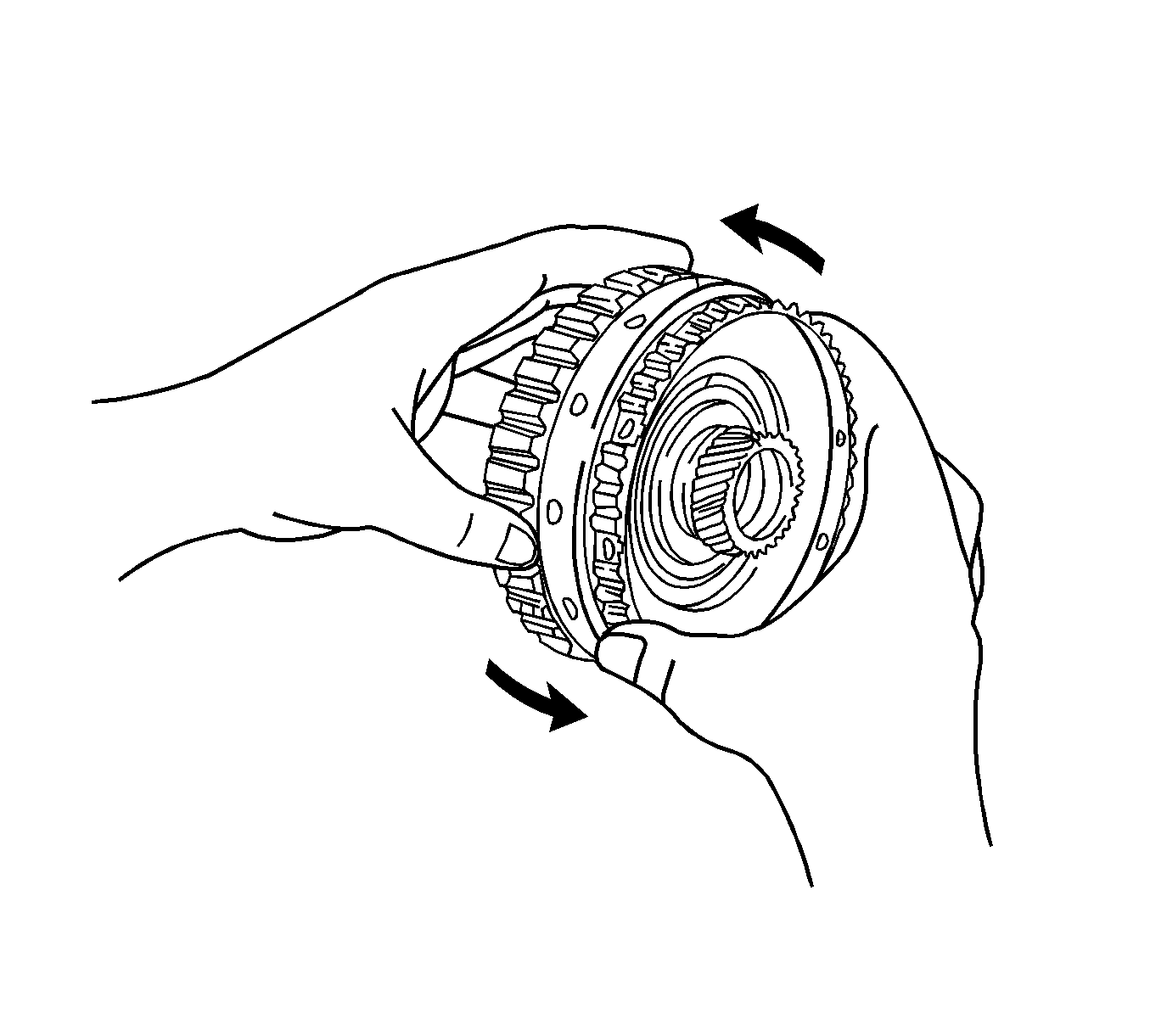

    4. Fig 3: Turning Rear Planetary Sun Gear & One-Way Clutch
    GM1246037Courtesy of GENERAL MOTORS CORP.
  4. Install the one-way clutch and thrust washer to the rear planetary sun gear.
  5. Hold the rear planetary sun gear and turn the one-way clutch. The one-way clutch should turn freely clockwise and should lock counterclockwise.
