Oil Pump Assemble

WARNING: This page is about a different variant/trim than selected.

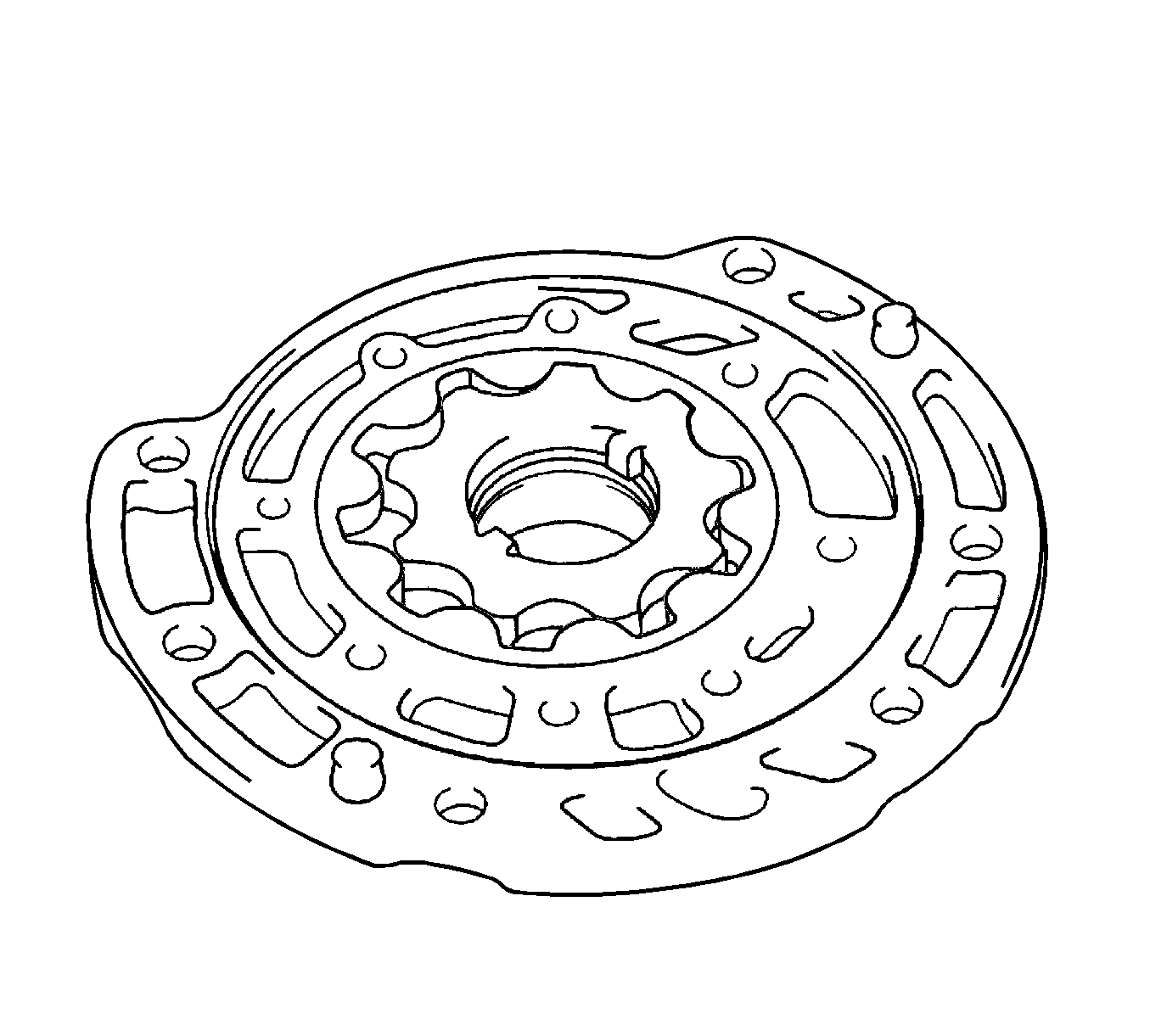

    Fig 1: Oil Pump Drive Gear
    GM1246011Courtesy of GENERAL MOTORS CORP.
  1. Install the oil pump drive gear and driven gear.

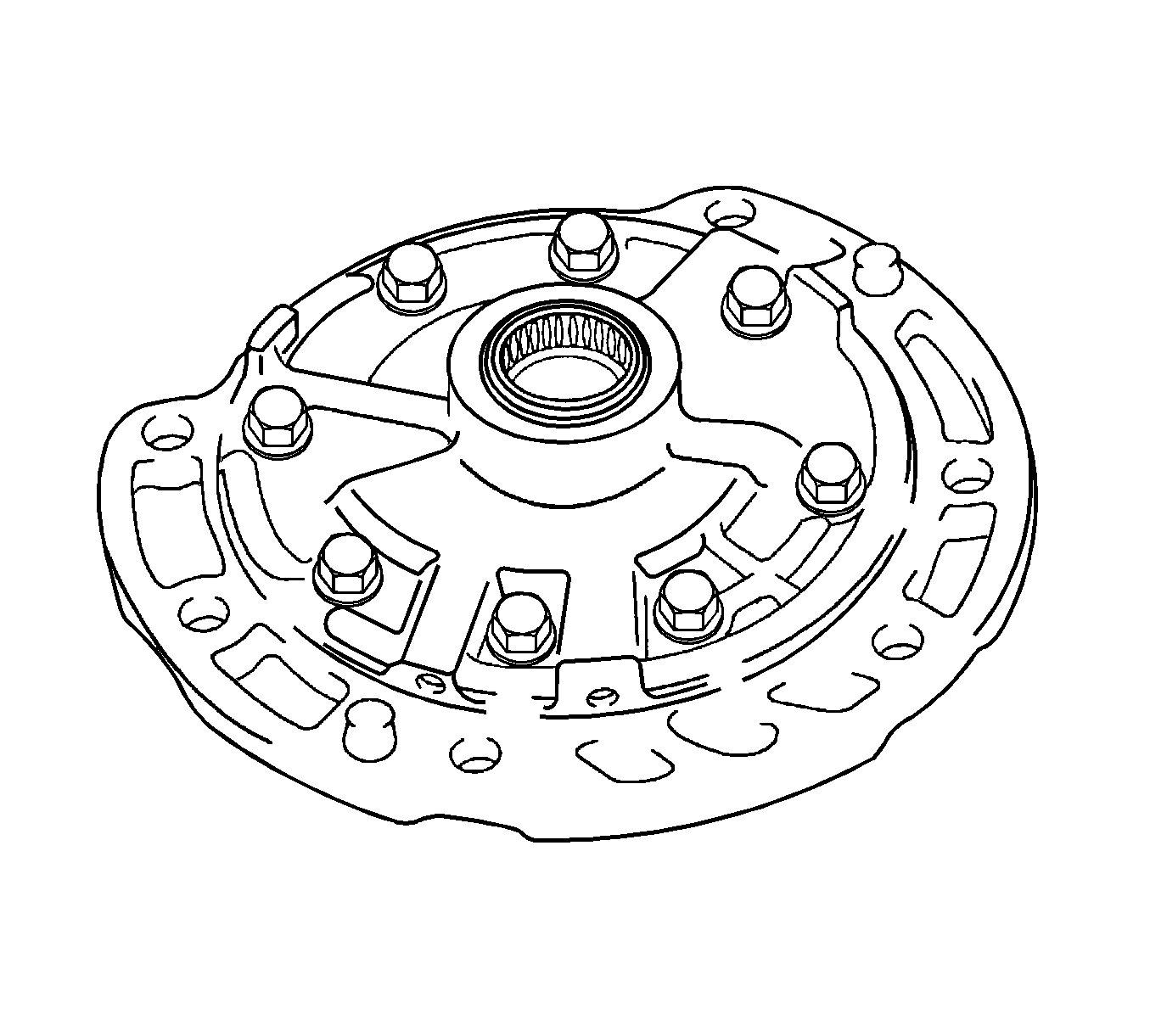

    2. Fig 2: Stator Shaft & Bolts
    GM1246012Courtesy of GENERAL MOTORS CORP.
  2. Align the stator shaft with each bolt hole.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the 8 bolts.

    Tighten:  Tighten the bolts to 9.8 N.m (87 lb in).

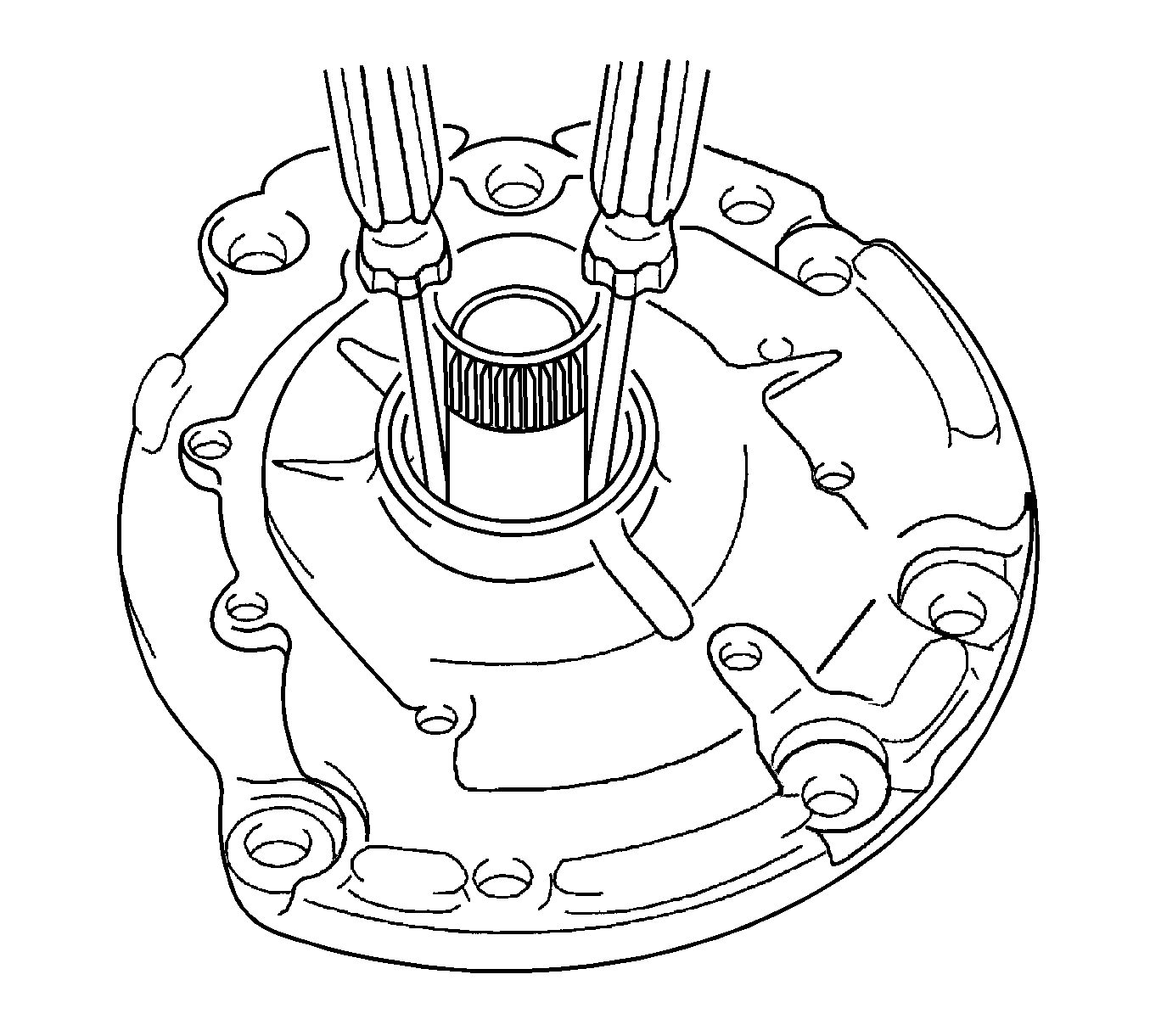

    4. Fig 3: Turning Drive Gear With 2 Screwdrivers
    GM1246010Courtesy of GENERAL MOTORS CORP.
    NOTE: Use extreme care when working around oil seals. Damage to the lip of a seal will cause oil leaks.
  4. Turn the drive gear with 2 screwdrivers and make sure it rotates smoothly.
