Draining Procedure
WARNING: This page is about a different variant/trim than selected.
- Raise and support the vehicle
- Place a suitable fluid drainage container under the transaxle.

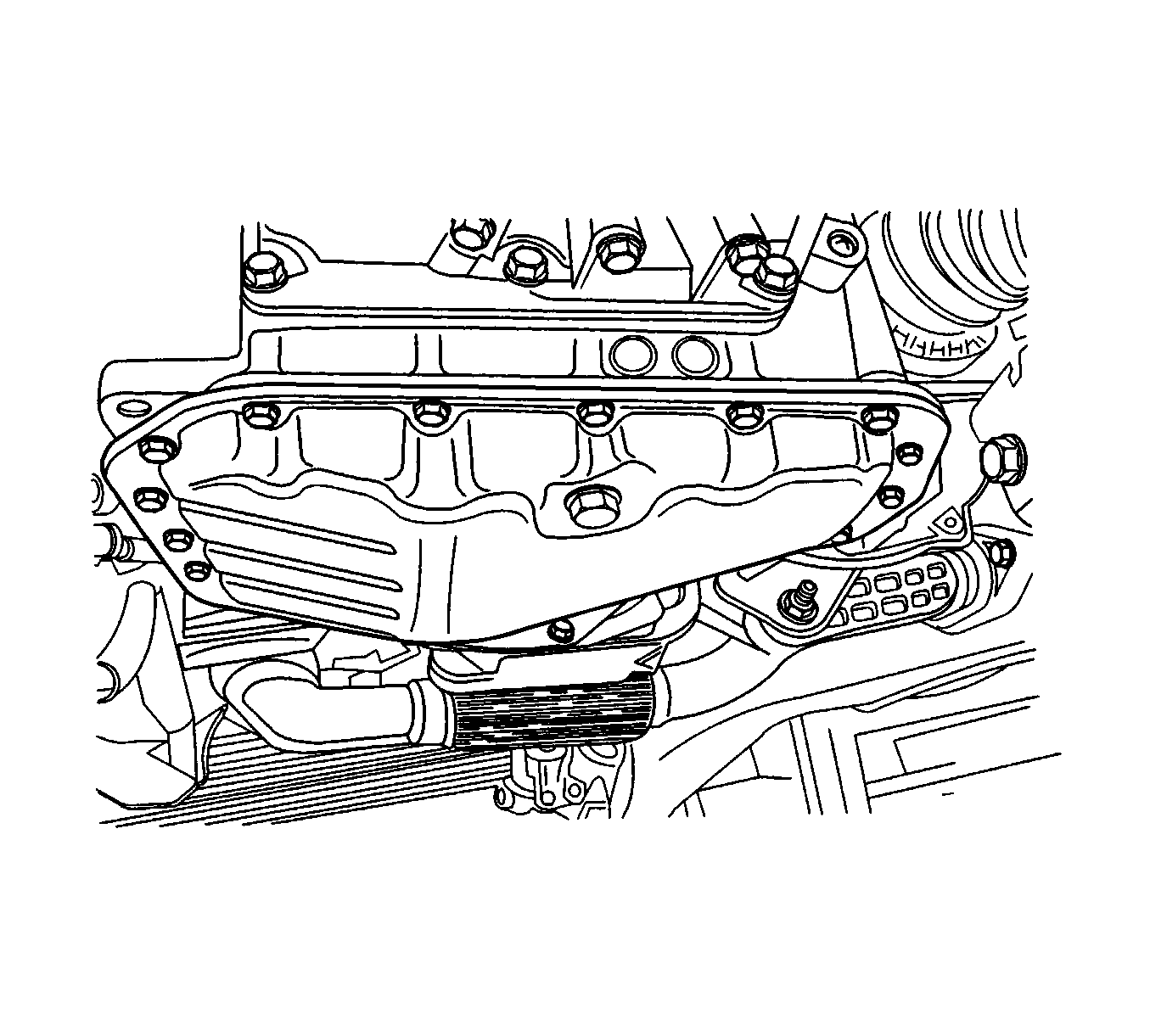

- Remove the fluid drain plug. Allow the fluid to drain completely.
- Clean the drain plug threads.
- Install the fluid drain plug.
Tighten: Tighten the fluid drain plug to 17 N.m (13 Ib ft).
NOTE:
Refer to Vehicle Lifting and Jacking Notice
in Cautions and Notices.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
