Counter Drive Gear Disassemble

WARNING: This page is about a different variant/trim than selected.

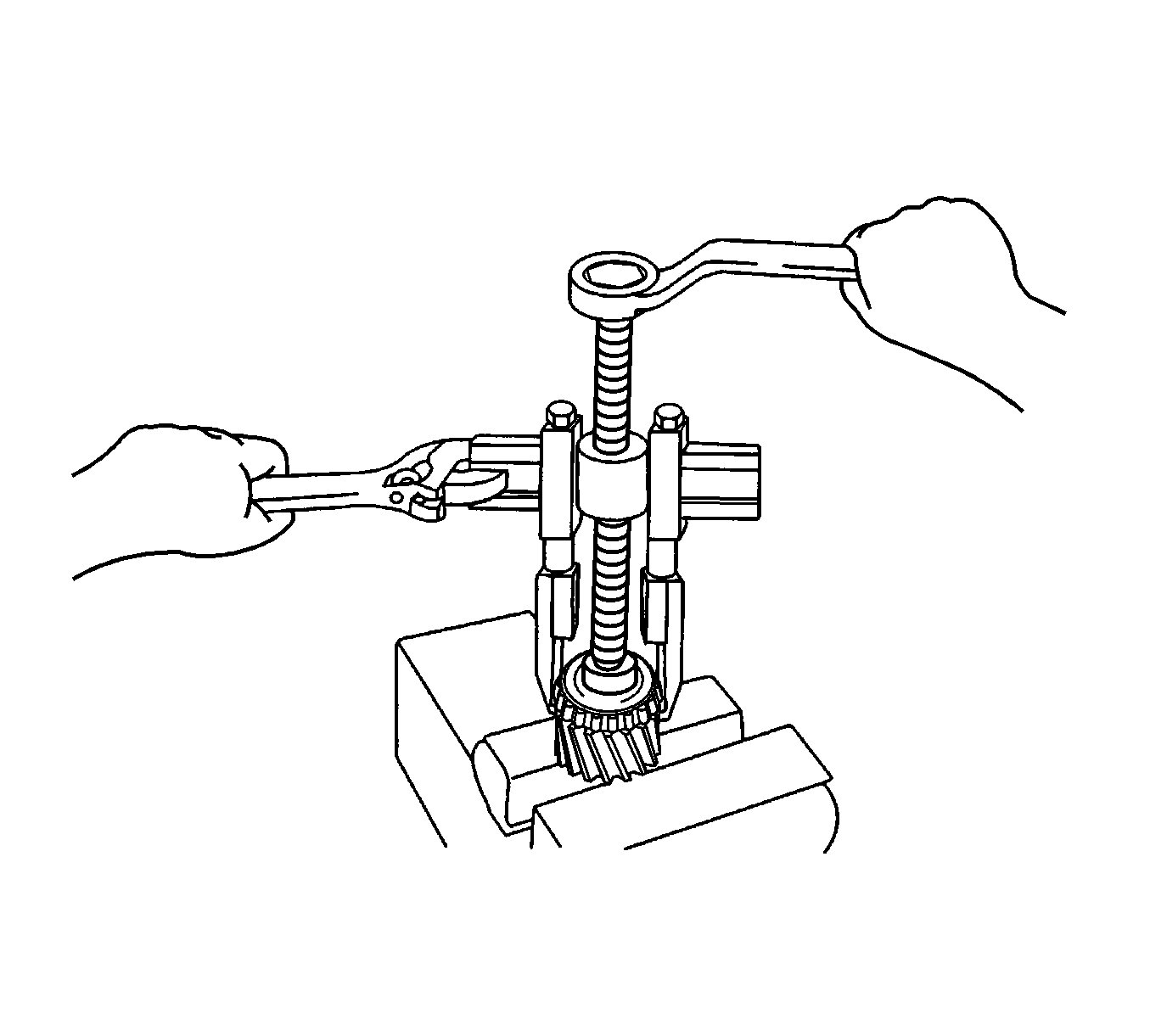

Fig 1: Removing Tapered Roller Bearing From Transaxle Case Side Using A Puller

Courtesy of GENERAL MOTORS CORP.

Using a suitable puller, remove the tapered roller bearing from the transaxle case side.

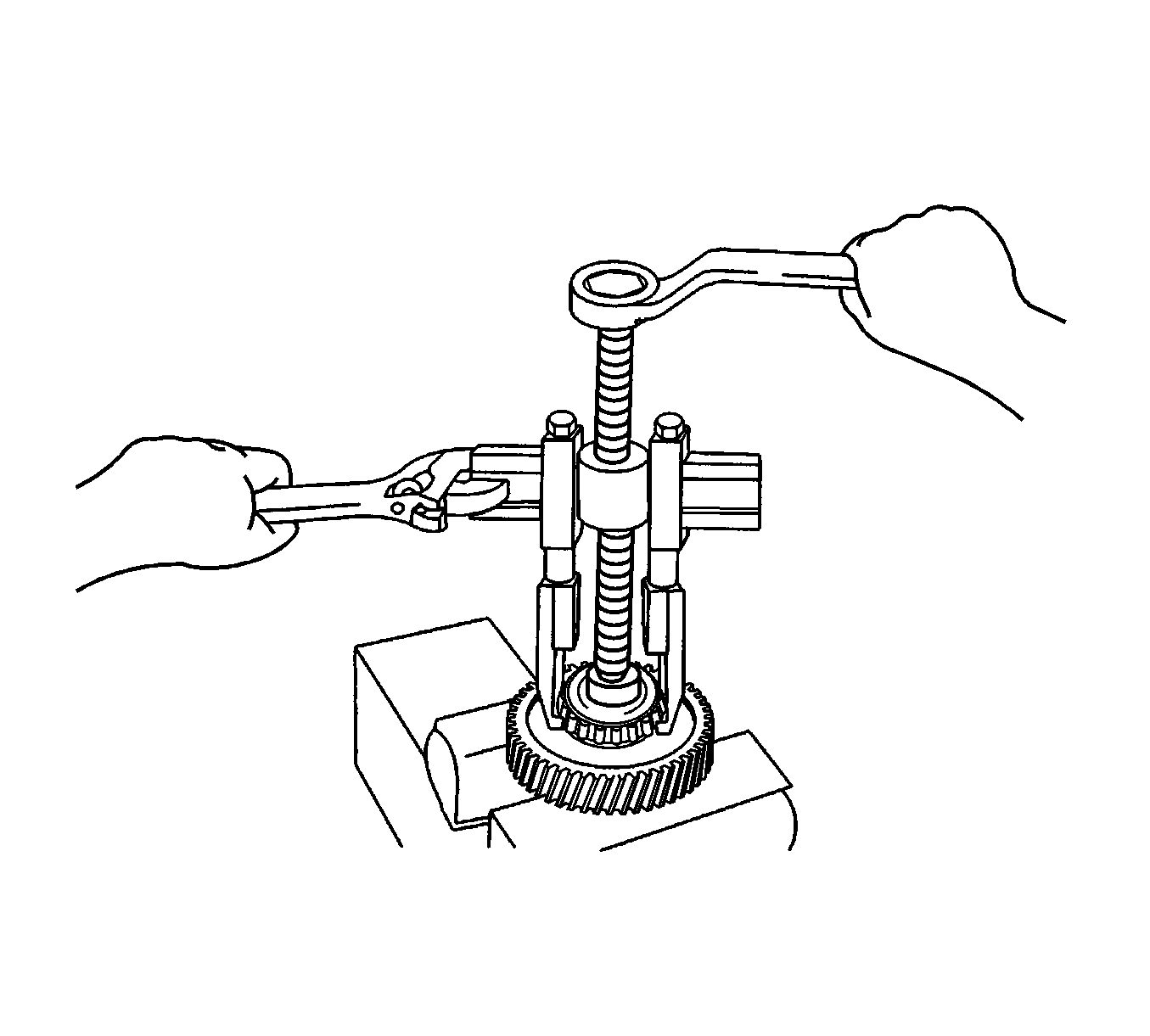

Fig 2: Counter Driven Gear

Courtesy of GENERAL MOTORS CORP.

Fig 3: Removing Outer & Tapered Roller Bearing Race Using A Puller

Courtesy of GENERAL MOTORS CORP.

Using a suitable puller, remove the tapered roller bearing.
Using a suitable puller, remove the outer tapered roller bearing race and shim from the transaxle case.
Using a suitable puller, remove the outer tapered roller bearing race from the transaxle housing.
