Timing Solenoid
WARNING: This page is about a different variant/trim than selected.

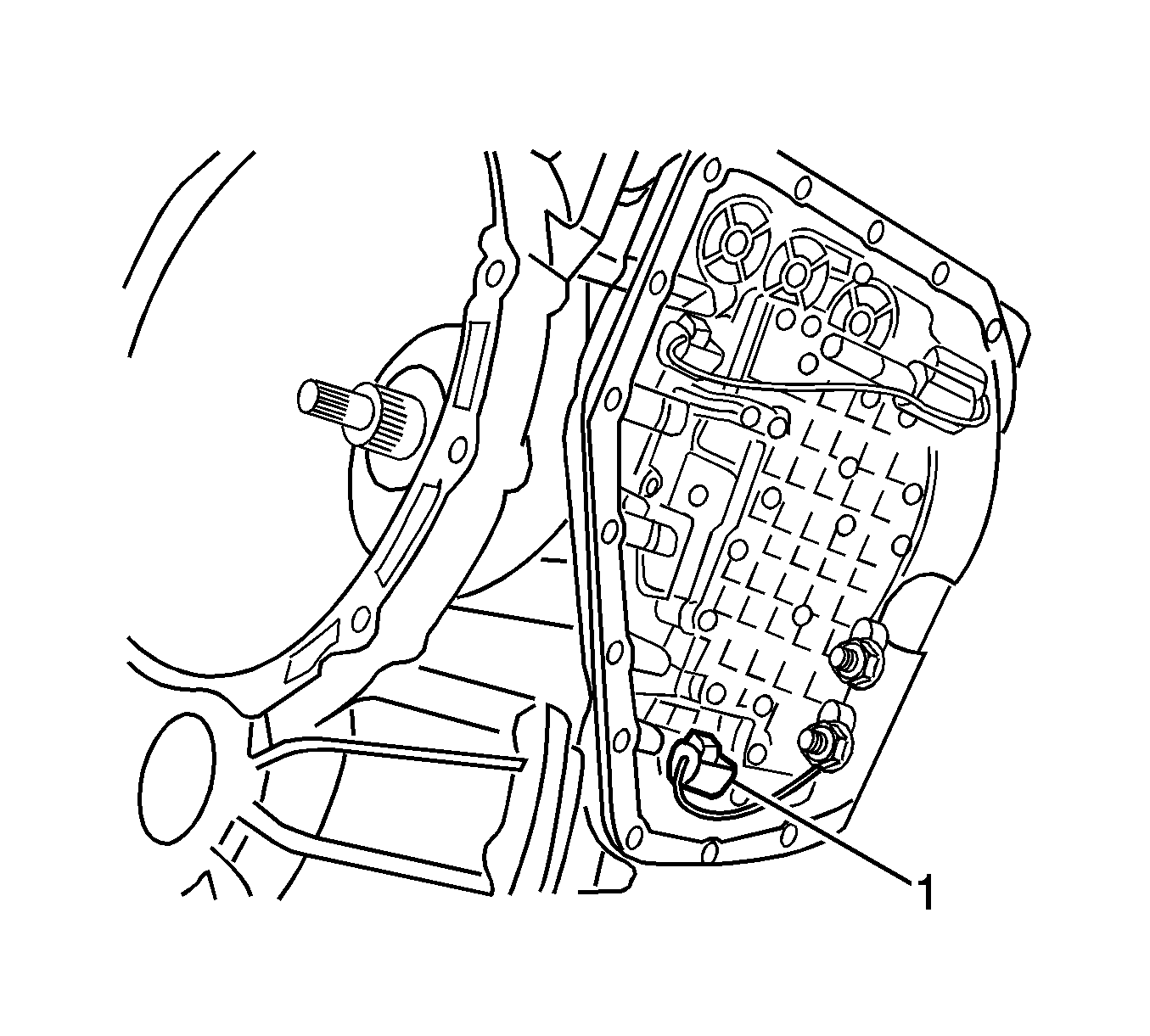

The timing solenoid (1) is installed directly in the valve body. The solenoid operates of ON/OFF by the control signal from TCM. The solenoid change timing valve of inside the valve body, operate hydraulic control with apply and drain of forward clutch.
