Lock-Up Solenoid

The lock-up solenoid (1) is installed in the valve body. It receives control signal from TCM.

The lock-up solenoid operates the lock-up valve inside the valve body and controls the torque converter lockup function.

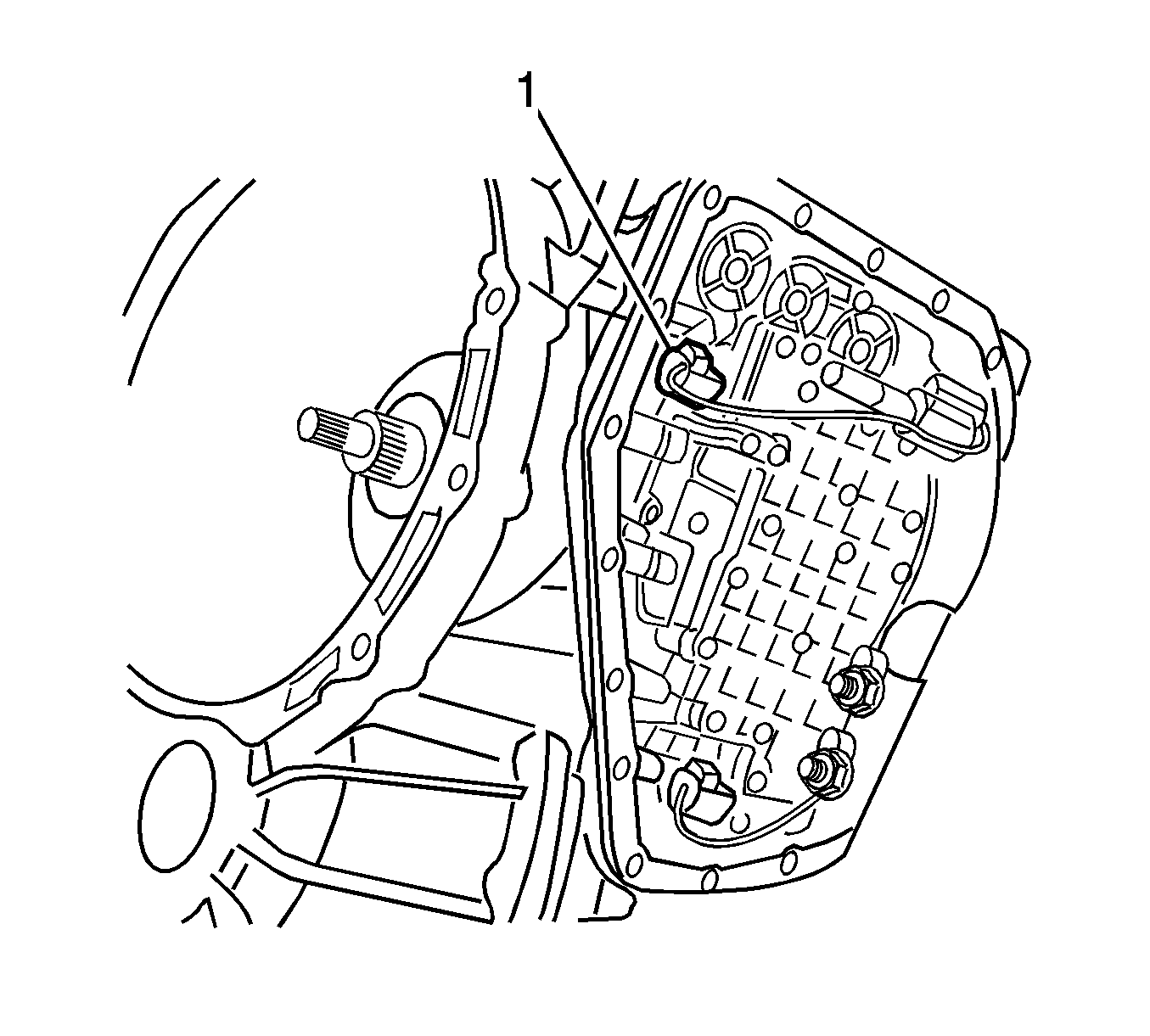

Fig 1: Lock-Up Solenoid

Courtesy of GENERAL MOTORS CORP.
