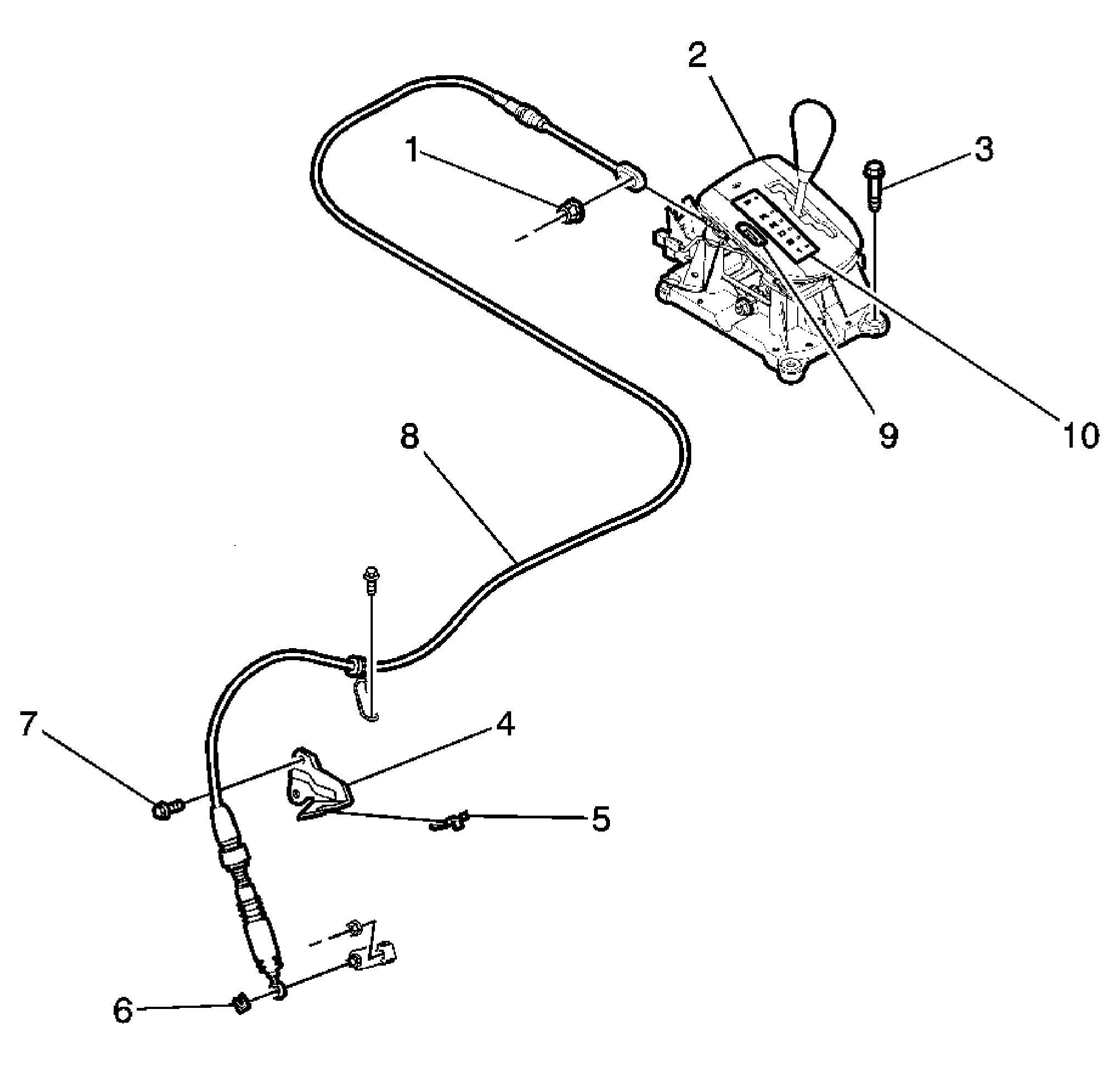

Shift Select Control
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Nut |
| 2 |
Select Control Lever Assembly |
| 3 |
Bolt |
| 4 |
Cable Fastener |
| 5 |
Clamp |
| 6 |
E-Ring |
| 7 |
Bolt |
| 8 |
Select Control Cable |
| 9 |
Shift Program Switch |
| 10 |
Shift Indicator Lamp |
