One Way Clutch Assemble

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: One-Way Clutch & 2nd Brake Hub

Courtesy of GENERAL MOTORS CORP.

Install the retainer to the 2nd brake hub.
Install the one-way clutch.

Fig 2: Snap Ring, 2nd Brake Hub & Screwdriver

Courtesy of GENERAL MOTORS CORP.

Using a screwdriver, install the snap ring.

Fig 3: View Of One-Way Clutch And Thrust Washer , & Rear Planetary Sun Gear

Courtesy of GENERAL MOTORS CORP.

Install the one-way clutch and thrust washer to the rear planetary sun gear.

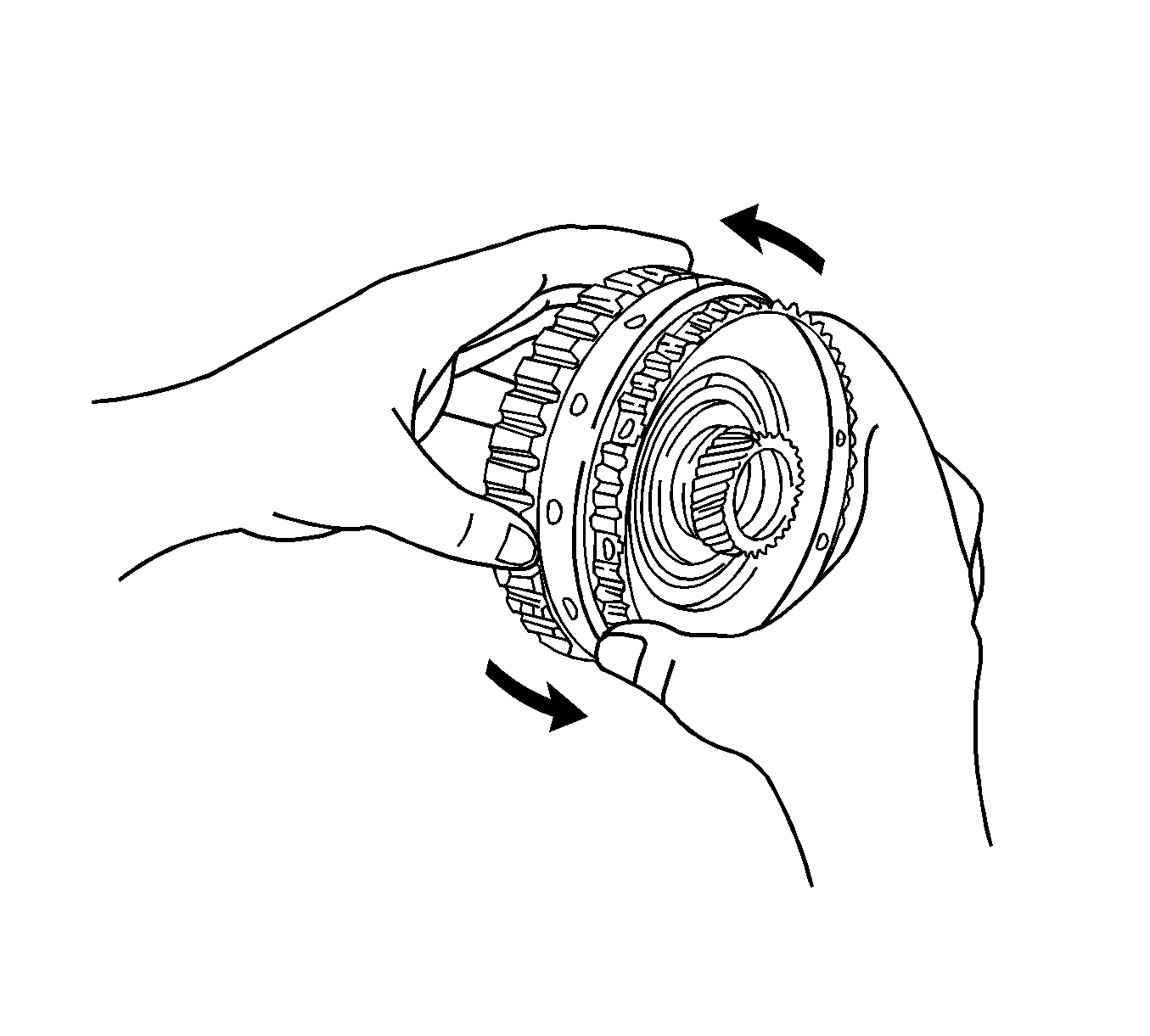

Hold the rear planetary sun gear and turn the one-way clutch. The one-way clutch should turn freely counterclockwise and should lock clockwise.
