Automatic Transmission Controls Schematics (Hatchback)

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

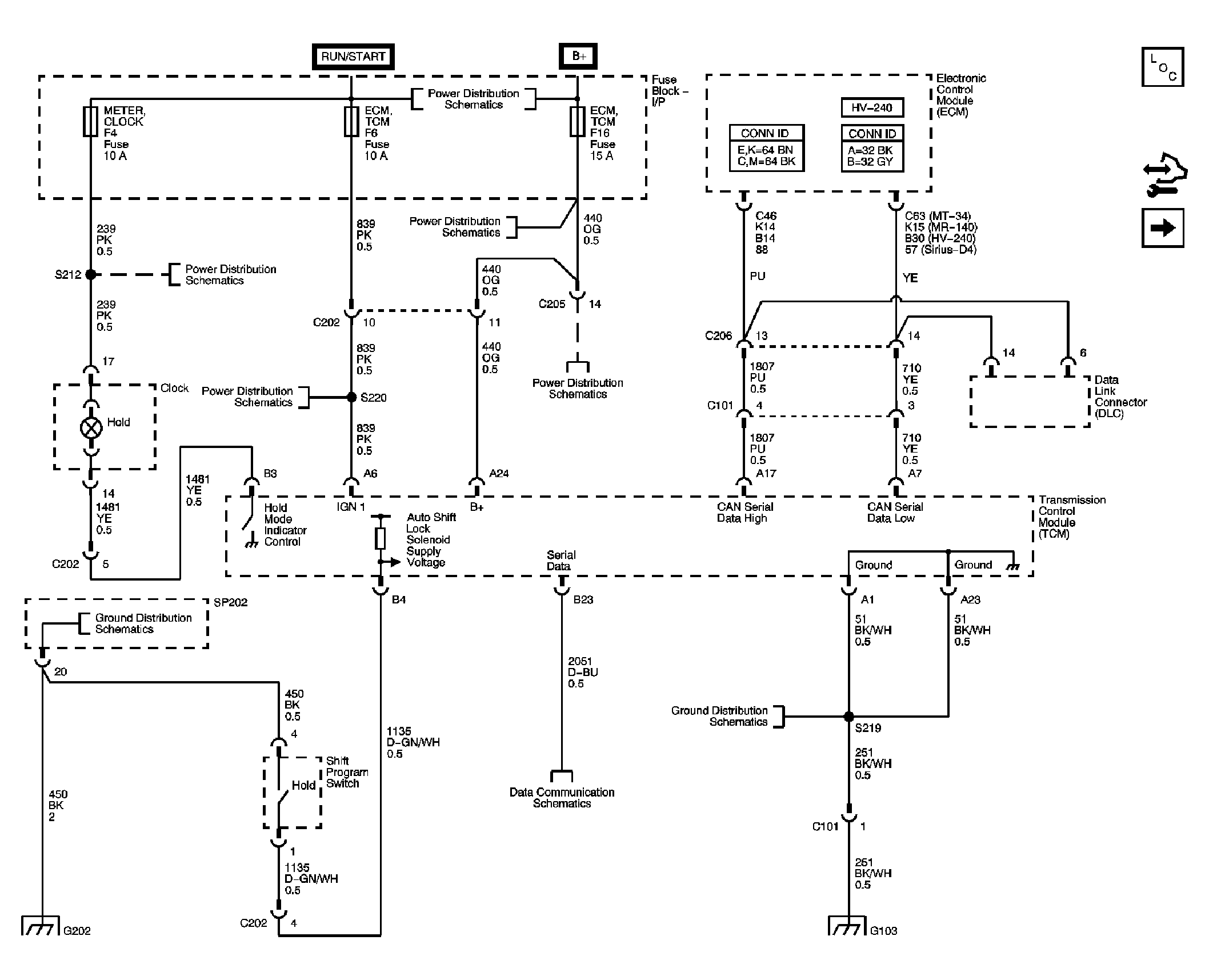

Fig 1: Transmission Control Module
GM1945982Courtesy of GENERAL MOTORS CORP.

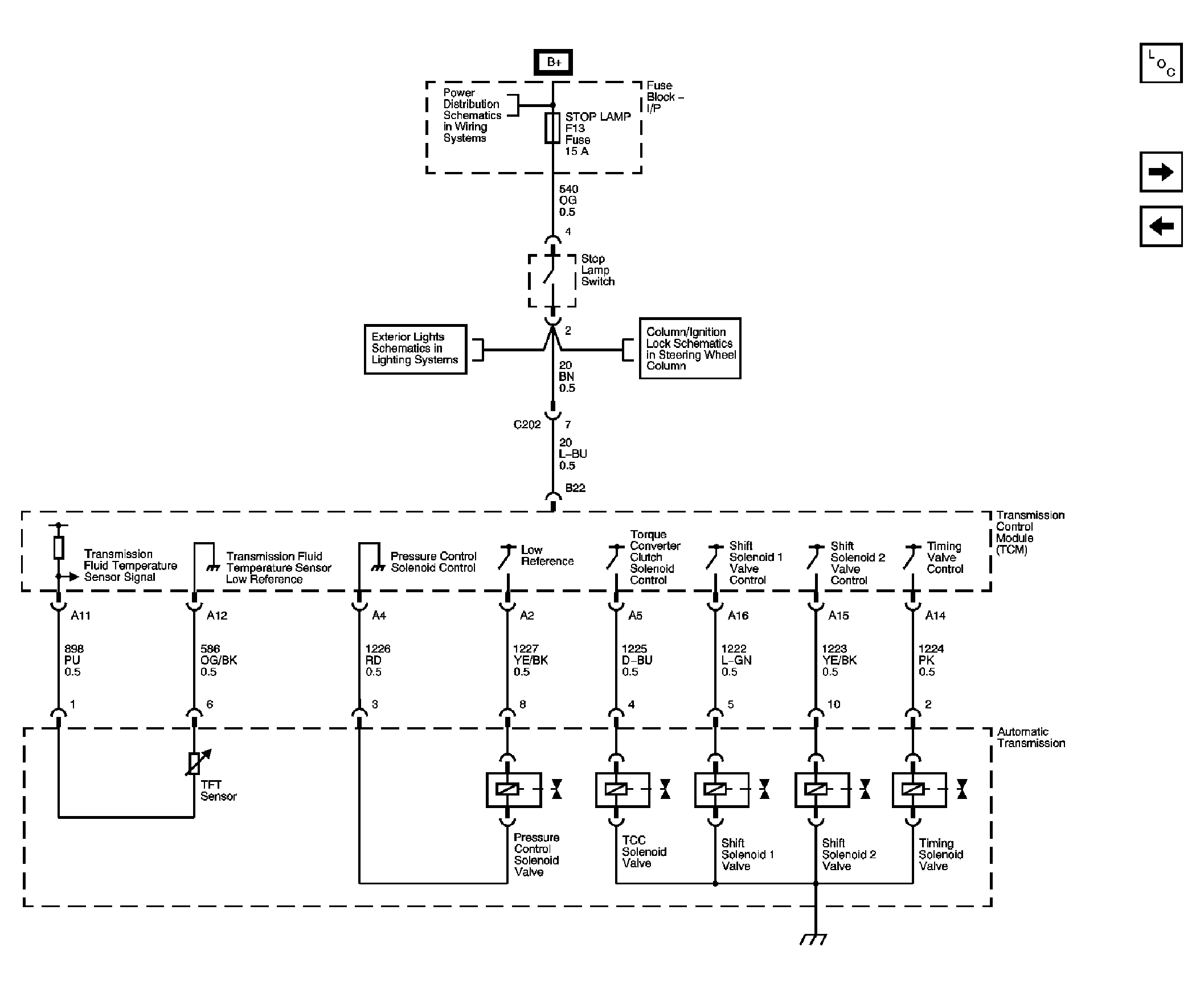

Fig 2: Stop Lamp Switch And Transaxle Valves
GM1680270Courtesy of GENERAL MOTORS CORP.

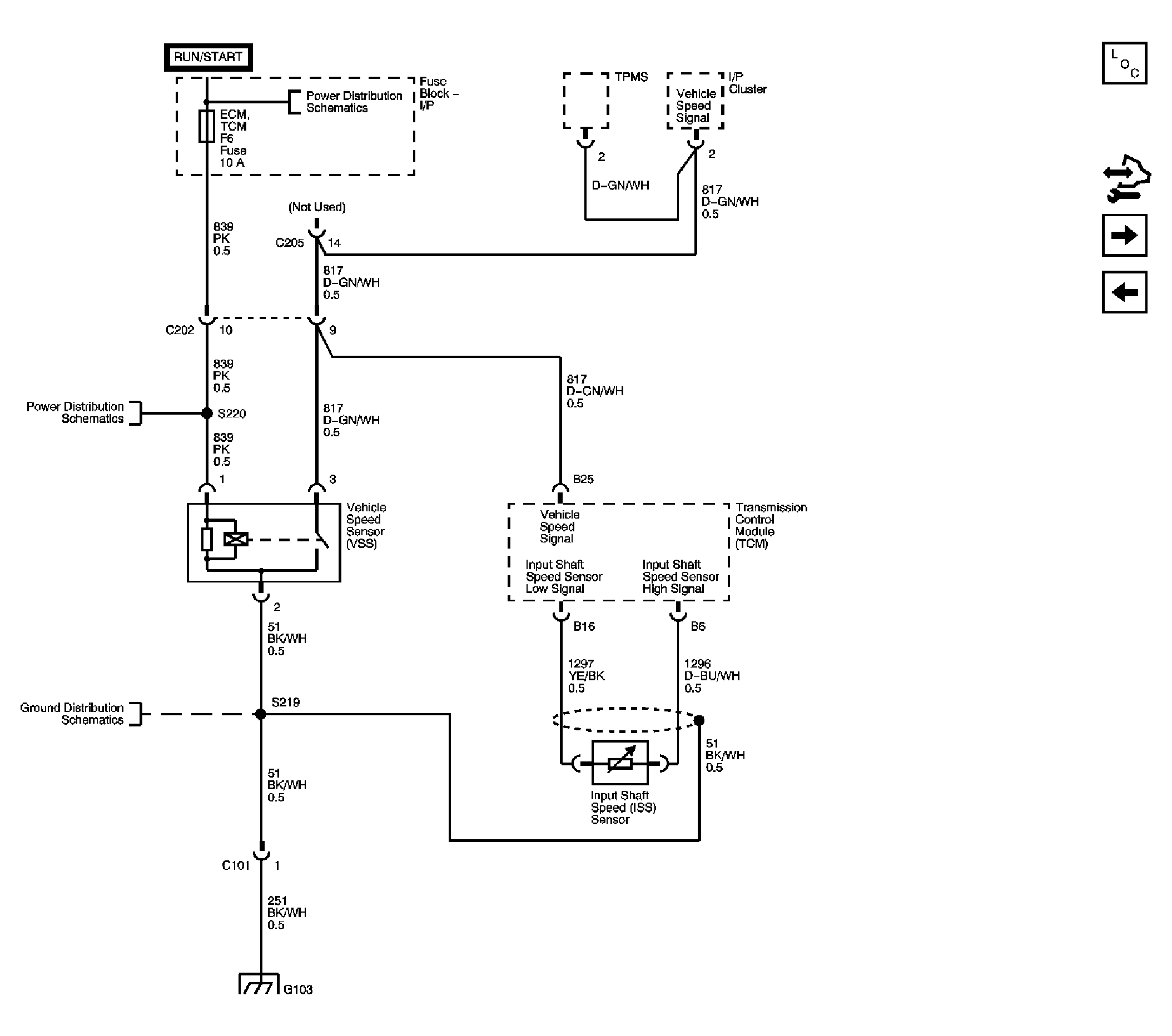

Fig 3: Transmission Control Module, VSS
GM1946068Courtesy of GENERAL MOTORS CORP.

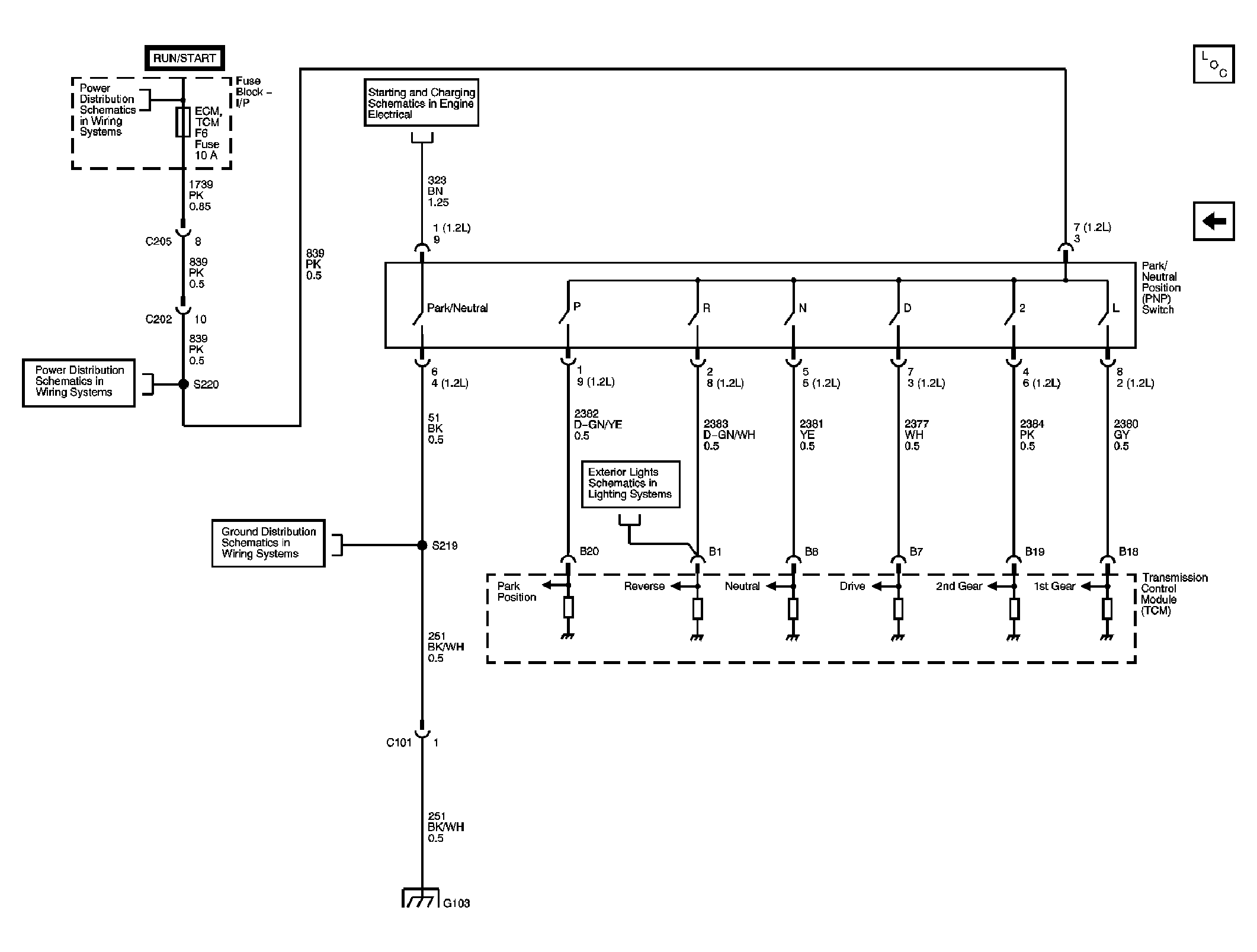

Fig 4: PNP Switch
GM1630195Courtesy of GENERAL MOTORS CORP.
