Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

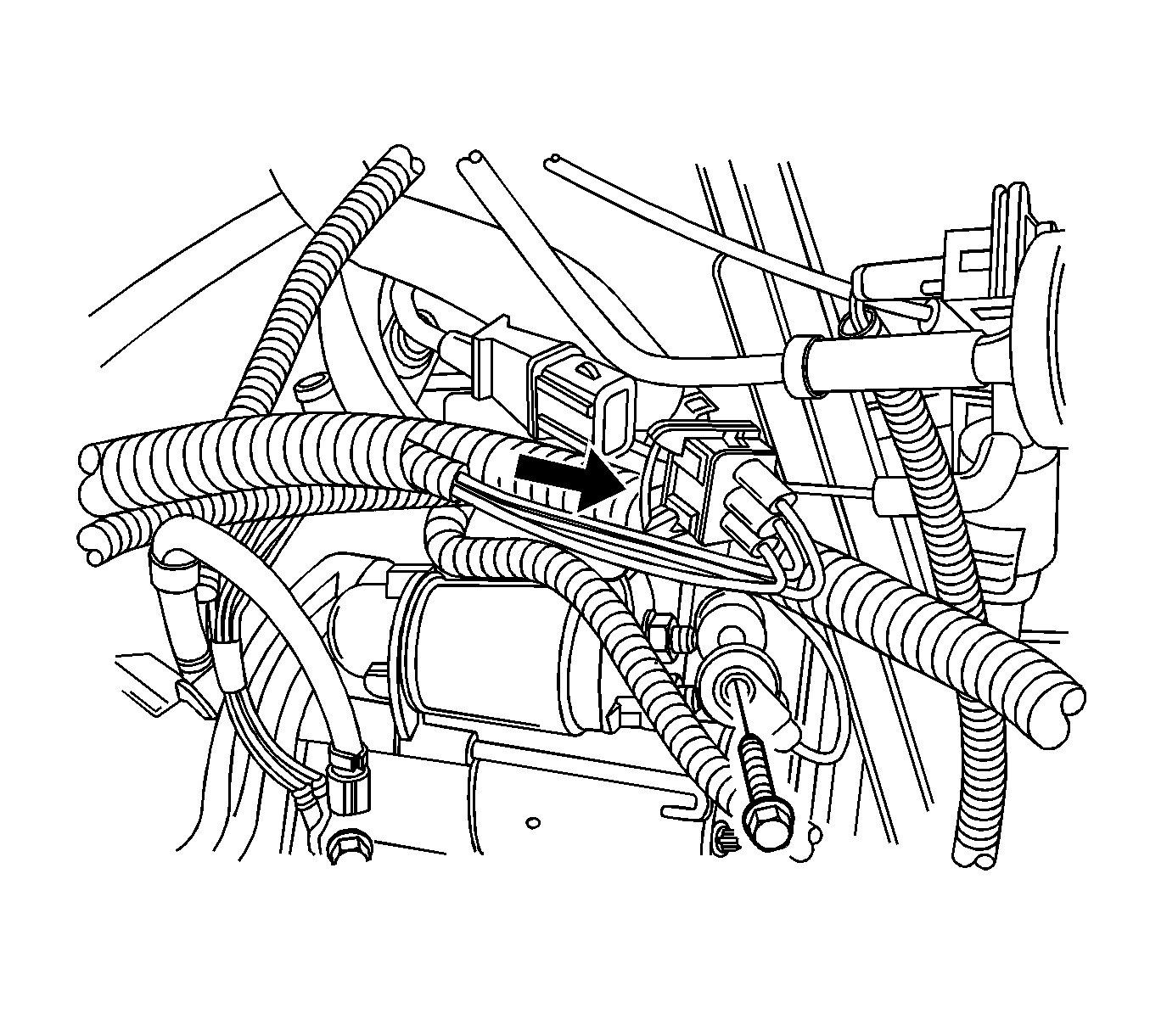

    Fig 1: Knock Sensor (KS) Electrical Connector
    GM1922092Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the KS with the bolt.

    Tighten:  Tighten the KS bolt to 20 N.m (15 lb ft).

  2. Connect the KS electrical connector.

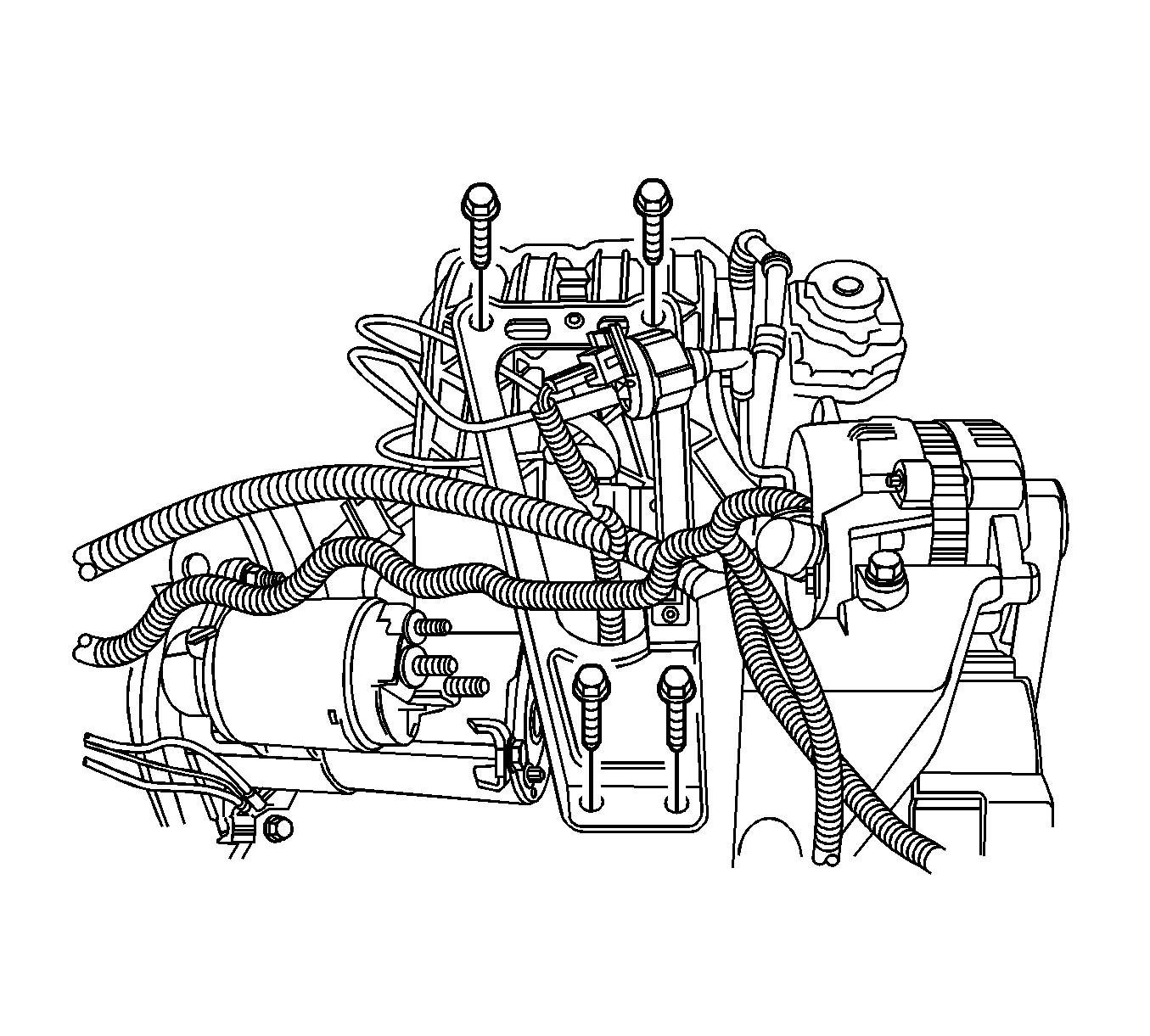

    3. Fig 2: Intake Manifold Bracket Bolts And Bracket
    GM1922090Courtesy of GENERAL MOTORS CORP.
  3. Install the intake manifold bracket and bolts.

    Tighten:

    • Tighten the bracket upper bolt to 25 N.m (18 lb ft).
    • Tighten the bracket lower bolt to 45 N.m (33 lb ft).

  4. Connect the negative battery cable.
