Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

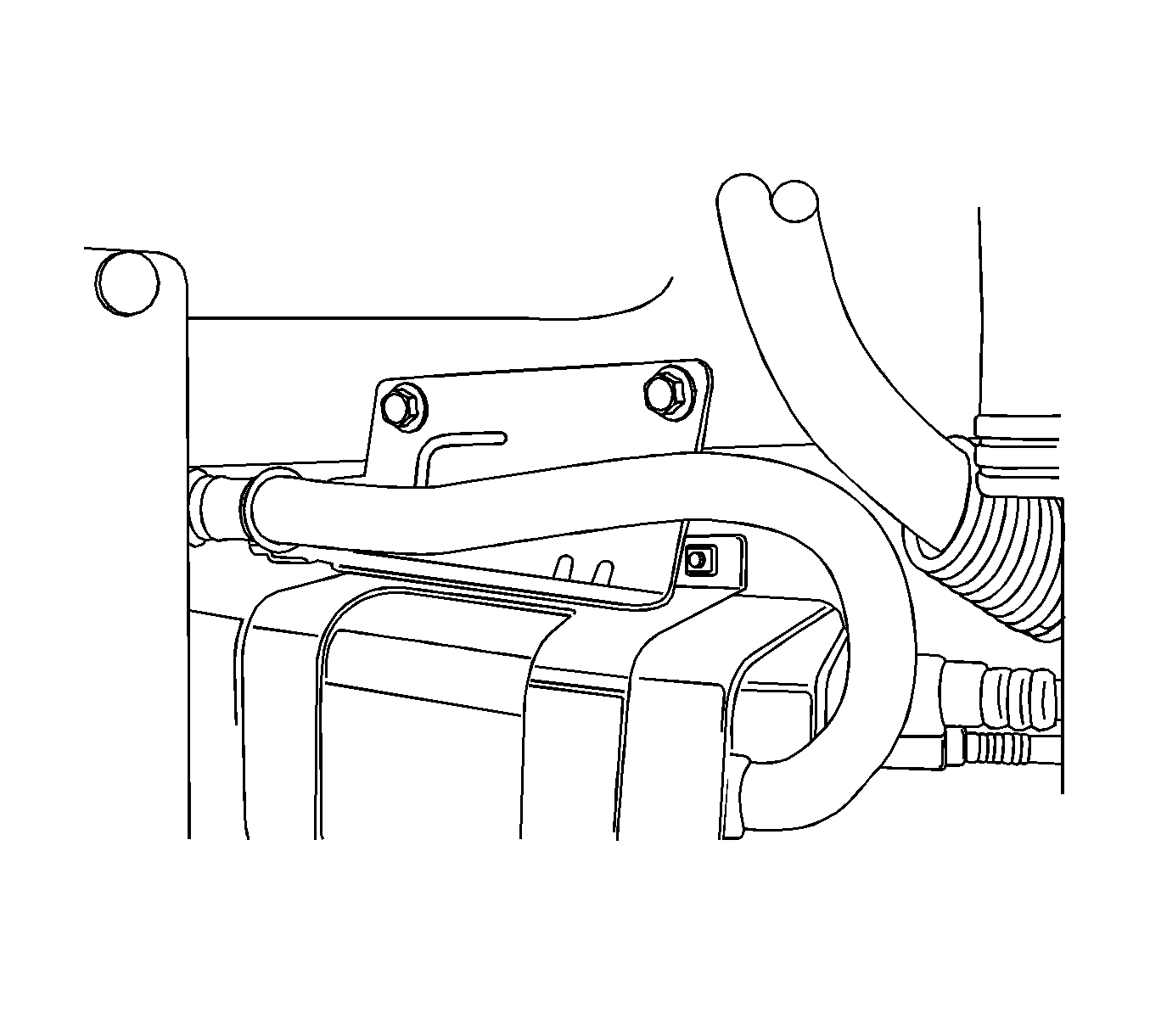

    Fig 1: Canister Track
    GM1921212Courtesy of GENERAL MOTORS CORP.
  1. Insert the canister into the track and slide it into position.
    2. NOTE: Refer to Fastener Notice .
  2. Install the canister flange bolt.

    Tighten:  Tighten the evaporative emission (EVAP) canister flange bolt to 4 N.m (35 lb in).

  3. Connect the canister fuel vapor hoses.
