Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

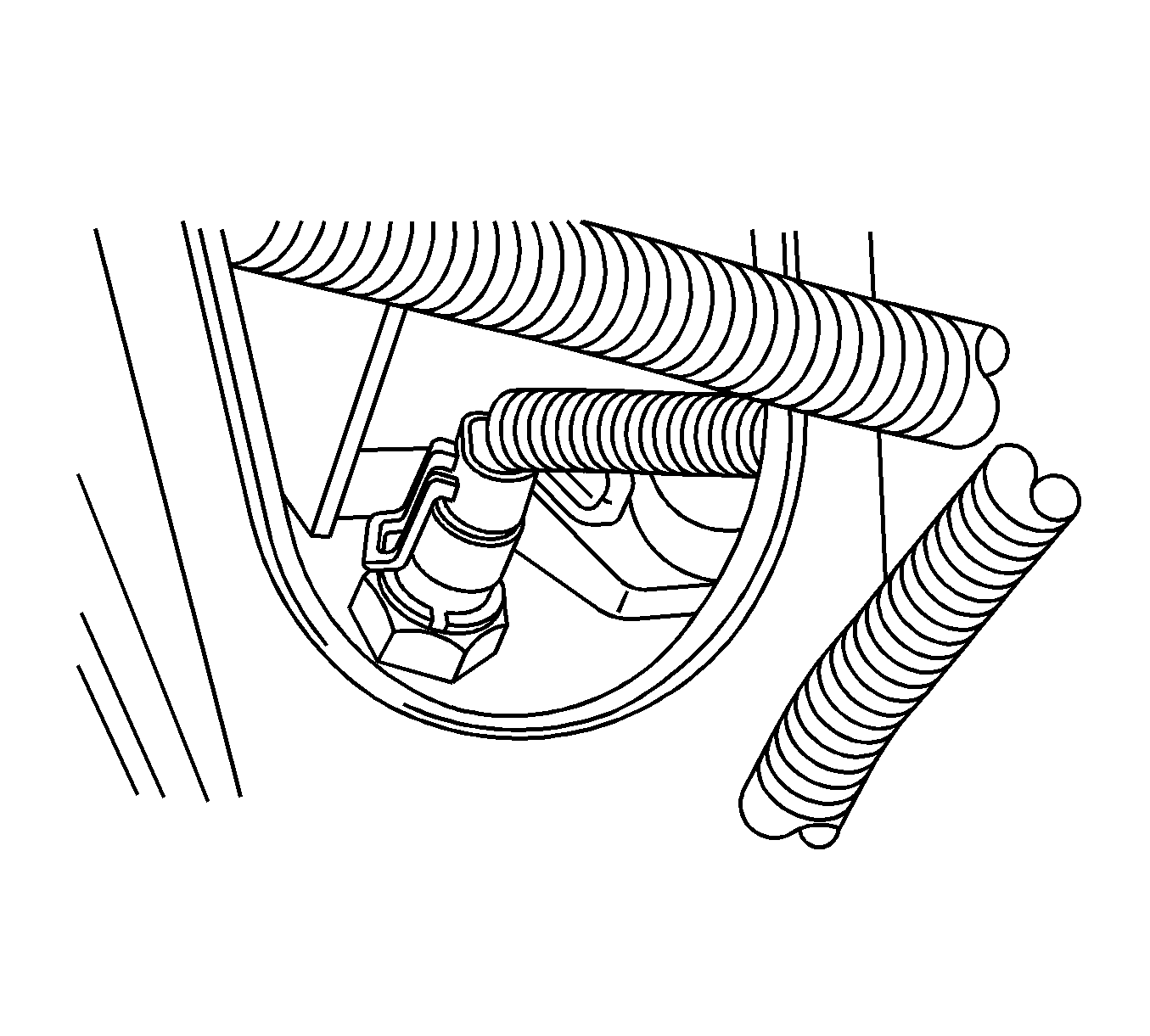

    Fig 1: Engine Coolant Temperature Sensor
    GM1915899Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the ECT sensor.

    Tighten:  Tighten the ECT sensor to 20 N.m (15 lb ft).

  2. Connect the ECT sensor connector.
  3. Fill the cooling system. Refer to Cooling System Draining and Filling .
  4. Connect the negative battery cable.
