Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

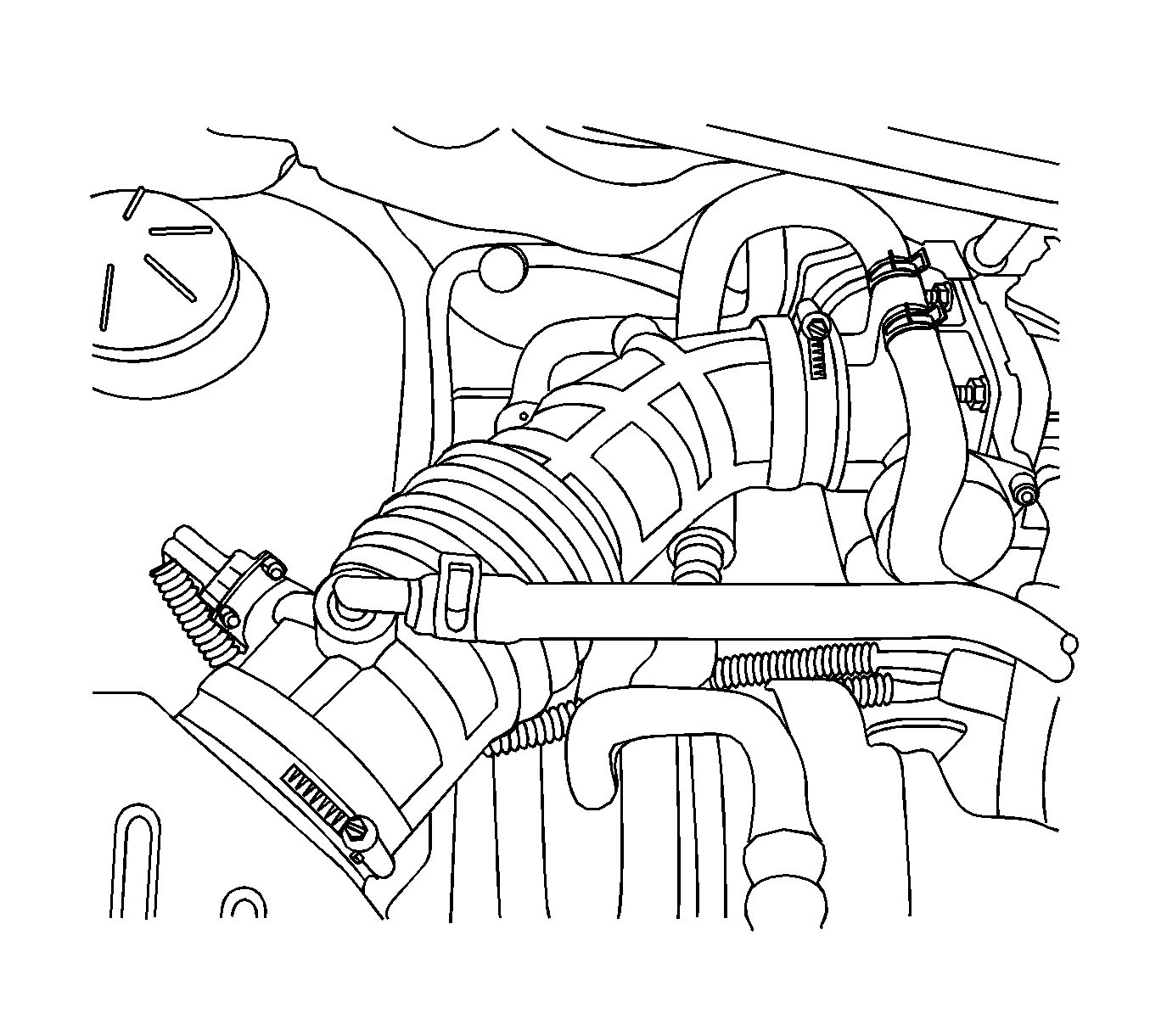

    Fig 1: Air Cleaner Intake Duct
    GM1916113Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: An improperly installed air cleaner intake duct or breather tube will cause incorrect sensor readings resulting in MIL illumination or a drivability concern.
  1. Install the air cleaner intake duct.
    2. NOTE: Refer to Fastener Notice .
  2. Tighten the clamps securing the air cleaner intake duct.

    Tighten:  Tighten the clamp to 3 N.m (27 lb in).

  3. Connect the breather tube to the air cleaner intake duct.
  4. Connect the electrical connector to the IAT sensor.
