Automatic Transaxle Identification Number Plate Location

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

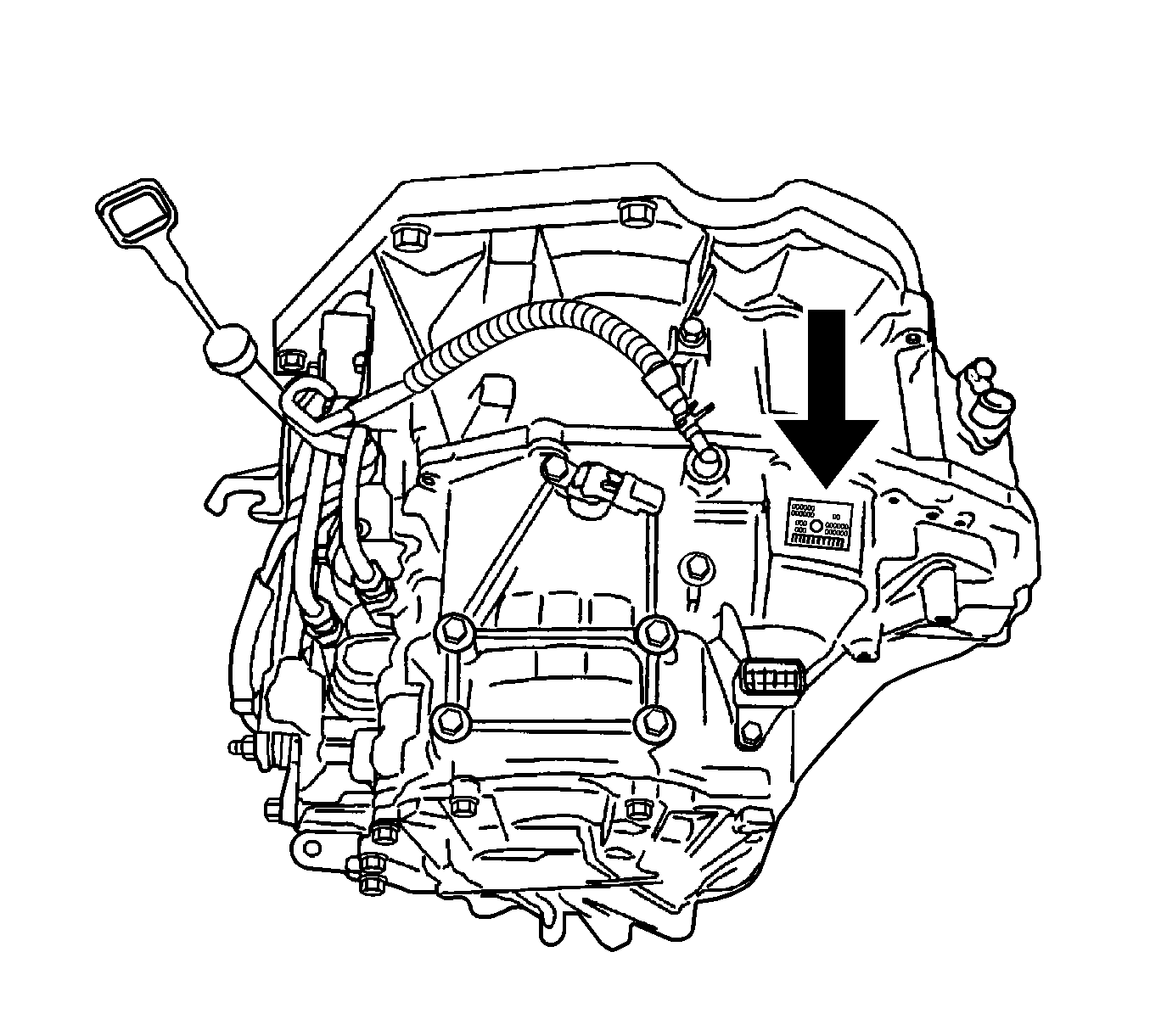

Fig 1: Locating Automatic Transmission Identification Number Plate
GM1241527Courtesy of GENERAL MOTORS CORP.

The automatic transaxle identification number plate is attached on the upper side of the transaxle case.
