Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

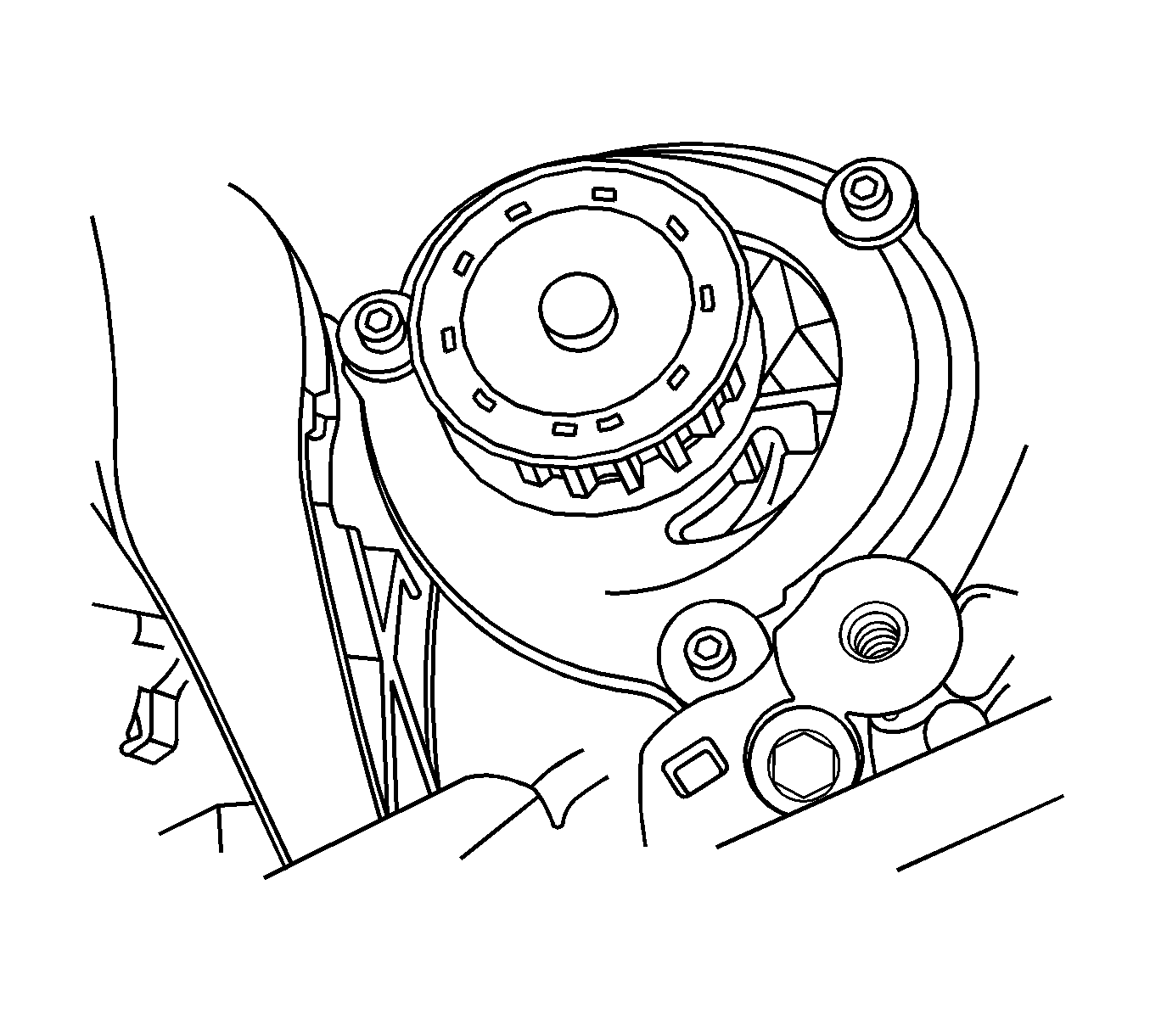

    Fig 1: View Of Coolant Pump
    GM1241814Courtesy of GENERAL MOTORS CORP.
  1. Drain the engine cooling system to a level below the thermostat housing. Refer to Cooling System Draining and Filling .
  2. Remove the timing belt rear hood. Refer to Timing Belt Replacement.
  3. Remove the coolant pump mounting bolts.
  4. Remove the coolant pump from the cylinder block.
  5. Remove the ring seal from the coolant pump.
