Antilock Braking Mode - Apply
WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

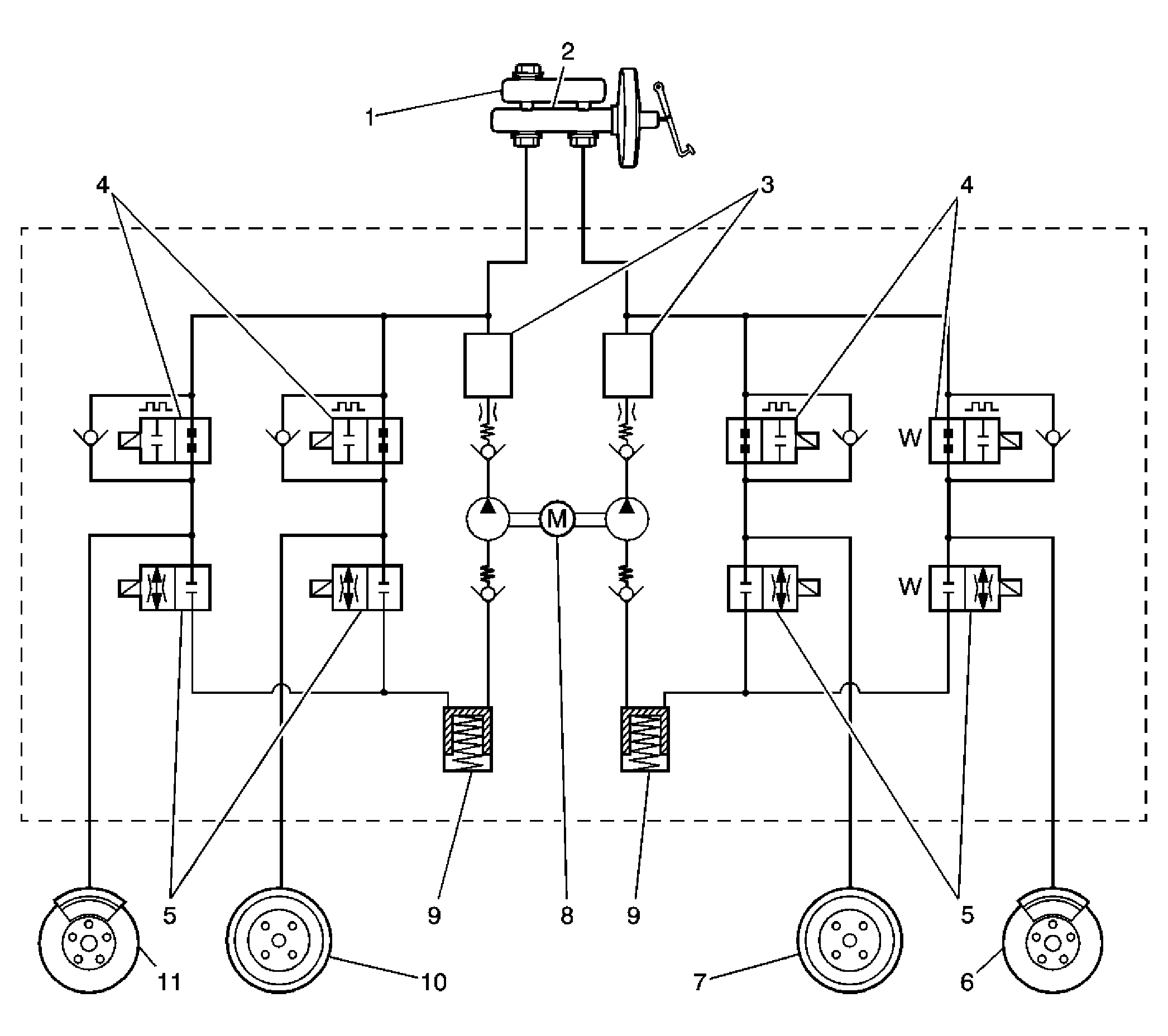

| Callout | Component Name |
|---|---|
| 1 | Reservoir |
| 2 | Master Cylinder |
| 3 | High Pressure Accumulator |
| 4 | Normally Open Valve |
| 5 | Normally Closed Valve |
| 6 | Left Front |
| 7 | Right Rear |
| 8 | Pump |
| 9 | Low Pressure Accumulator |
| 10 | Left Rear |
| 11 | Right Front |
If during the pressure hold or pressure decrease mode the electronic brake control module (EBCM) senses that wheel slip has reduced, the EBCM will increase the pressure to the affected wheels by applying master cylinder pressure. The inlet valve is opened and the outlet valve is closed, now base brake master cylinder pressure can be applied to the wheel.
