Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

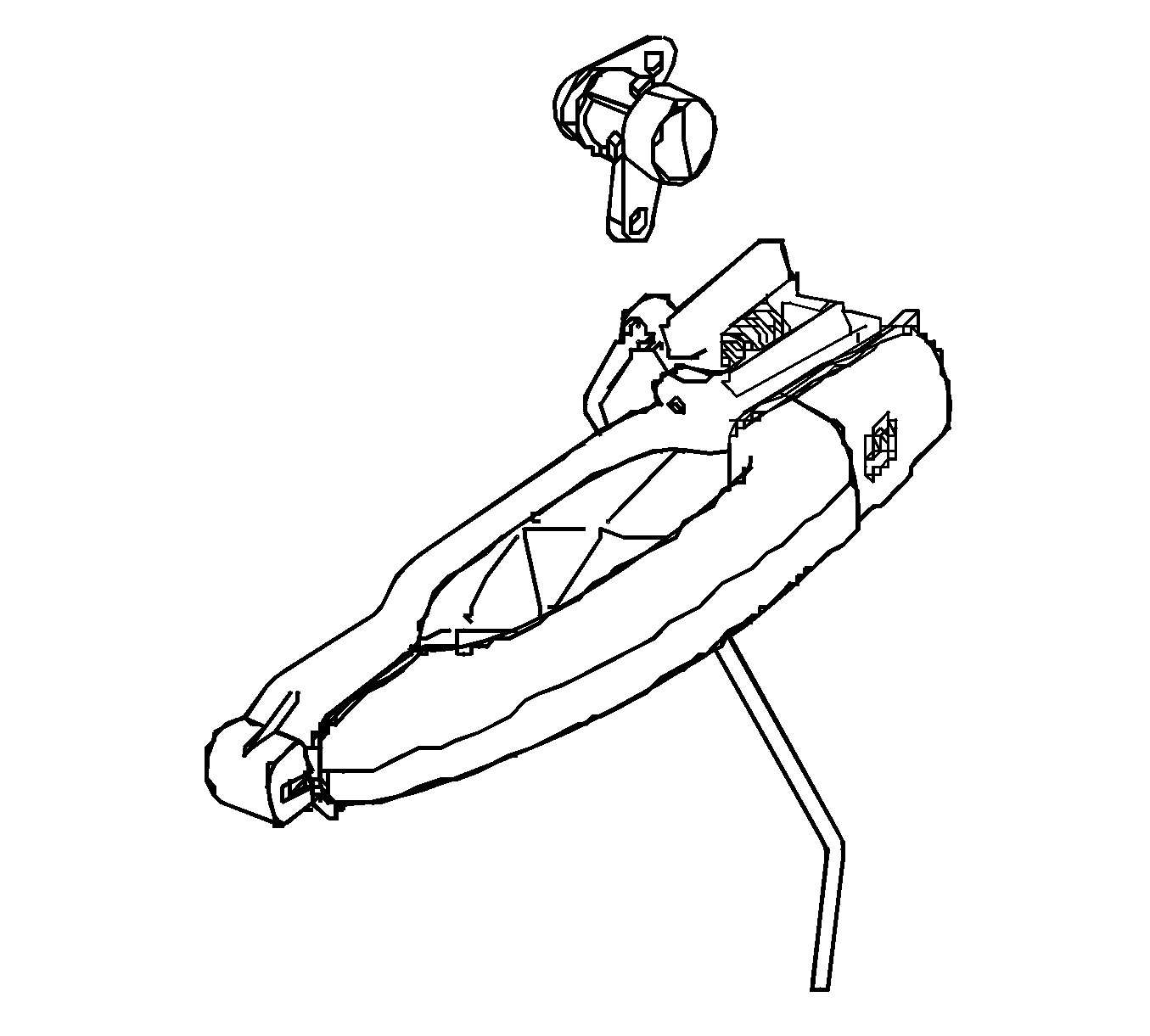

    Fig 1: Outside Door Handle Assembly
    GM1720602Courtesy of GENERAL MOTORS CORP.
  1. Remove the water deflector. Refer to Door Water Deflector Replacement .
  2. Disconnect the outside door handle and the lock rods.
  3. Remove the retaining clip and the lock cylinder.
