Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

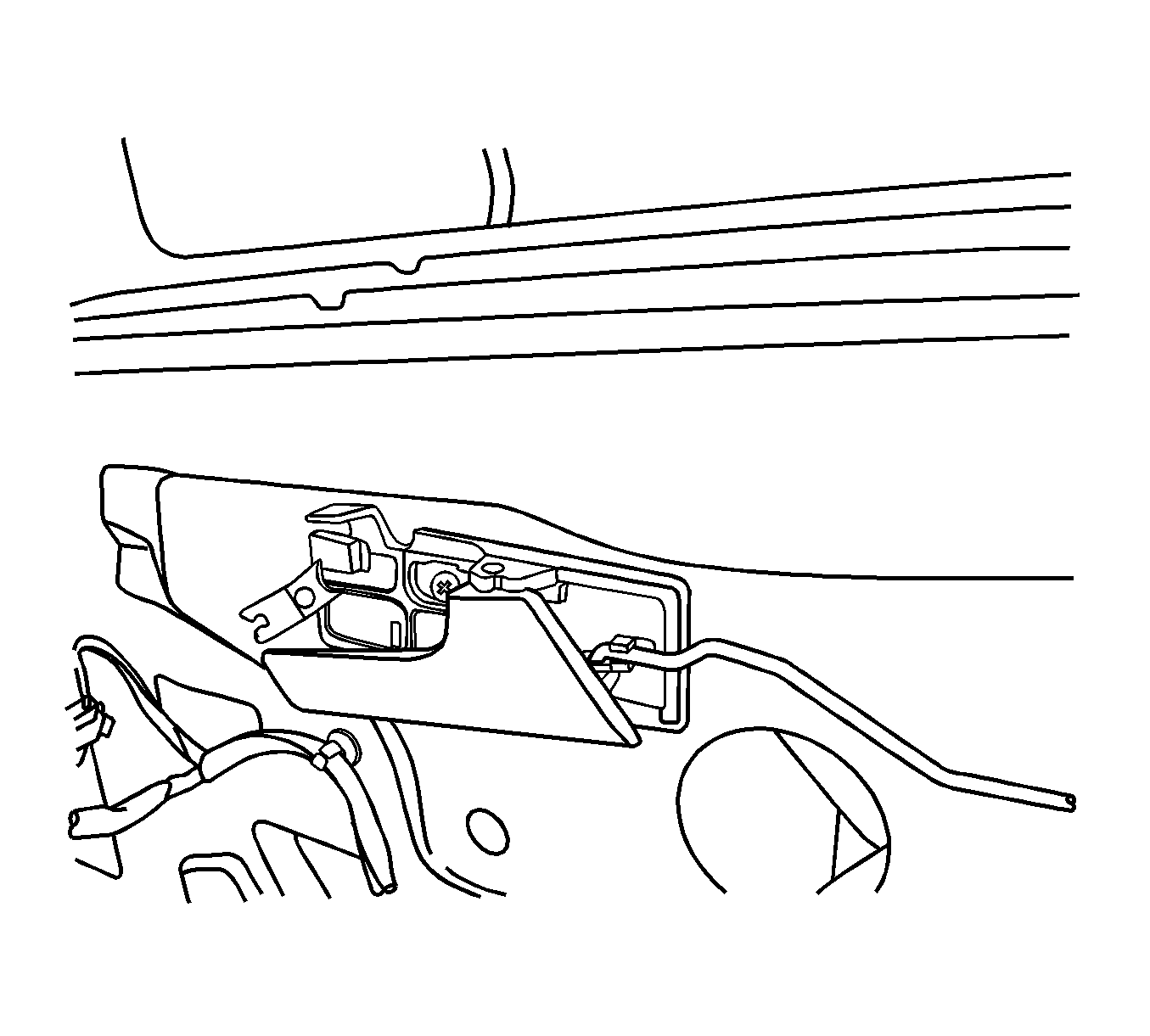

    Fig 1: Inside Door Handle Lock Assembly
    GM1720578Courtesy of GENERAL MOTORS CORP.
  1. Remove the water deflector. Refer to Door Water Deflector Replacement .
  2. Remove the screw securing the door handle to the door.
  3. Disconnect the inside door handle and the lock rods.
