Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

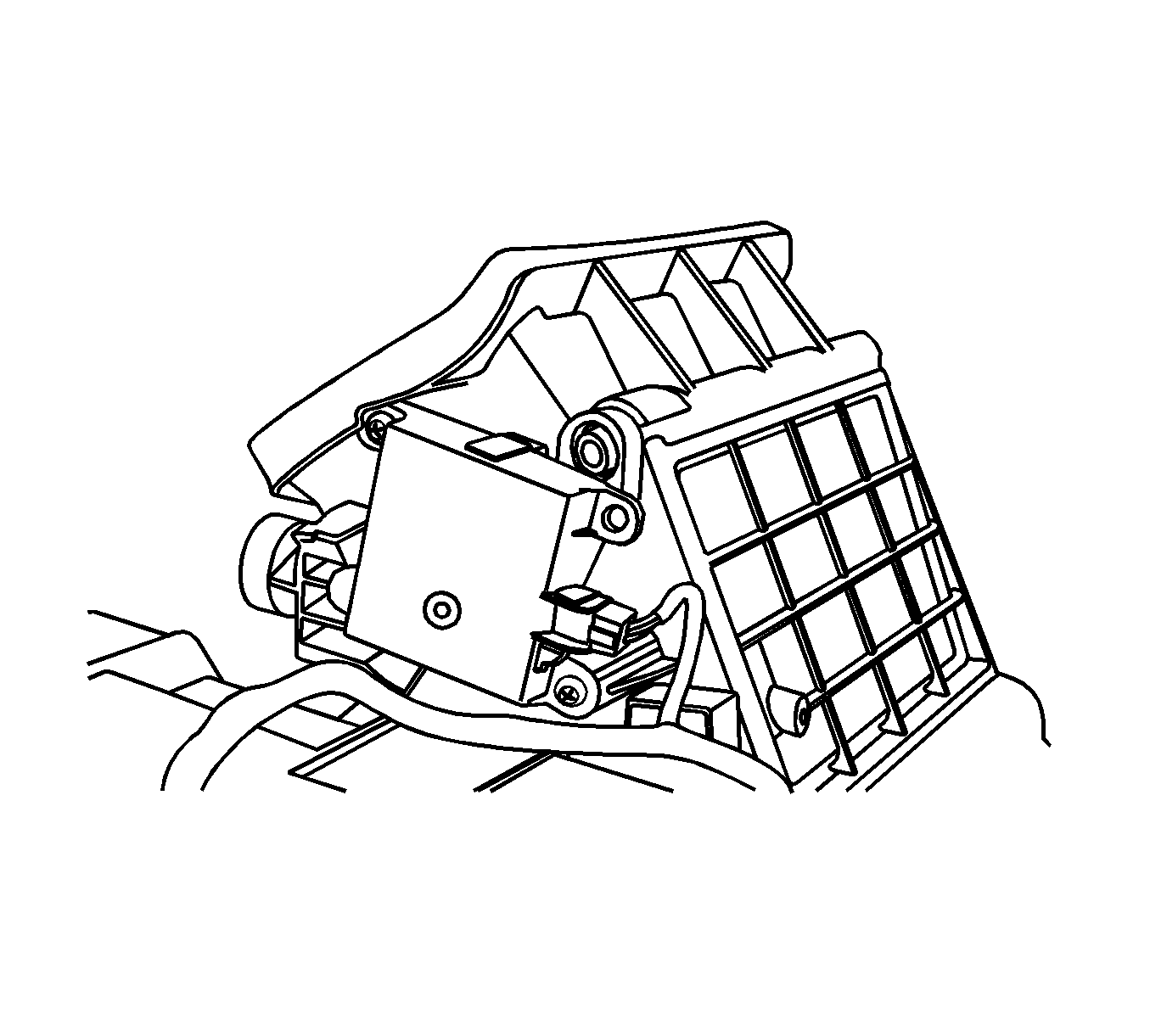

    Fig 1: Recirculation Actuator
    GM1817423Courtesy of GENERAL MOTORS CORP.
  1. Install the motor.
  2. Install the motor retaining bolts and tighten.
  3. Connect the electrical connector.
  4. Install the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Notchback) or Instrument Panel Assembly Replacement (Hatchback)
  5. Connect the negative battery cable.
