Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

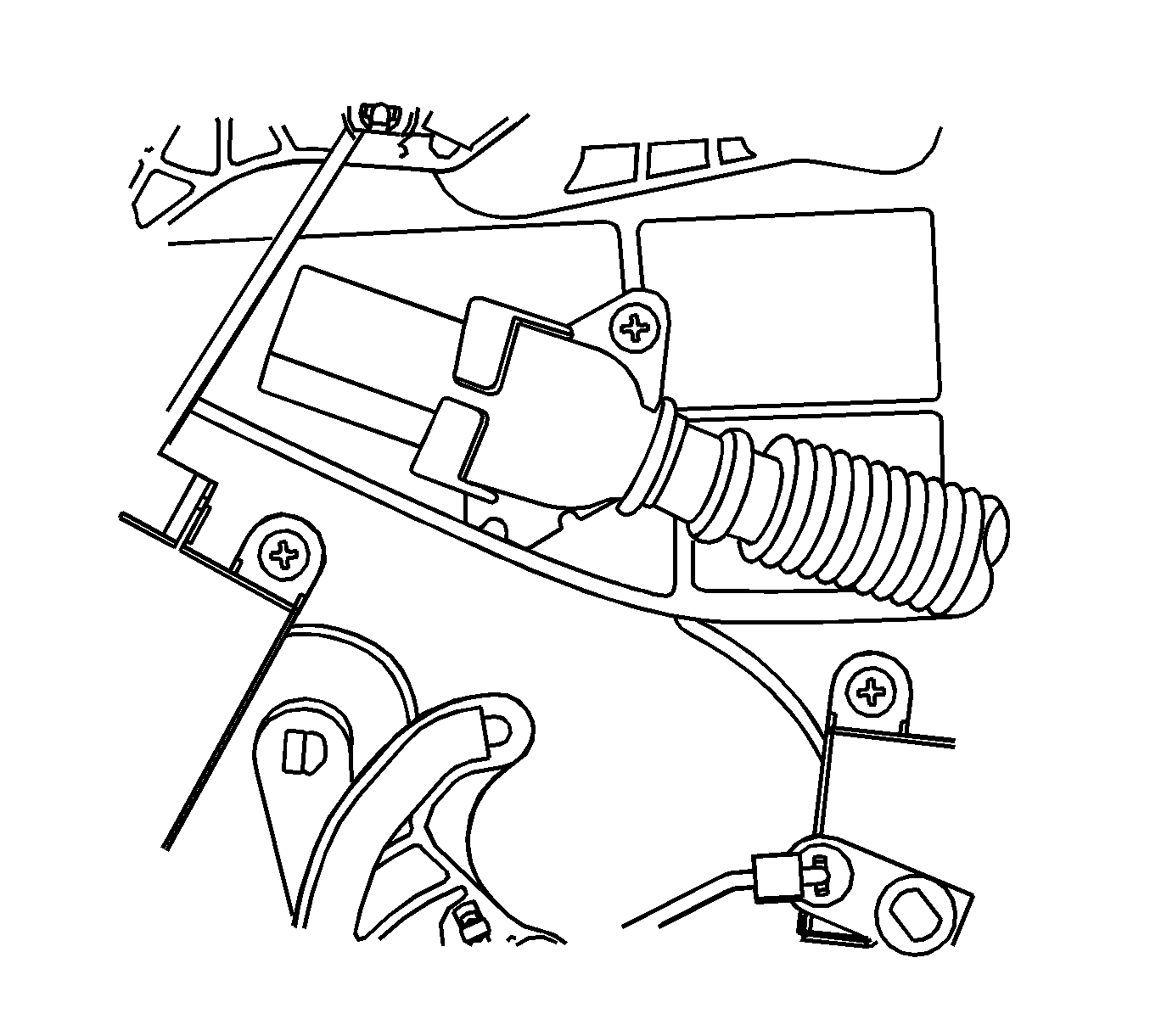

    Fig 1: Inside Air Temperature Sensor
    GM1817430Courtesy of GENERAL MOTORS CORP.
  1. Install the inside air temperature sensor with the retaining screws and tighten.
  2. Install the air inlet tube and connect the electrical connector.
  3. Install instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Notchback) or Instrument Panel Assembly Replacement (Hatchback)
  4. Connect the negative battery cable.
