Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

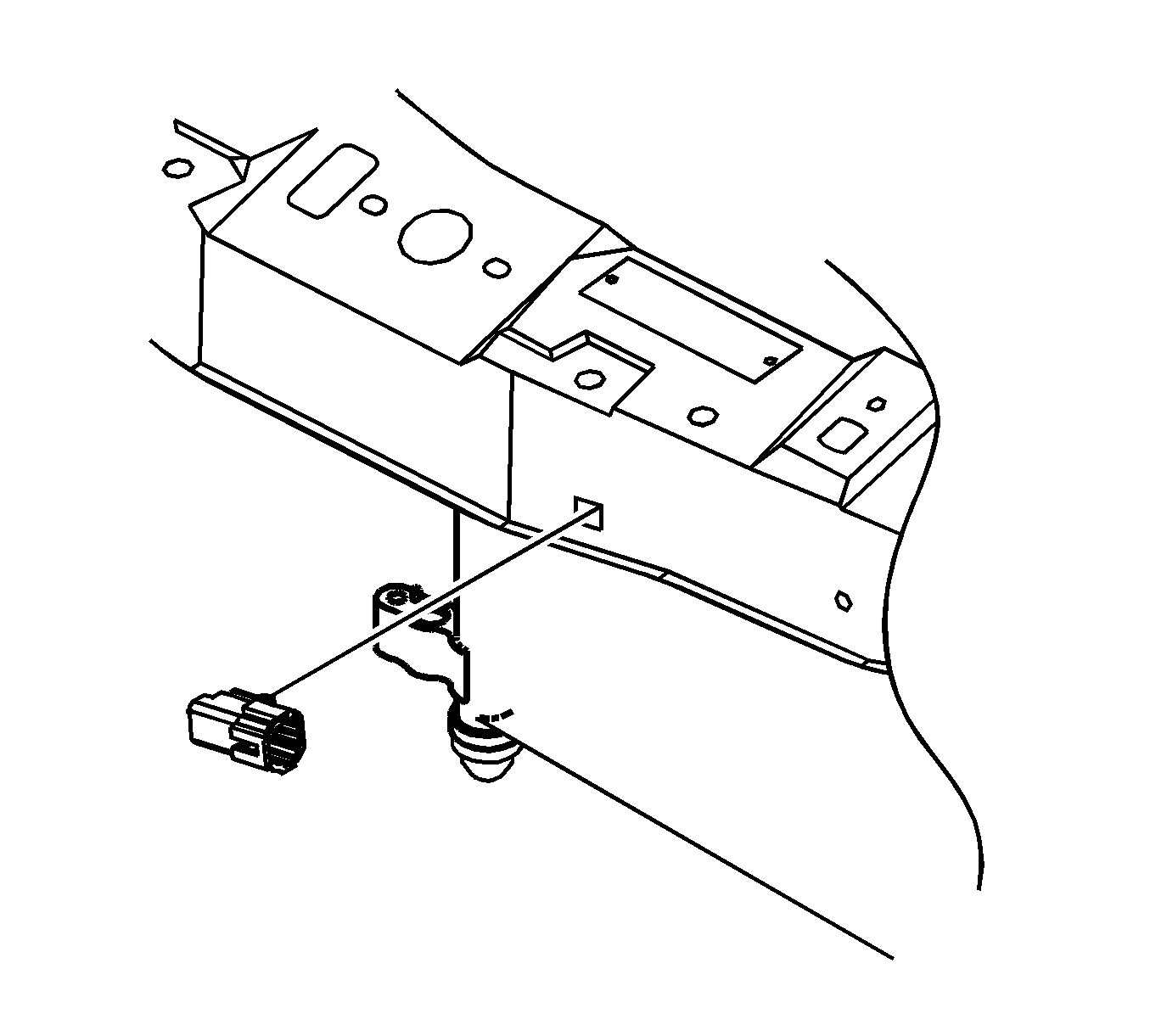

    Fig 1: Ambient Air Temperature Sensor
    GM1817429Courtesy of GENERAL MOTORS CORP.
  1. Install the ambient air temperature sensor into its bracket.
  2. Connect the electrical connector.
  3. Install the front bumper. Refer to Front Bumper Fascia Replacement (Notchback) or Front Bumper Fascia Replacement (Hatchback)
  4. Connect the negative battery cable.
