Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Remove the left headlamp assembly. Refer to Headlamp Replacement (Notchback) or Headlamp Replacement (Hatchback) .

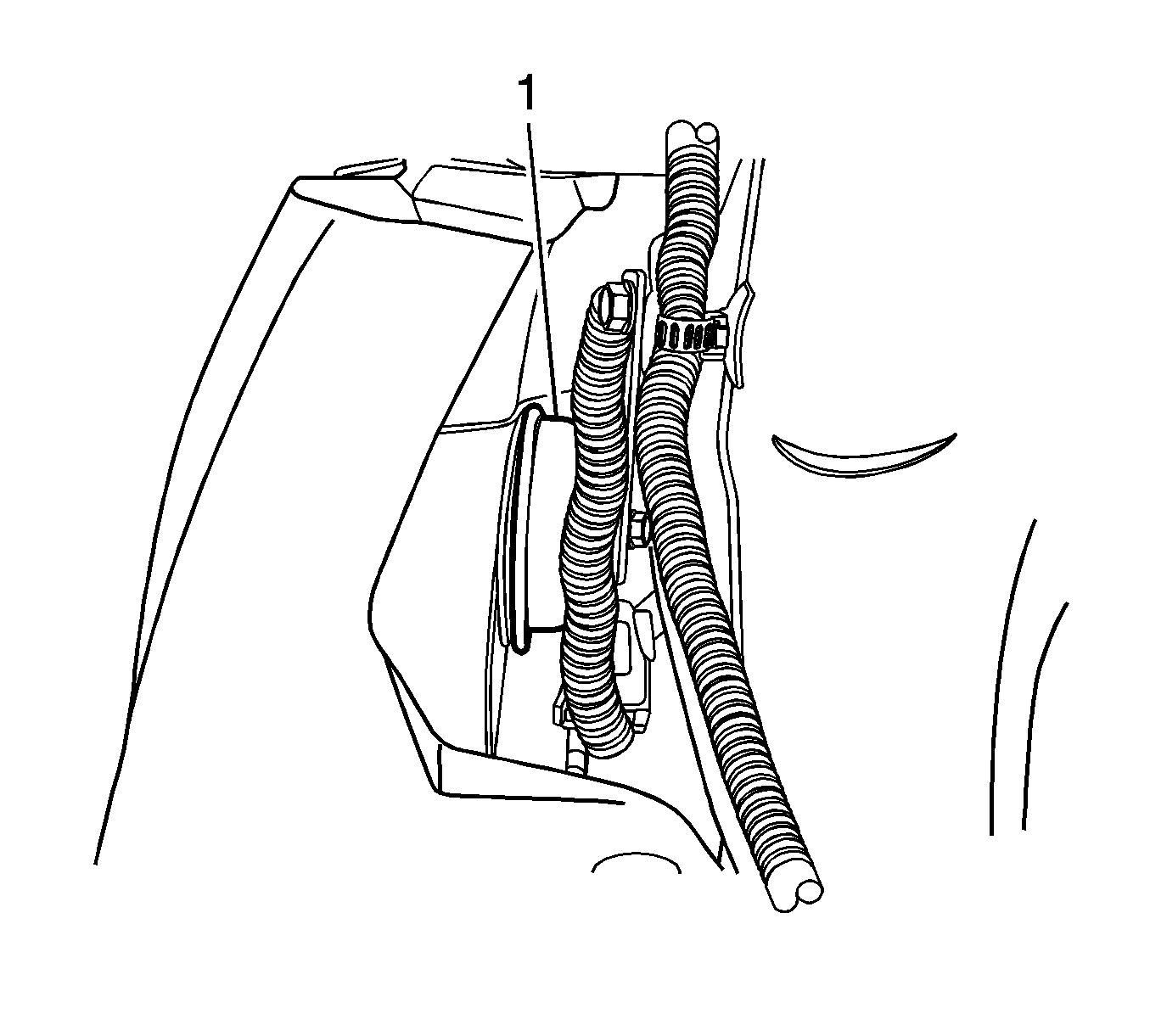

    3. Fig 1: Locating Horn
    GM1922904Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolt from the horn.
  4. Disconnect the electrical connector.
  5. Remove the horn (1).
