Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

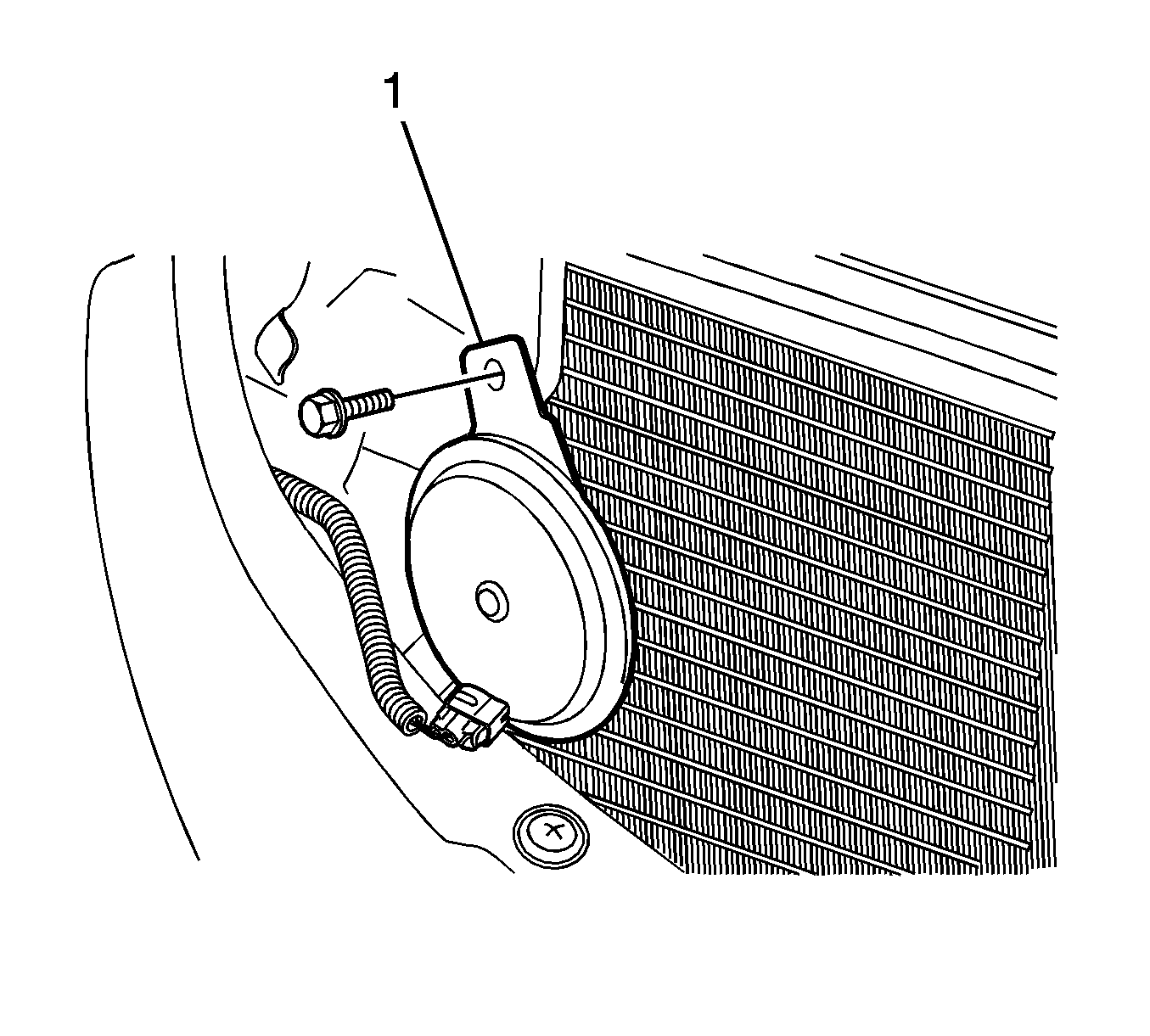

    Fig 1: View Of Horn, Connector And Mounting Bolt
    GM1844444Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Remove the fascia grille. Refer to Fascia Grille Replacement (Notchback) or Fascia Grille Replacement (Hatchback) .
  3. Remove the bolt from the horn.
  4. Disconnect the electrical connector.
  5. Remove the horn (1).
