Horn Component Views (Hatchback)

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: I/P Components Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Alarm Module
2	Ignition Key Alarm Switch
3	Defogger Switch
4	Clock/Tele Tail
5	Cluster
6	Radio
7	Tweeter Right/Left Similar
8	Cigar Lighter
9	Wiper Switch
10	Blower Switch
11	Horn Switch
12	Headlamp Switch

Fig 2: Horn Relay Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Relay

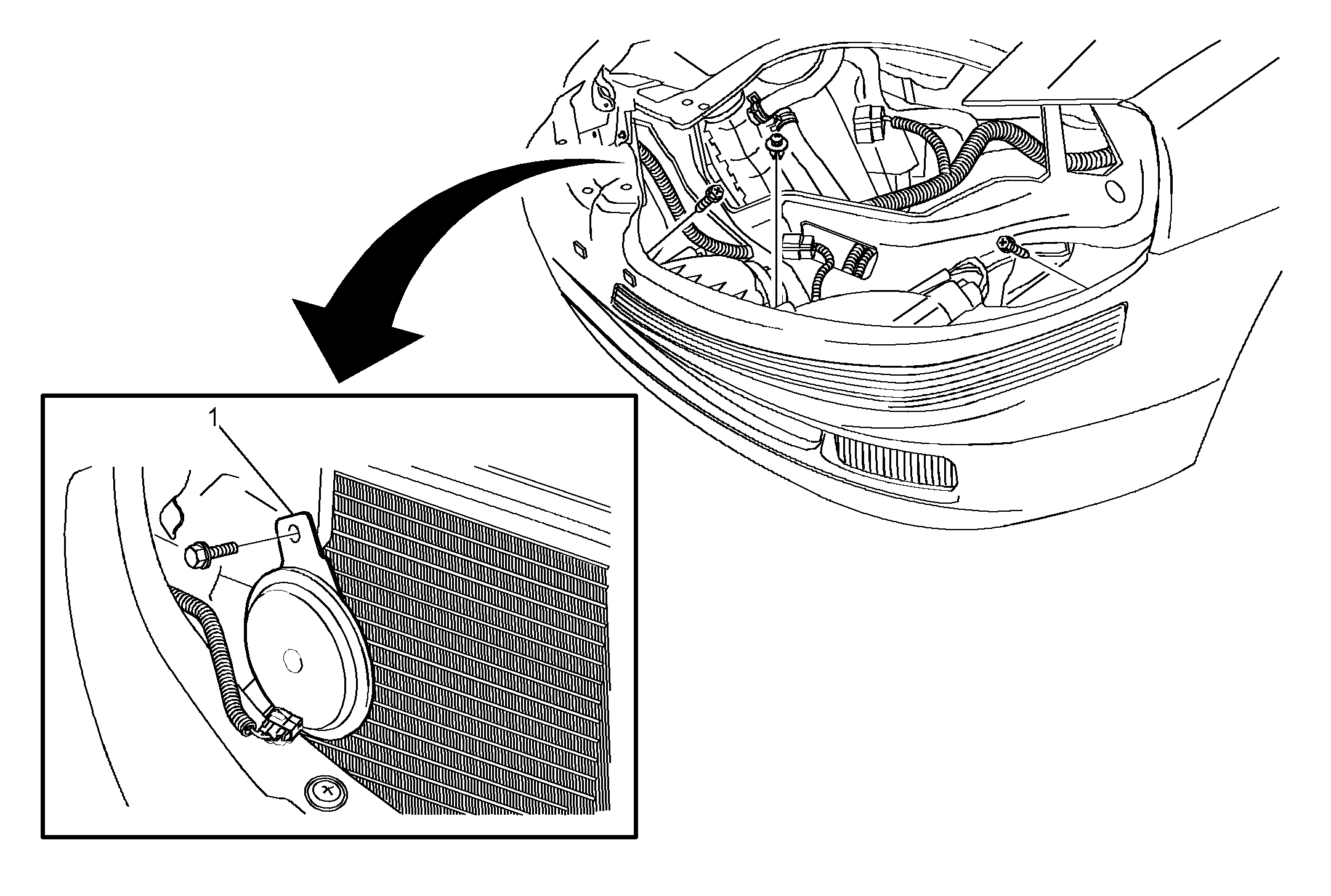

Fig 3: Horns Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn
