Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Ensure the valve stem and the tire pressure sensor are installed correctly.
  1. If you removed the tire pressure sensor, install the tire pressure sensor. Refer to Tire Pressure Indicator Sensor Replacement .

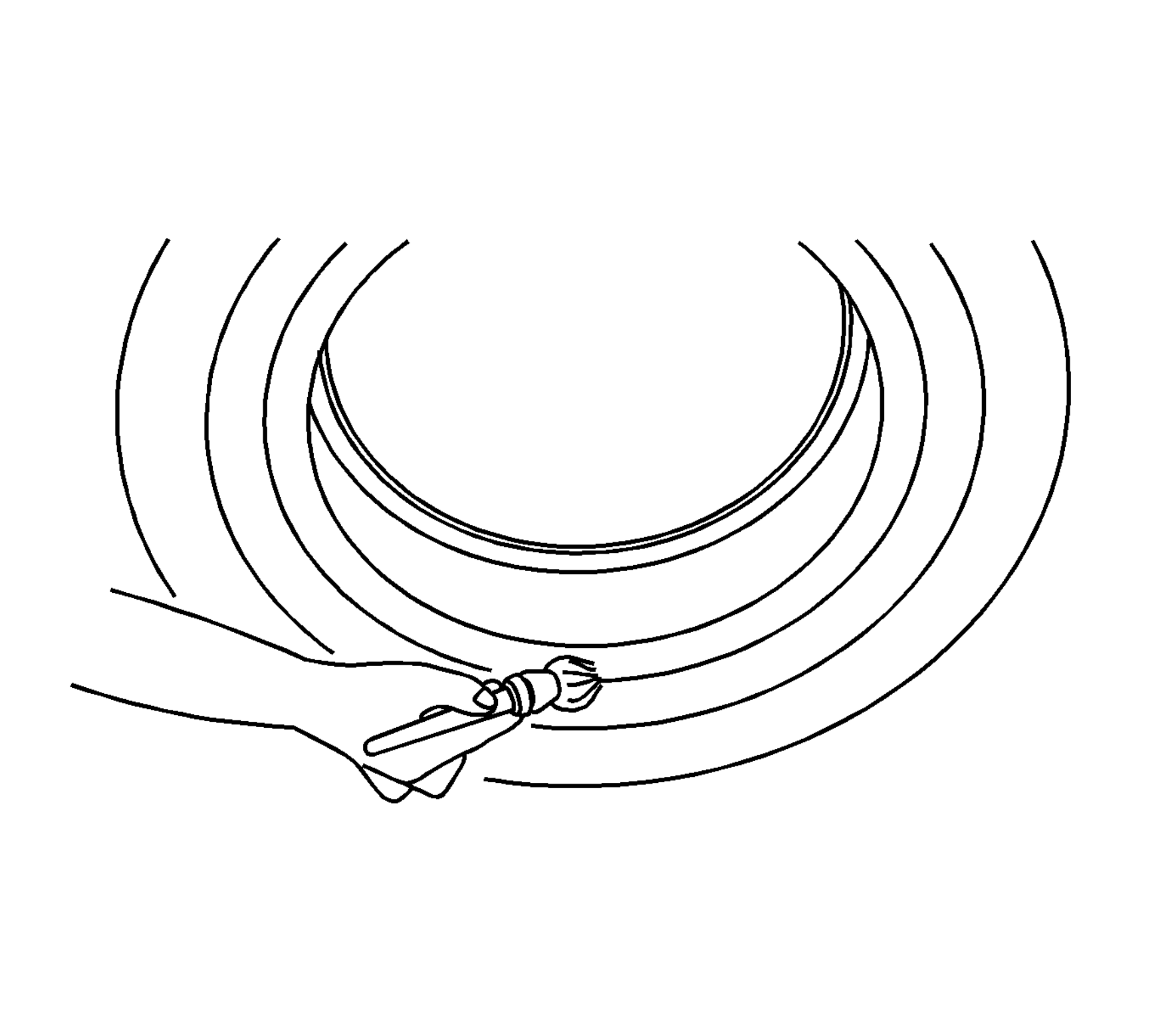

    2. Fig 1: Applying Rubber Lubricant
    GM1911621Courtesy of GENERAL MOTORS CORP.
    NOTE: When mounting the tires, use an approved tire mounting lubricant. DO NOT use silicon or corrosive base compounds to lubricate the tire bead and the wheel rim. A silicon base compound can cause the tire to slip on the rim. A corrosive type compound can cause tire or rim deterioration.
  2. Apply GM Goodwrench Rubber Lubricant, GM P/N 12345884 (Canadian P/N 5728223), or equivalent, to the tire beads and to the wheel bead seats.
    3. Fig 2: Positioning Rim
    GM1749710Courtesy of GENERAL MOTORS CORP.
  3. Position the wheel on the tire changing machine with the valve stem and the tire pressure sensor (1) at the 3 o'clock position and the head (2) at the 12 o'clock position. This will protect the tire pressure sensor.
  4. Align the high spot on the tire, marked with paint or an adhesive label, to the low spot on the wheel, which is at the valve stem.
    5. Fig 3: Using Tire Changer
    GM1749712Courtesy of GENERAL MOTORS CORP.
  5. Rotate the wheel clockwise and push down on the tire in order to move the bottom bead to the inside of the wheel rim.
    6. Fig 4: Installing Tire
    GM1749713Courtesy of GENERAL MOTORS CORP.
  6. Position the tire and the wheel with the valve stem at the 9 o'clock position and the head at the 12 o'clock position. This will protect the tire pressure sensor.
    7. Fig 5: Using Tire Changer
    GM1749714Courtesy of GENERAL MOTORS CORP.
  7. Rotate the wheel counter-clockwise and push down on the tire in order to move the top bead to the inside of the wheel rim.

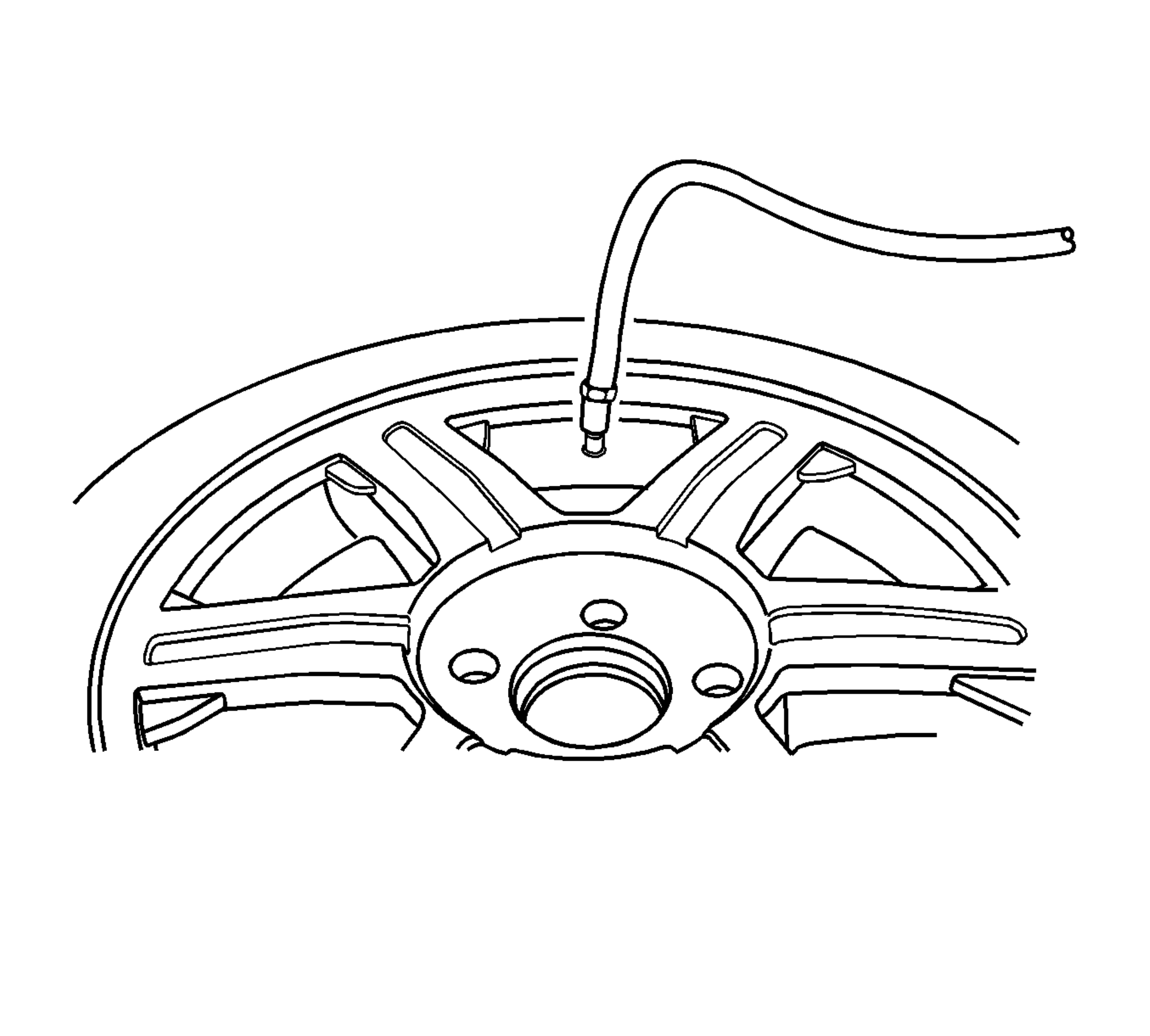

    8. Fig 6: Inflating Tire
    GM1911623Courtesy of GENERAL MOTORS CORP.
    CAUTION: To avoid serious personal injury, do not stand over tire when inflating. The bead may break when the bead snaps over the safety hump. Do not exceed 275 kPa (40 psi) pressure when inflating any tire if beads are not seated. If 275 kPa (40 psi) pressure will not seat the beads, deflate, relubricate the beads and reinflate. Overinflation may cause the bead to break and cause serious personal injury.
    IMPORTANT: Ensure the valve core is not in the valve stem.
  8. Inflate the tire until the beads pass over the bead humps.

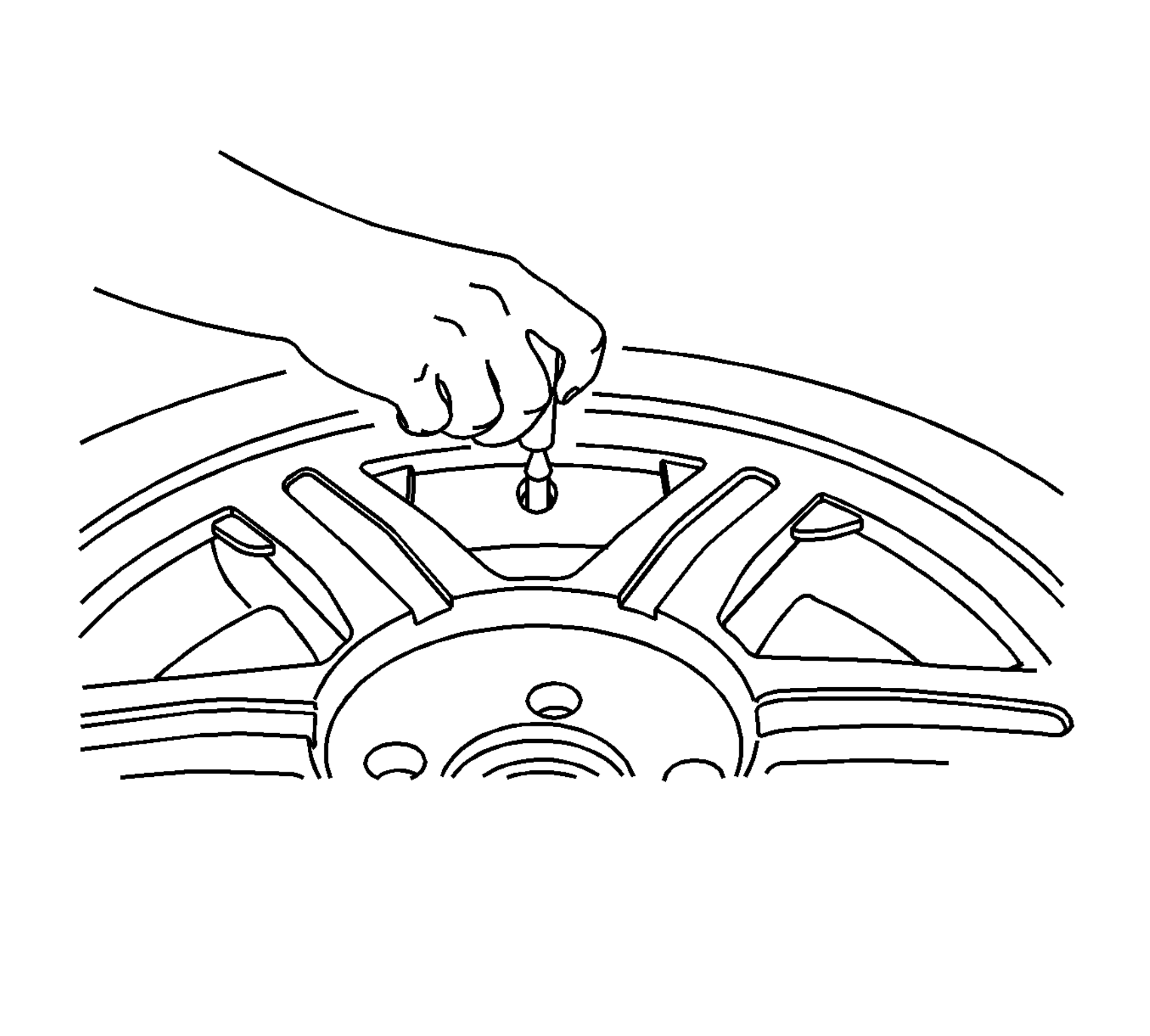

    9. Fig 7: Installing Valve Core
    GM1911624Courtesy of GENERAL MOTORS CORP.
  9. Install the valve core to the valve stem.
  10. Inflate the tire to the specification listed on the tire placard.
  11. Remove the tire and wheel assembly from the tire changing machine.
  12. Ensure the locating rings are visible on both sides of the tire in order to verify the tire beads are seated on the wheel.
  13. Install the tire and wheel assembly to the vehicle. Refer to Tire and Wheel Removal and Installation .
  14. Lower the vehicle.
