Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

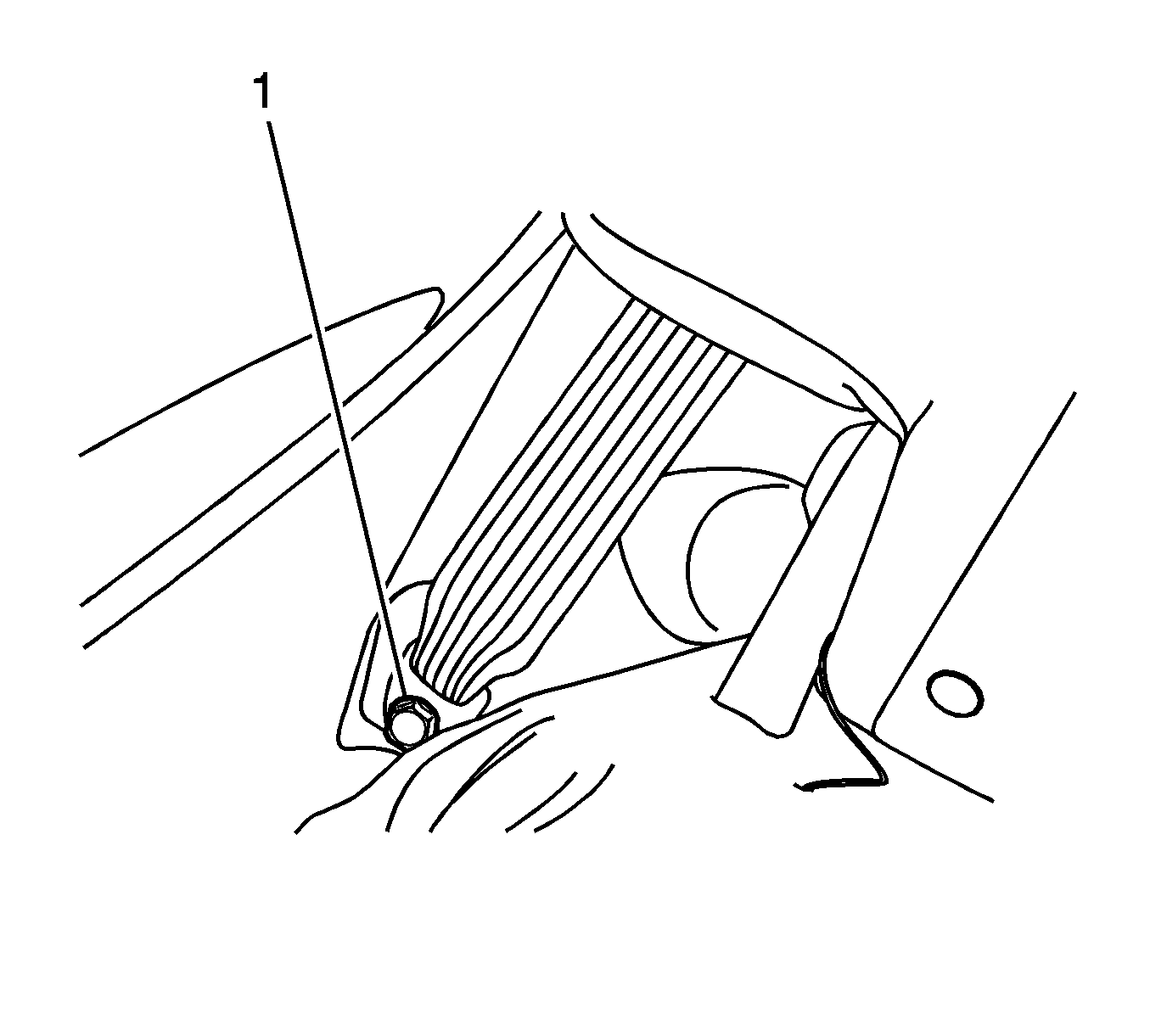

    Fig 1: Rear Seat Belt Anchor Bolt
    GM1734135Courtesy of GENERAL MOTORS CORP.
  1. Remove the bolt (1) and the seat belt anchor on the wheelhouse trim panel.

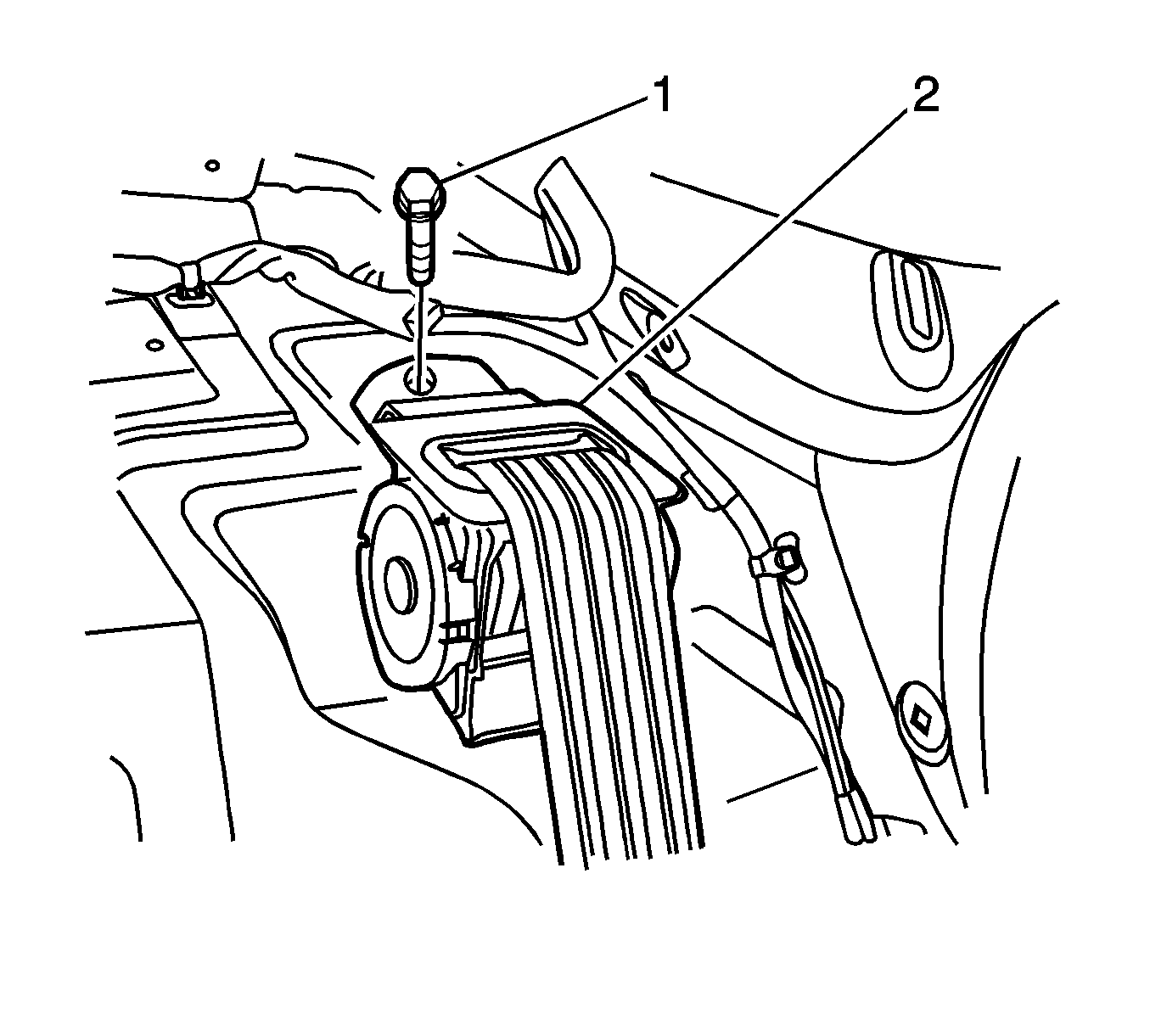

    2. Fig 2: Rear Seat Belt Retractor
    GM1734133Courtesy of GENERAL MOTORS CORP.
  2. Remove the upper back panel shelf. Refer to Rear Window Shelf Trim Panel Replacement .
  3. Remove the bolt (1) and the seat belt retractor (2).
