Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

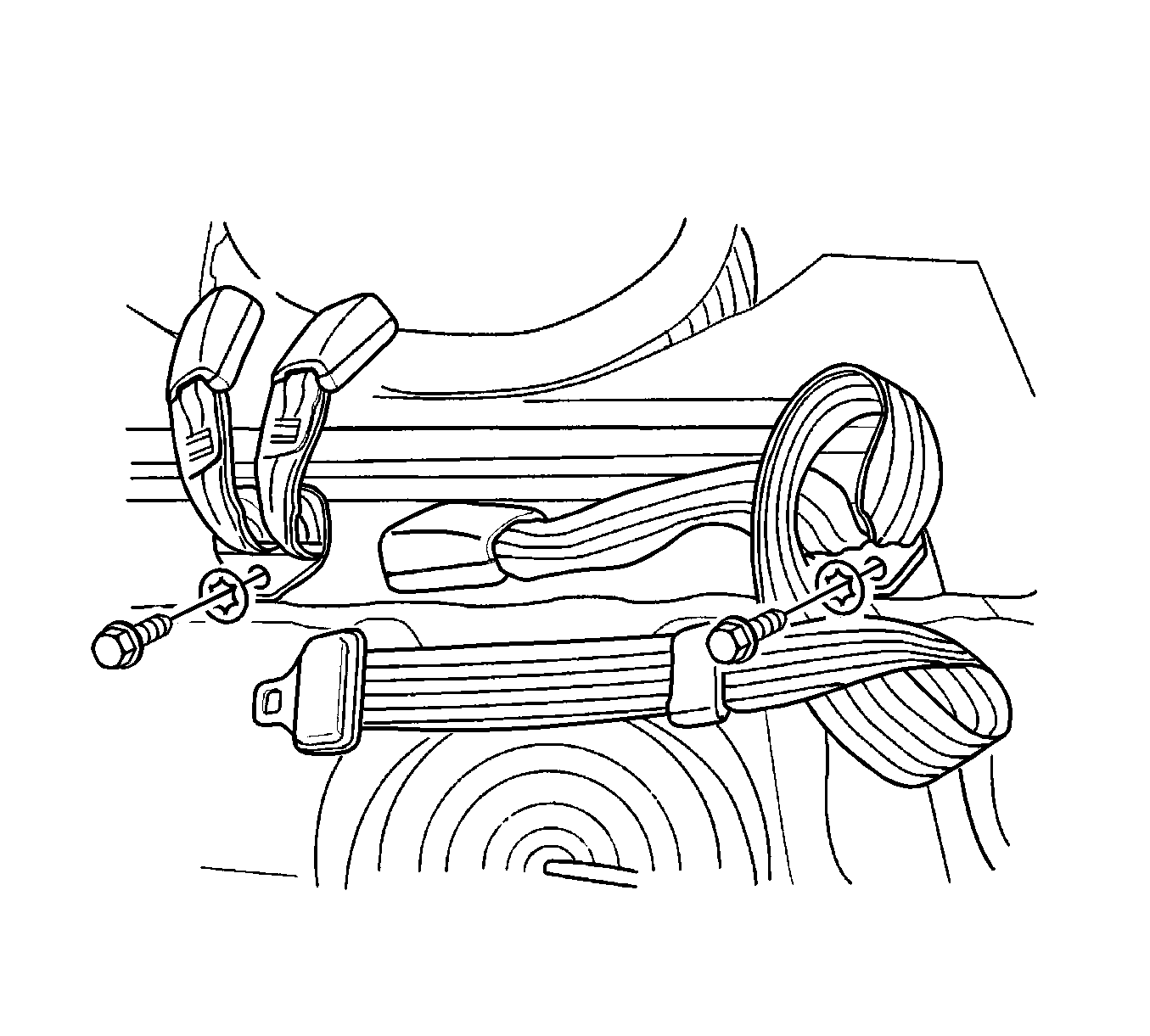

    Fig 1: Rear Seat Knob, Seat Belt Anchors & Bolts
    GM1248406Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the seat belt anchors with the bolts.

    Tighten:  Tighten the seat belt anchor bolts to 38 N.m (28 lb ft).

  2. Install the rear center seat belt retractor with the bolt.

    Tighten:  Tighten the rear center seat belt retractor bolt to 38 N.m (28 lb ft).

  3. Install the rear cargo area trim panel and unfold the rear seat.
