Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

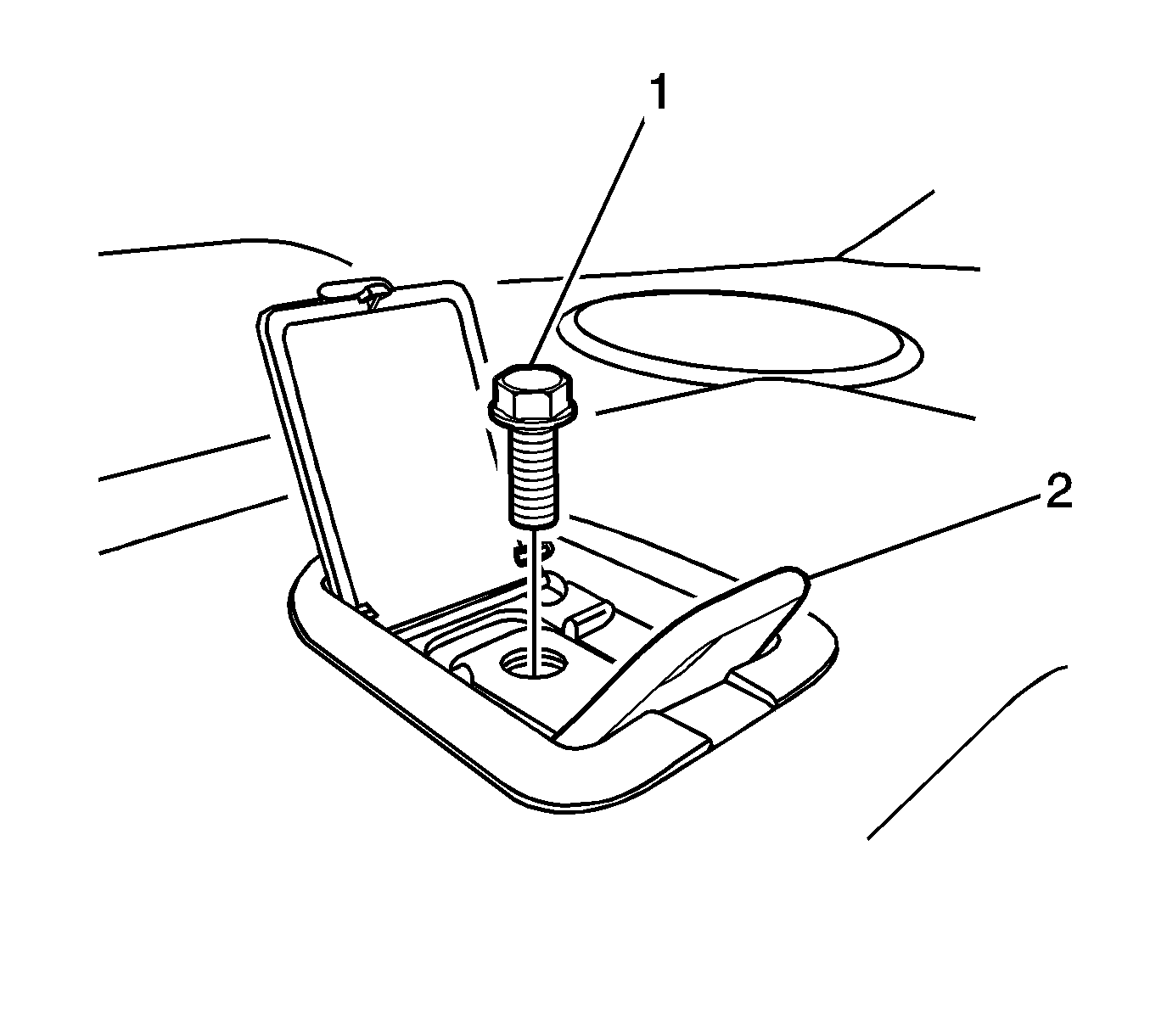

    Fig 1: Child Restraint Tether Anchor
    GM1787716Courtesy of GENERAL MOTORS CORP.
  1. Open the tether anchor cover.
  2. Remove the bolt (1) and the tether anchor (2).
