Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

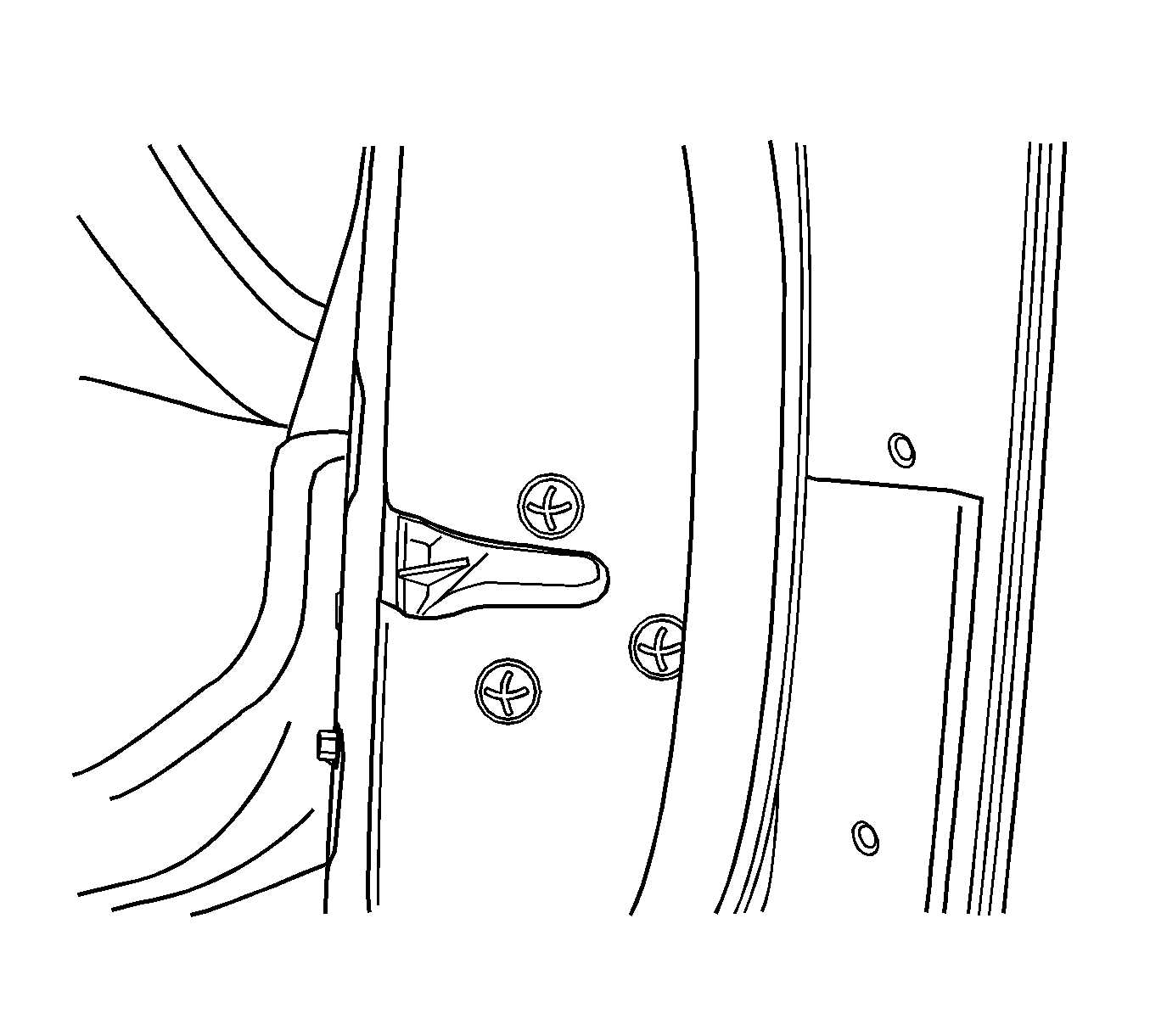

    Fig 1: View of Bolts and Guide Rail
    GM1248270Courtesy of GENERAL MOTORS CORP.
  1. Install the glass in the door.
    2. NOTE: Refer to Fastener Notice .
  2. Install the guide rail and the bolts.

    Tighten:  Tighten the guide rail bolts to 7 N.m (62 lb in).

    3. Fig 2: View of Inside Lock Rods From Door Handle and Lock
    GM1248269Courtesy of GENERAL MOTORS CORP.
  3. Install the glass to the window regulator with the screws.

    Tighten:  Tighten the door glass screws to 7 N.m (62 lb in).

  4. Install the outside channel molding. Refer to Front Side Door Window Channel Replacement .
  5. Install the door seal trim. Refer to Door Water Deflector Replacement .
  6. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Notchback) or Front Side Door Trim Panel Replacement (Hatchback) .
