Low and High Side Pressure Relationship Chart

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

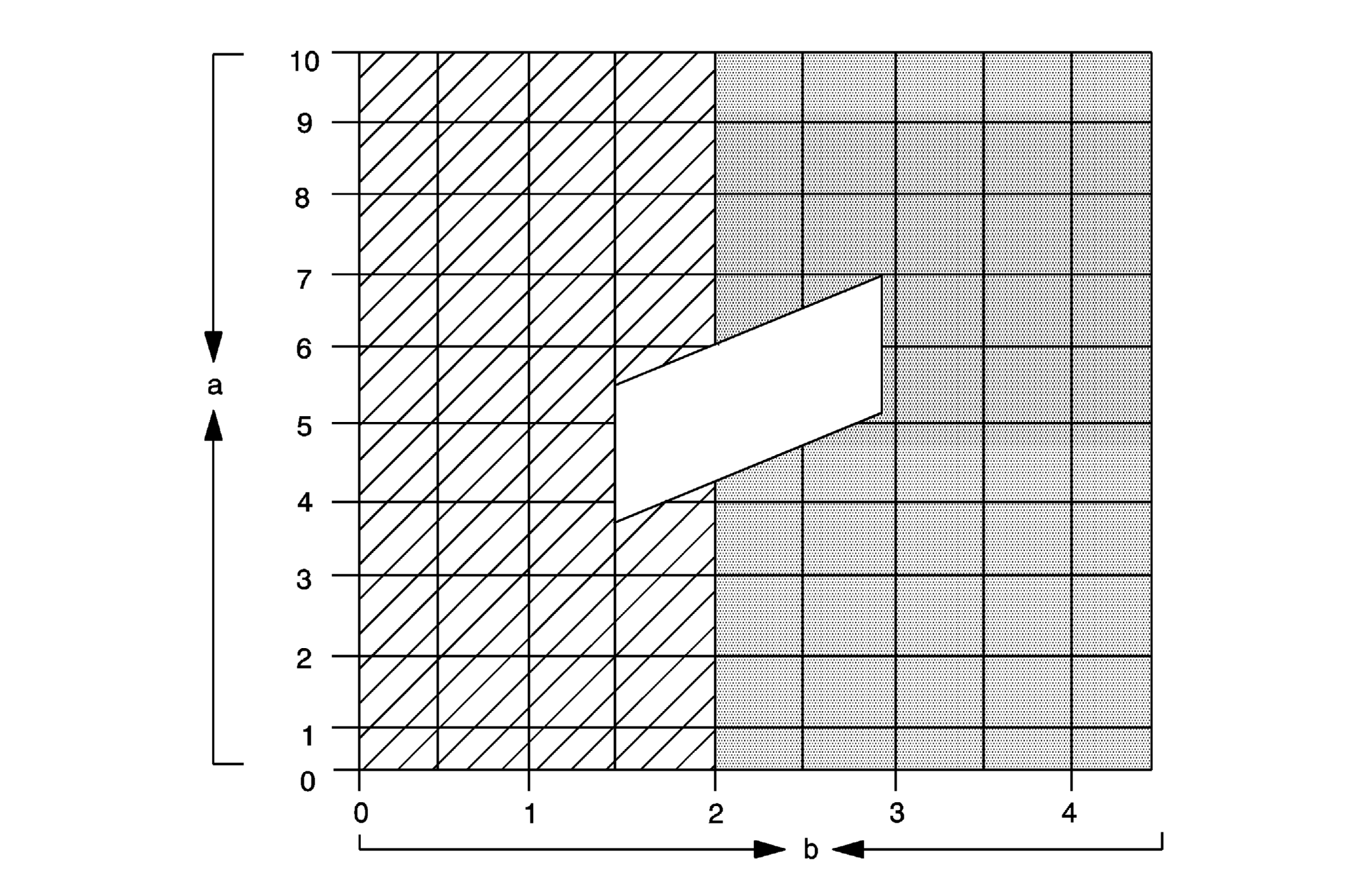

Fig 1: Low And High Side Pressure Relationship Chart

Courtesy of GENERAL MOTORS CORP.

Low Side Pressure

70 kPa (10 psi)
138 kPa (20 psi)
207 kPa (30 psi)
276 kPa (40 psi)
345 kPa (50 psi)
414 kPa (60 psi)
483 kPa (70 psi)
552 kPa (80 psi)
621 kPa (90 psi)
690 kPa (100 psi)

High Side Pressure

690 kPa (100 psi)
1379 kPa (200 psi)
2069 kPa (300 psi)
2758 kPa (400 psi)
