Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

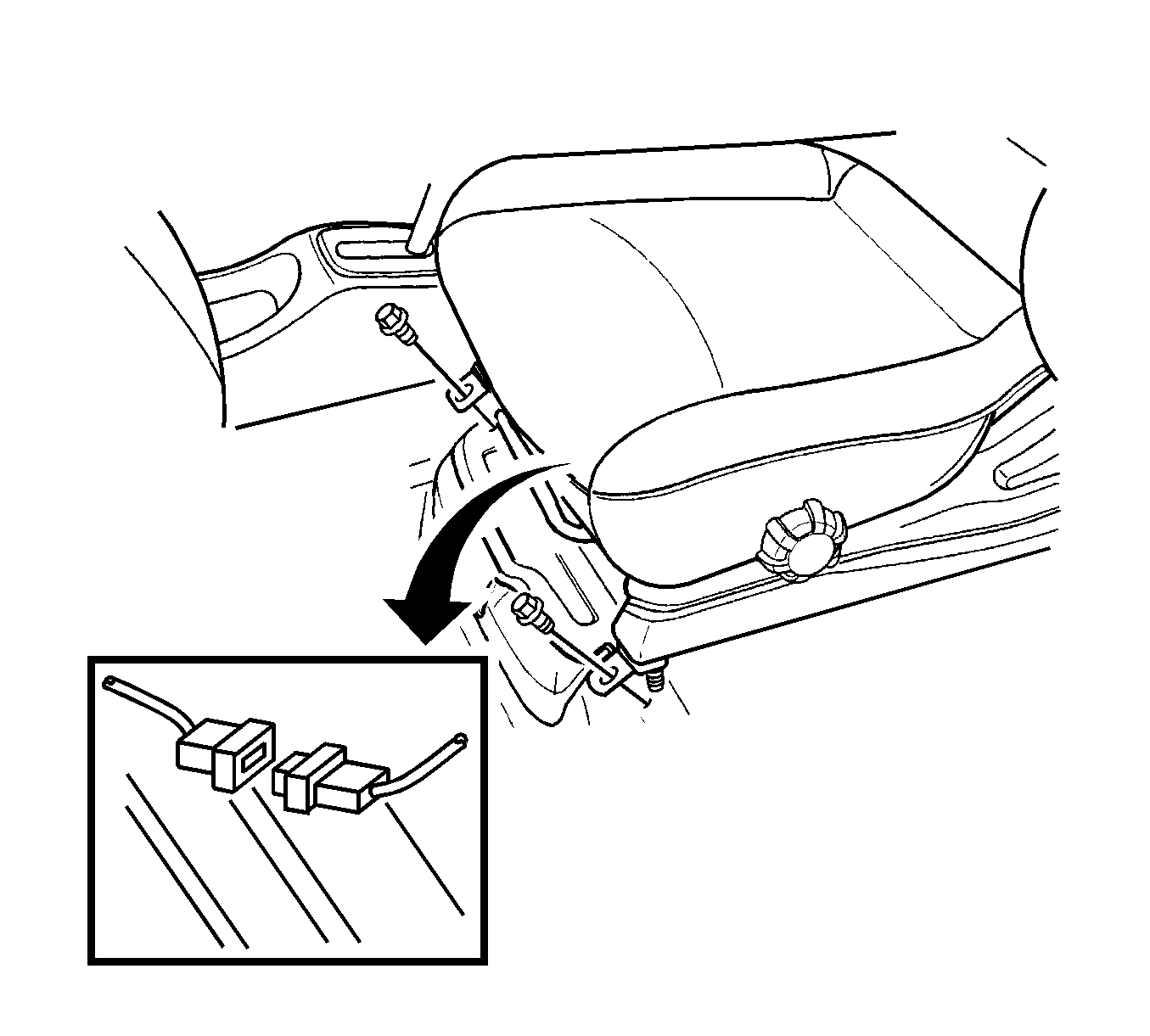

    Fig 1: View of Front Seat and Electrical Connector
    GM1248229Courtesy of GENERAL MOTORS CORP.
  1. Remove the bolts that secure the rear portion of the seat to the floor.
  2. Remove the bolts that secure the front portion of the front seat to the floor.
  3. Disconnect the electrical connector from the driver's seat.
  4. Remove the seat.
