Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

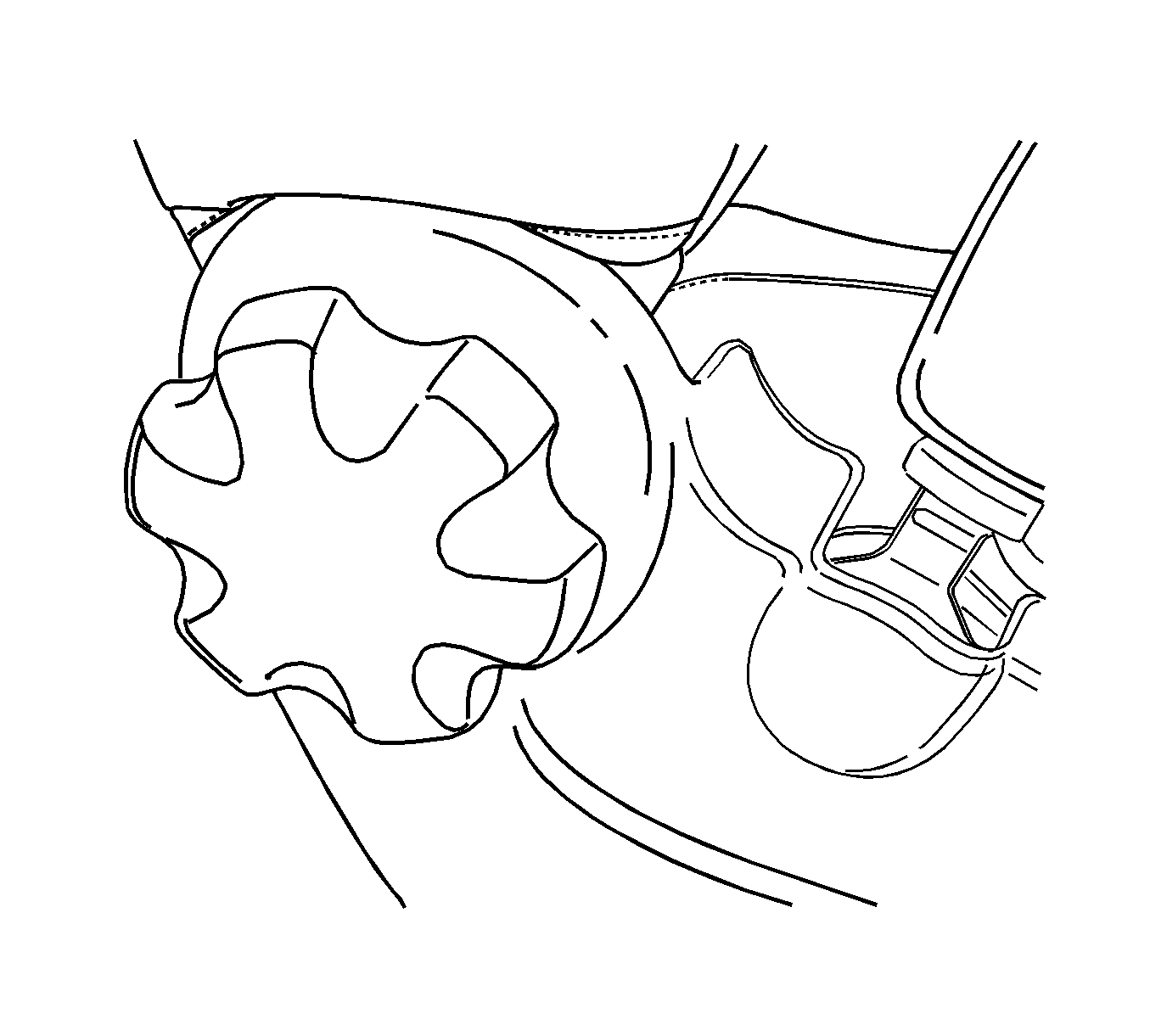

    Fig 1: View of Recliner Adjustment Knob
    GM1248233Courtesy of GENERAL MOTORS CORP.
  1. Remove the front bucket seat from the vehicle. Refer to Seat Replacement - Front Bucket  .
  2. Remove the recliner adjustment knob.

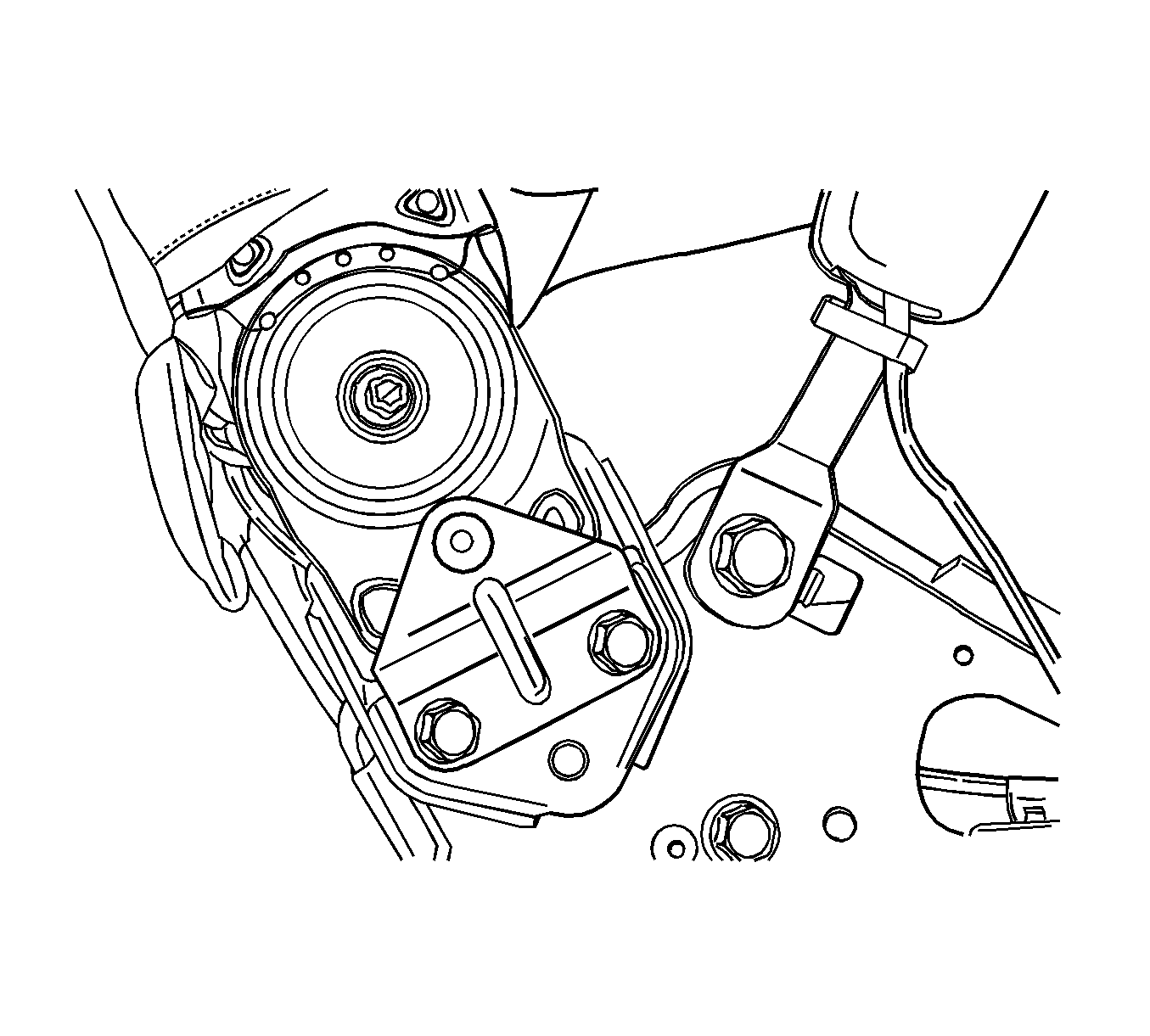

    3. Fig 2: View of Seat Back and Bolts
    GM1248235Courtesy of GENERAL MOTORS CORP.
  3. Remove the recliner cover from the front seat.
  4. Remove the seat back bolts from the seat cushion.
  5. Remove the seat back.
