Installation Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

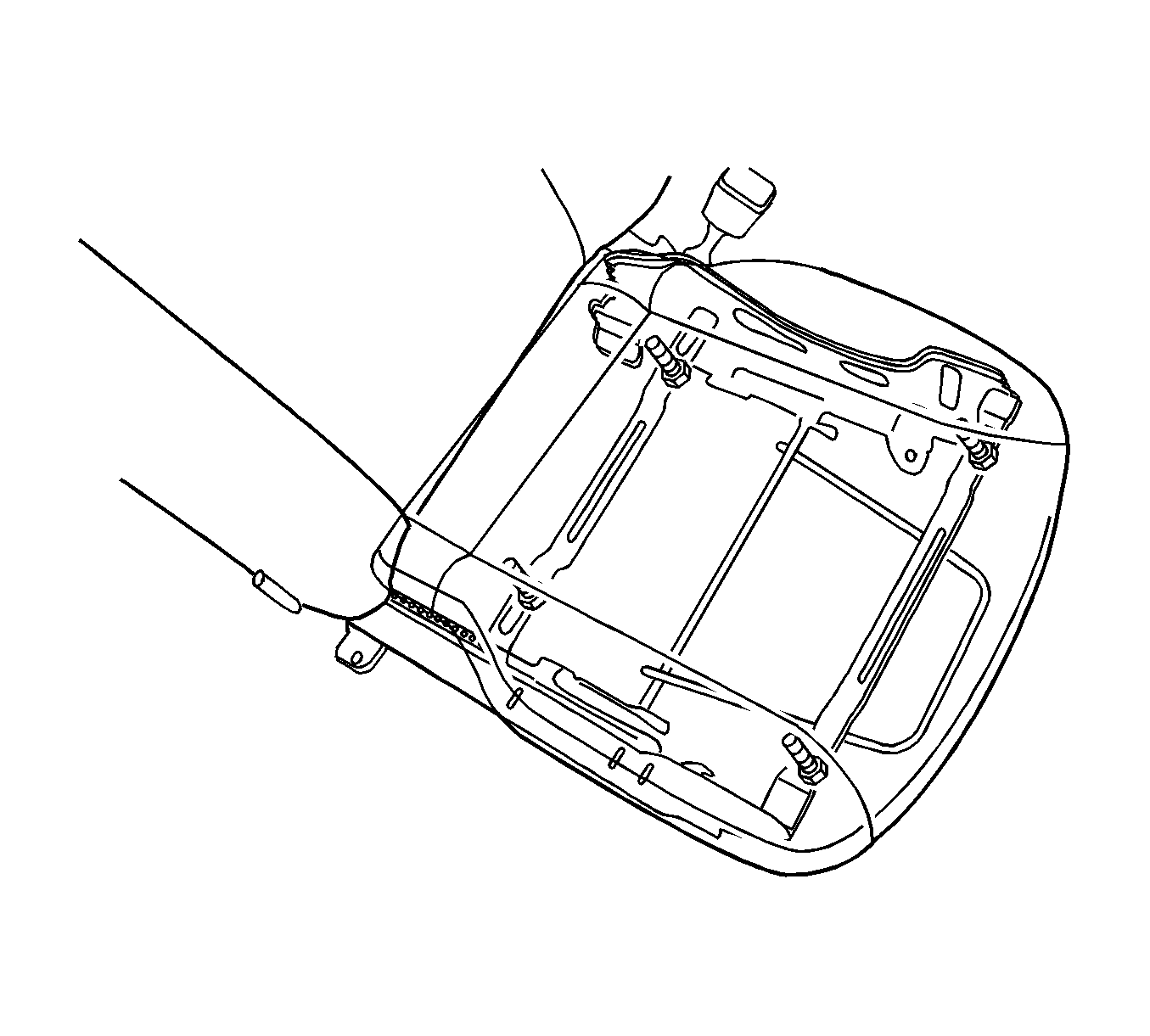

    Fig 1: View of Seat Cushion, Seat Adjuster, and Bolts
    GM1248237Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the front seat adjusters to the seat cushion with the bolts.

    Tighten:  Tighten the front seat cushion bolts to 25 N.m (18 lb ft).

  2. Install the seat back. Refer to Seat Back Replacement - Front  .
