Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View of Head Restraint Adjust and Button
    GM1248231Courtesy of GENERAL MOTORS CORP.
  1. Press the head restraint adjust button and remove the head restraint from the seat back.

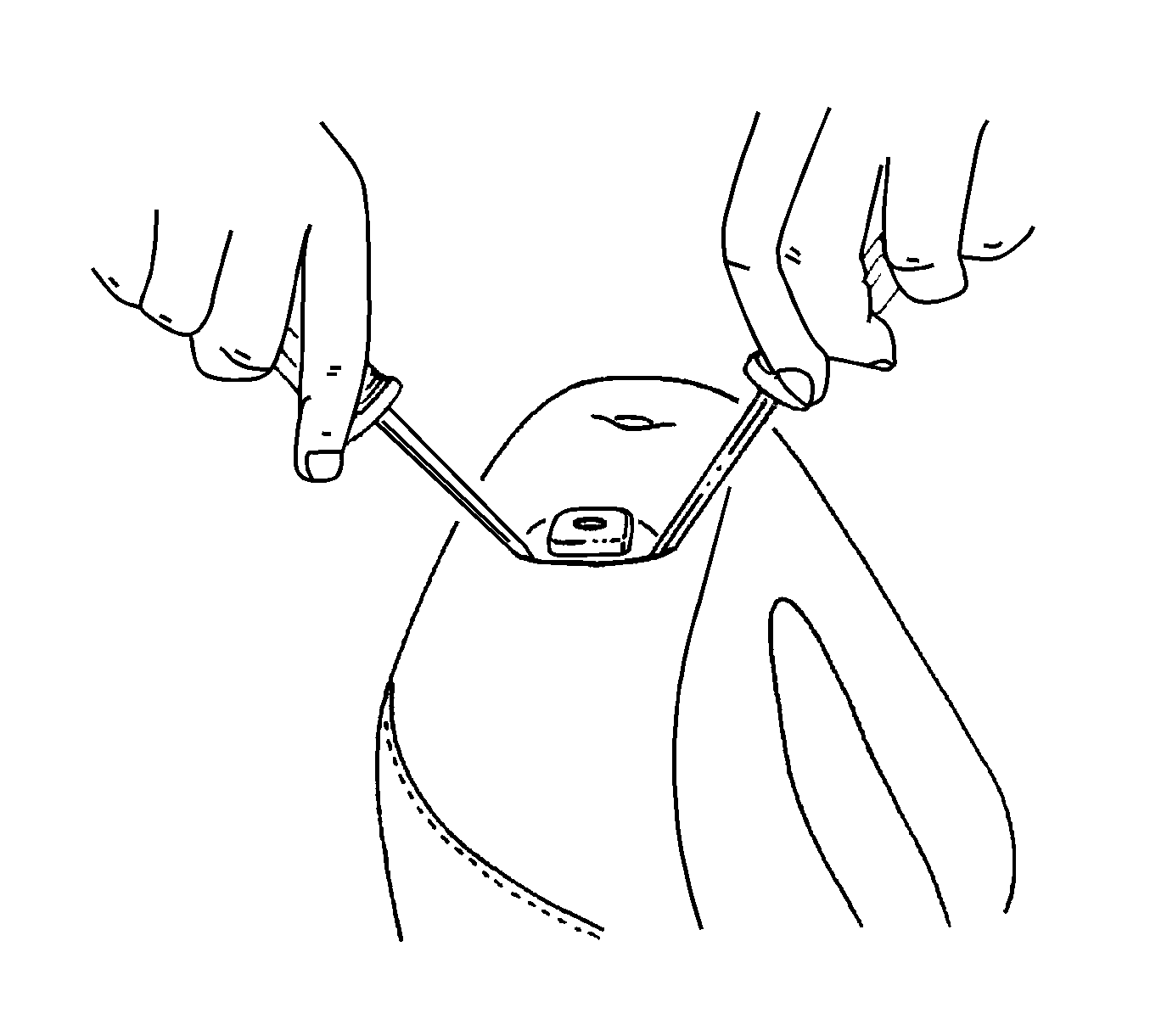

    2. Fig 2: View of Guide Sleeves with Screwdrivers
    GM1248232Courtesy of GENERAL MOTORS CORP.
  2. Insert 2 flathead screwdrivers down the front and the back side of the guide sleeves.
  3. With the screwdrivers, press in the retaining latches and remove the guide sleeves.
