Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

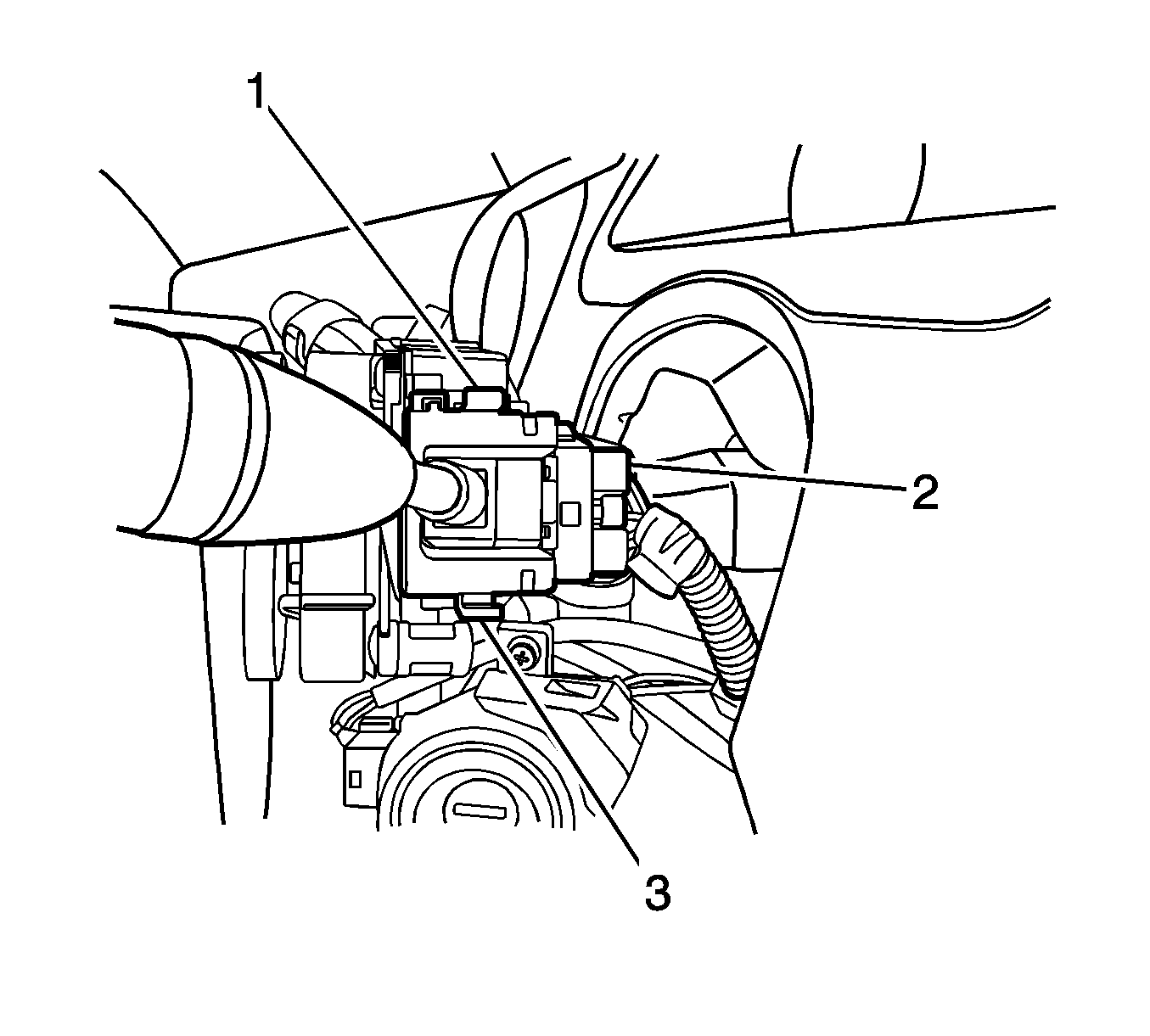

    Fig 1: Wiper Switch
    GM1715994Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector (2) to the wiper switch.
  2. Install the wiper switch into the switch housing with the tabs (1, 3) on either side of the switch housing.

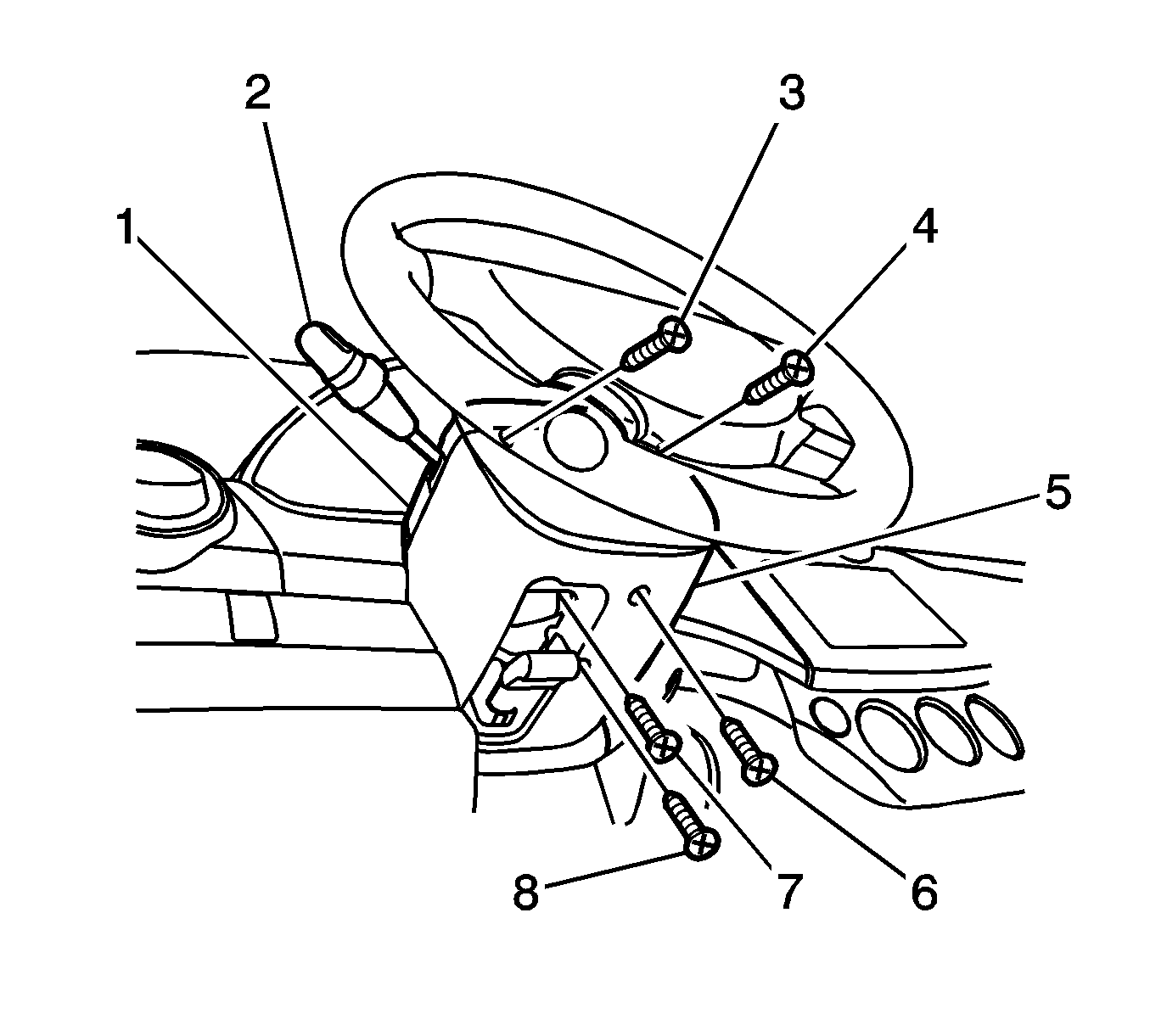

    3. Fig 2: Steering Column Panels
    GM1715979Courtesy of GENERAL MOTORS CORP.
  3. Install the upper steering column cover panel (1) and the lower steering column cover panel (5).
    4. NOTE: Refer to Fastener Notice .
  4. Install the lower steering column cover panel screws (6, 7, 8).

    Tighten:  Tighten the lower steering column cover panel screws to 3 N.m (27 lb in).

  5. Turn the steering wheel in order to access the upper steering column cover panel screw holes. Install the upper steering column cover panel screws (3, 4).

    Tighten:  Tighten the upper steering column cover panel screws to 3 N.m (27 lb in).

  6. Connect the negative battery cable.
